Preparation for Use
- System Connections -
„

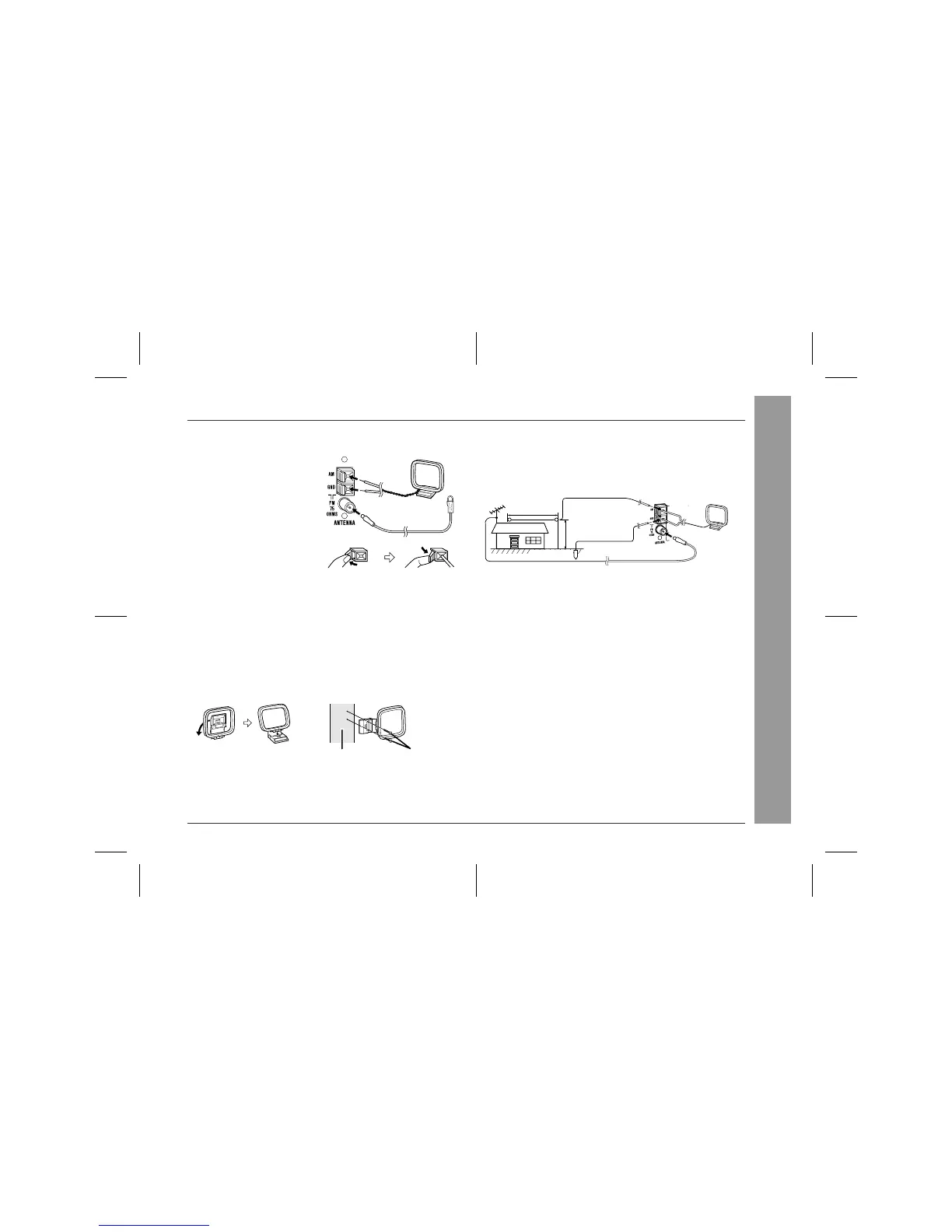

Antenna connection
Notes:
z
Placing the antenna on the unit or near the AC power cord may
cause noise pickup. Place the antenna away from the unit for bet-
ter reception.
z
When static is still heard even after adjusting the position of the
AM loop antenna, try reversing the wire connections.
Installing the AM loop antenna:
Outdoor FM or AM antenna:
Use an outdoor FM or AM antenna if you require better reception.
Consult your dealer.
Notes:
z
When an outdoor FM antenna is used, disconnect the supplied
FM antenna wire from the FM 75 OHMS jack.
z
When using an outdoor AM antenna, be sure to keep the wire of
the AM loop antenna connected.
Supplied FM antenna:
Connect the FM antenna wire to
the FM 75 OHMS jack and posi-
tion the FM antenna wire in the di-
rection where the strongest signal
can be received.
Supplied AM loop antenna:
Connect the AM loop antenna
wire to the AM and GND termi-
nals. Position the AM loop anten-
na for optimum reception. Place
the AM loop antenna on a shelf,
etc., or attach it to a stand or a wall
with screws (not supplied).
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
Outdoor
FM antenna
Outdoor AM antenna
49 feet (15 m)
25 feet (7.5 m)
AM loop antenna
Ground rod
