Preparation for Use
- System Connections -
System Connections (continued)
„

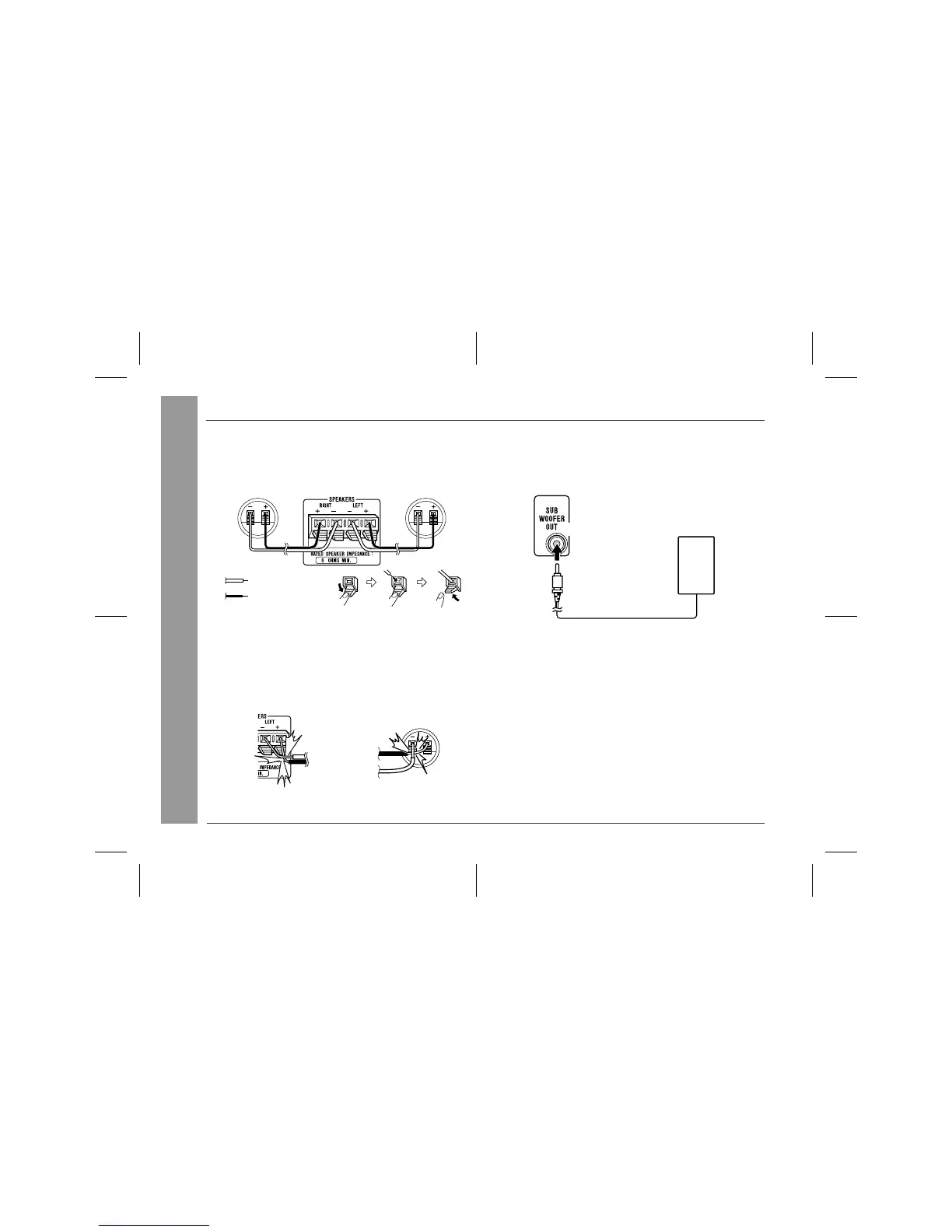

Speaker connection
Connect the wire with the white line to the minus (-) terminal and the
black wire to the plus (+) terminal.
Caution:
z
Connect the speaker wires to the speakers first, then to the
unit.
z
Use speakers with an impedance of 6 ohms or more, as lower
impedance speakers can damage the unit.
z
Do not mistake the right and the left channels. The right speaker
is the one on the right side when you face the unit.
z
Do not let the bare speaker wires touch each other.
„
Subwoofer connection
When a commercially available speaker with a built-in amplifier is
connected to this unit, you can enjoy sound with emphasized bass.
Connect an RCA cord from a commercially available speaker with a
built-in amplifier to the SUBWOOFER OUT jack.
„
Connecting the AC power cord
After checking all the connections have been made correctly, con-
nect the AC power cord to the AC power input jack, then plug the AC
power cord of this unit into the AC outlet.
Notes:
z
Unplug the unit if it will not be used for a prolonged period of time.
z
Never use a power cord other than the one supplied. Otherwise,
a malfunction or an accident may occur.
Right speaker Left speaker
Incorrect Incorrect
Black
White line
To Next Page
