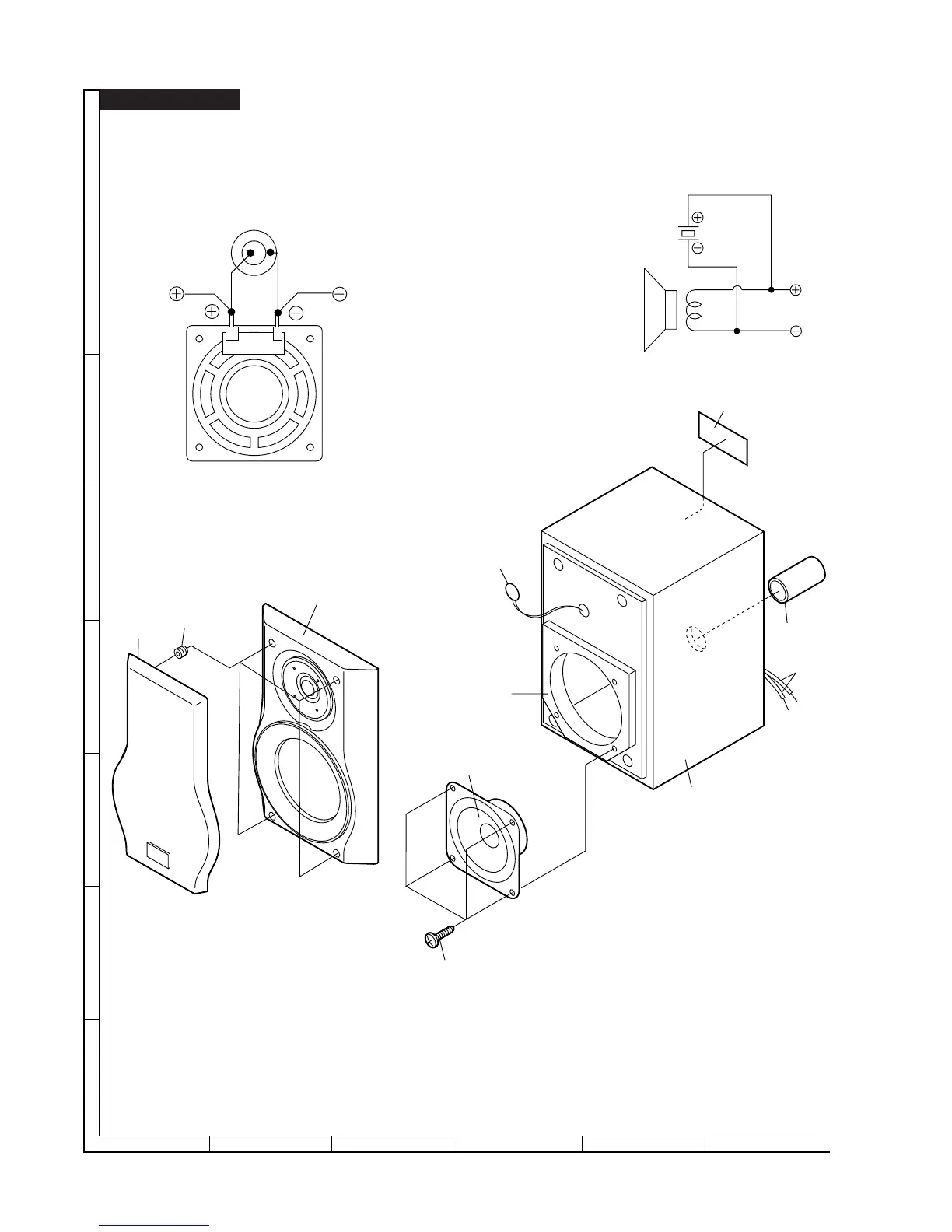

Figure 9 SPEAKER EXPLODED VIEW (1/2)
A
B
C
D
E
F
G
H
1
23456
CP-XL60H
706
708
705
701
709x4
702
SP601(L-CH)
SP602(R-CH)
SP603(L-CH)
SP604(R-CH)
707x4
703
704
TWEETER
SP603(L-CH)
SP604(R-CH)
WOOFER
SP601(L-CH)
SP602(R-CH)
BLACK WITH WHITE LINE
BLACK
RED
BLACK
TWEETER
SP603(L-CH)
SP604(R-CH)
WOOFER
SP601(L-CH)
SP602(R-CH)
