Sharp XL-60H Service Manual

– 7 –
XL-60H/70H

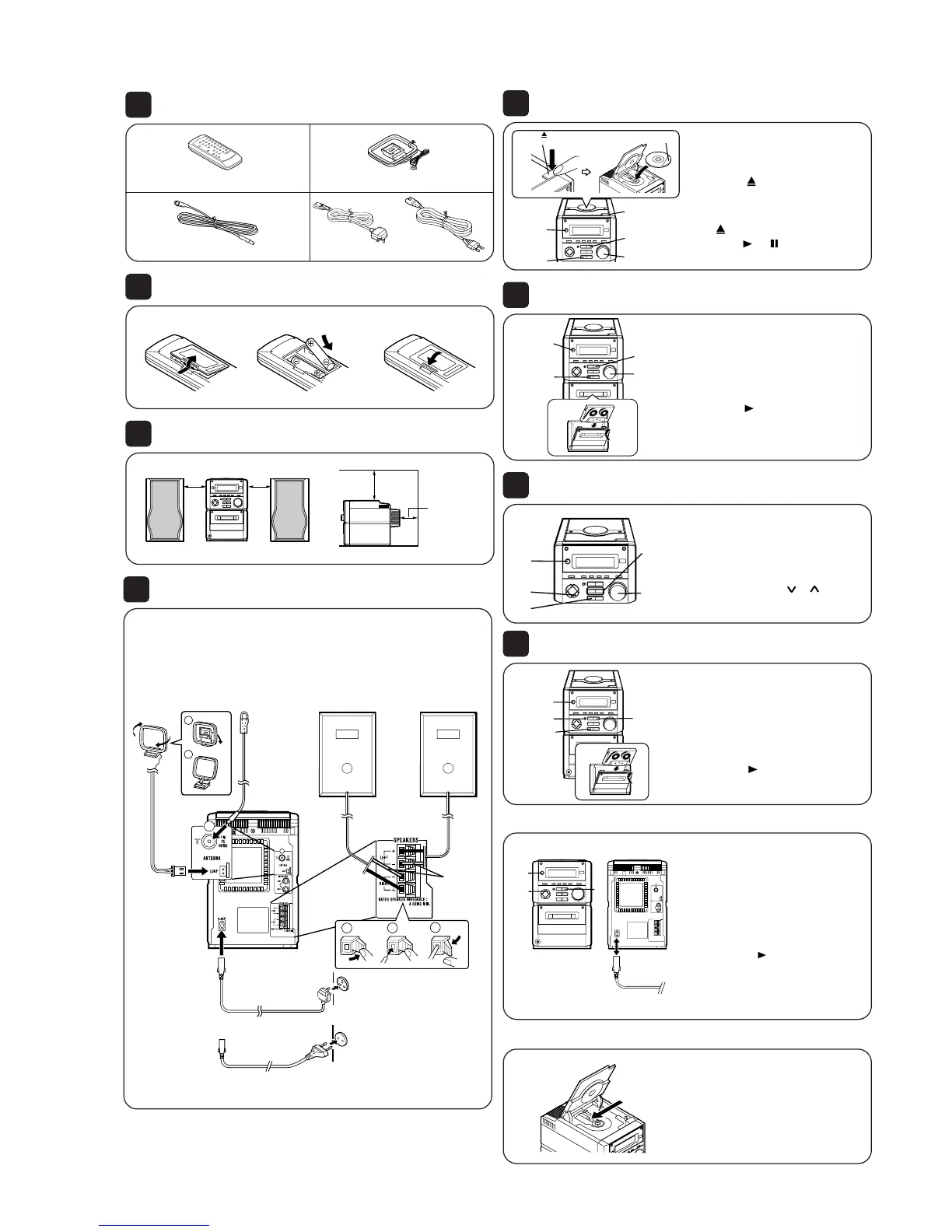

Placing the system
10 cm (4")
10 cm (4")
20 cm (8")
10 cm (4")
3
2
Putting batteries into the remote control
1Remove the battery
cover.
● 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar)
1
Check the supplied accessories
FM aerial × 1
Remote control × 1
AC power lead × 1
AM loop aerial ×1
2 Insert the batteries.
3 Replace the battery
cover.
(For U.K.)
(For Europe)
4
Connections
1
2
2
1
3
1 Connect the AM and FM aerials.
2 Connect the speaker system.
FM aerial
AM loop
aerial
AC 230 V, 50 Hz
3 Connect the AC power lead.
White line
Right speaker
Left speaker
AC 230 V, 50 Hz
(For U.K.)
(For Europe)
6
Listening to a tape
3
2
1
4
5
1
2
5
3
4
1
2
6
4
3
OPEN/CLOSE
Label side up
7
5
1 Press the ON/STAND-BY button to turn
the power on.
2 Press the FUNCTION button until “FM”
or “AM” appears.
3 Press the BAND button to select FM ST,
FM or AM.
4 Press the TUNING ( or ) button to
tune into a station.
5 Adjust the VOLUME control.
1 Press the ON/STAND-BY button to turn
the power on.
2 Press the FUNCTION button until “CD”
or “NO DISC” appears.
3 Press the OPEN/CLOSE button to
open the CD compartment.
4 Place a CD on the spindle.
5 Close the CD compartment by pushing
the OPEN/CLOSE button.
6 Press the /CD button.
7 Adjust the VOLUME control.
5
Listening to a CD
Listening to the radio
7
1 Press the ON/STAND-BY button to turn
the power on.
2 Press the FUNCTION button until
“TAPE” appears.
3 Load a cassette.
4 Press the button.
5 Adjust the VOLUME control.
8
Recording from a CD
1 Press the ON/STAND-BY button to
turn the power on.
2 Press the FUNCTION button until
“CD” or “NO DISC” appears.
3 Load a CD and a recordable
cassette.
4 Press the REC PAUSE button.
5 Press the button.
1
3
2,3
AC INPUT
3
● Do not touch the laser pickup lens. If fingerprints
or dust accumulate on the pickup, clean it gently
with a dry cotton swab.
● CD pickup cleaning
If this product is subjected to strong external inter-
ference (mechanical shock, excessive static elec-
tricity, abnormal supply voltage due to lightning,
etc.) or if it is operated incorrectly, it may malfunc-
tion or the display may not function correctly. If such
a problem occurs, do the following:
1 Press the ON/STAND-BY button to enter the
stand-by mode.
2 Unplug the AC power lead from the AC IN-
PUT socket on this unit.
3 Whilst pressing down the MEMORY/SET
button and the button, plug the AC power
lead into the AC INPUT socket on this unit.
Caution:
● The operation explained above will erase all data
stored in memory, such as clock and timer set-
tings, and tuner and CD presets.
● Resetting the micro computer
1
2
5
3
4
