Sharp XL-60H

– 9 –
XL-60H/70H

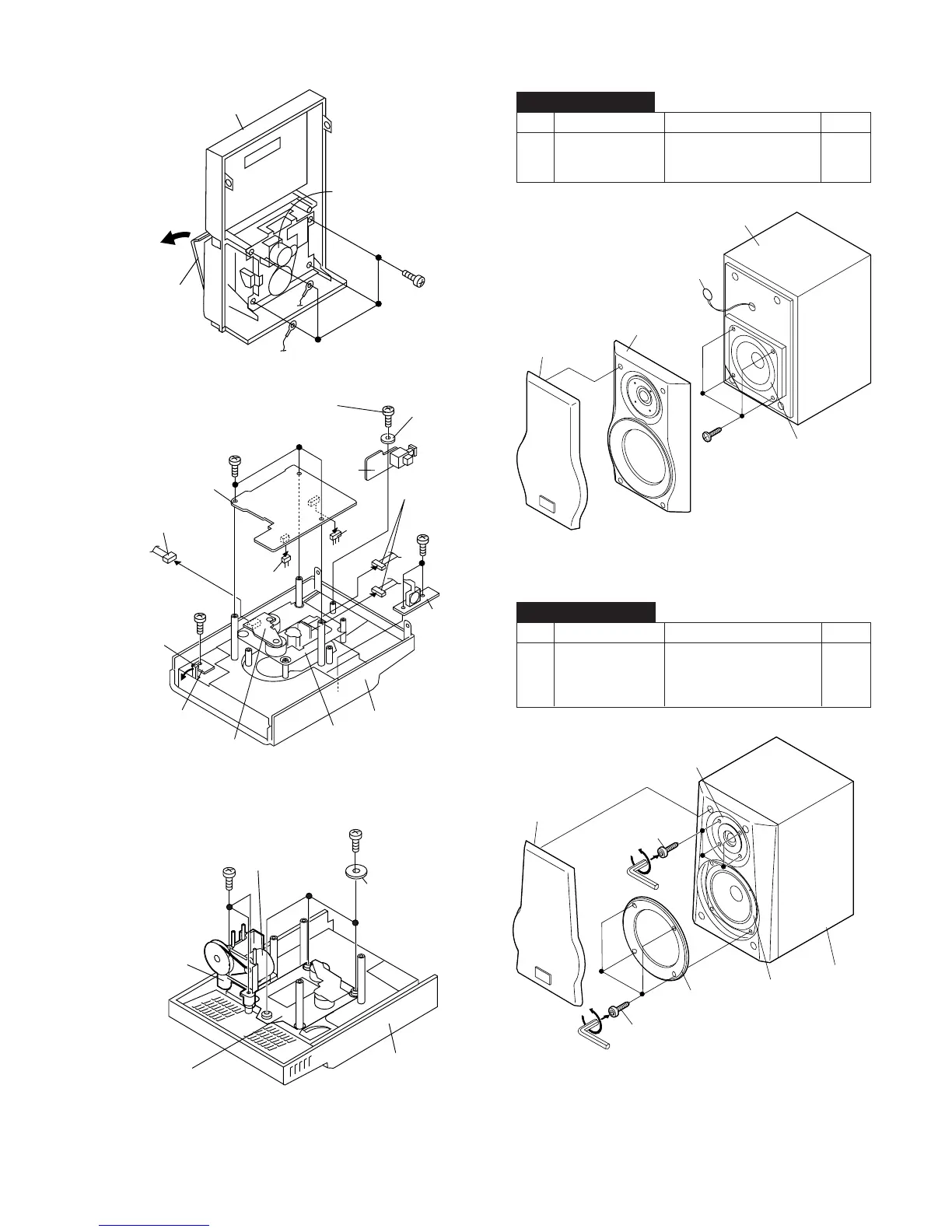

Figure 9-1
Figure 9-2
Figure 9-3
1 Speaker 1. Net Frame ........... (A1) x1 9-4
2. Front panel .......... (A2) x1
3. Screw .................. (A3) x4
STEP REMOVAL
PROCEDURE
FIGURE
CP-XL60H
Figure 9-4
(A1)x1
(A2)x1
Woofer
Tweeter
(A3)x4
ø4x20mm
Speaker Box
Figure 9-5
1 Speaker 1. Net Frame ........... (A1) x1 9-5
2. Screw .................. (A2) x4
2. Woofer Ring ........ (A3) x1
4. Screw .................. (A4) x4
STEP REMOVAL
PROCEDURE
FIGURE
CP-XL70H
Tape
Mechanism
Open
(K1)x4
ø2.5x10mm
Front Panel
Cassette
Holder
(L1)x3
ø2.5x14mm
(L1)x2
ø2.5x8mm
(M2)x1
ø2.5x10mm
(L1)x1
ø2.5x10mm
(L2)x1
(L2)x1
(L2)x2
Top Cabinet
CD PWB
Open/Close
Switch PWB
CD Motor PWB
CD Mechanism
PWB
Washer
Digital
Out
PWB
CD Lid
PWB
(M1)x1
(L3)x1
CD Mechanism
CD Lid
Motor
CD Lid
Motor
Holder
(N2)x3
ø2.5x10mm
(N1)x3
ø2.5x14mm
PWB
Washer x3
Top Cabinet
(A1)x1
(A3)x1
(A4)x4
ø3x12mm
Woofer
Tweeter
(A2)x4
ø4x20mm
Speaker Box
