CHAPTER 3. MECHANICAL DESCRIPTION
[1] REMOVING AND REINSTALLING THE MAIN PARTS
1. How to remove DVD/CD Disc manually (See Fig. 1,2)
Perform steps 1 to 7 of the disassembly method to remove the DVD
Changer unit.(see page 3-2,3-3)
1. Rotate the gear cam until the arm switch C becomes the position of
the Figure 1.
2. Pull the drawer to the front like the Figure 2.
And the DVD/CD disc on the carriage is taken out.

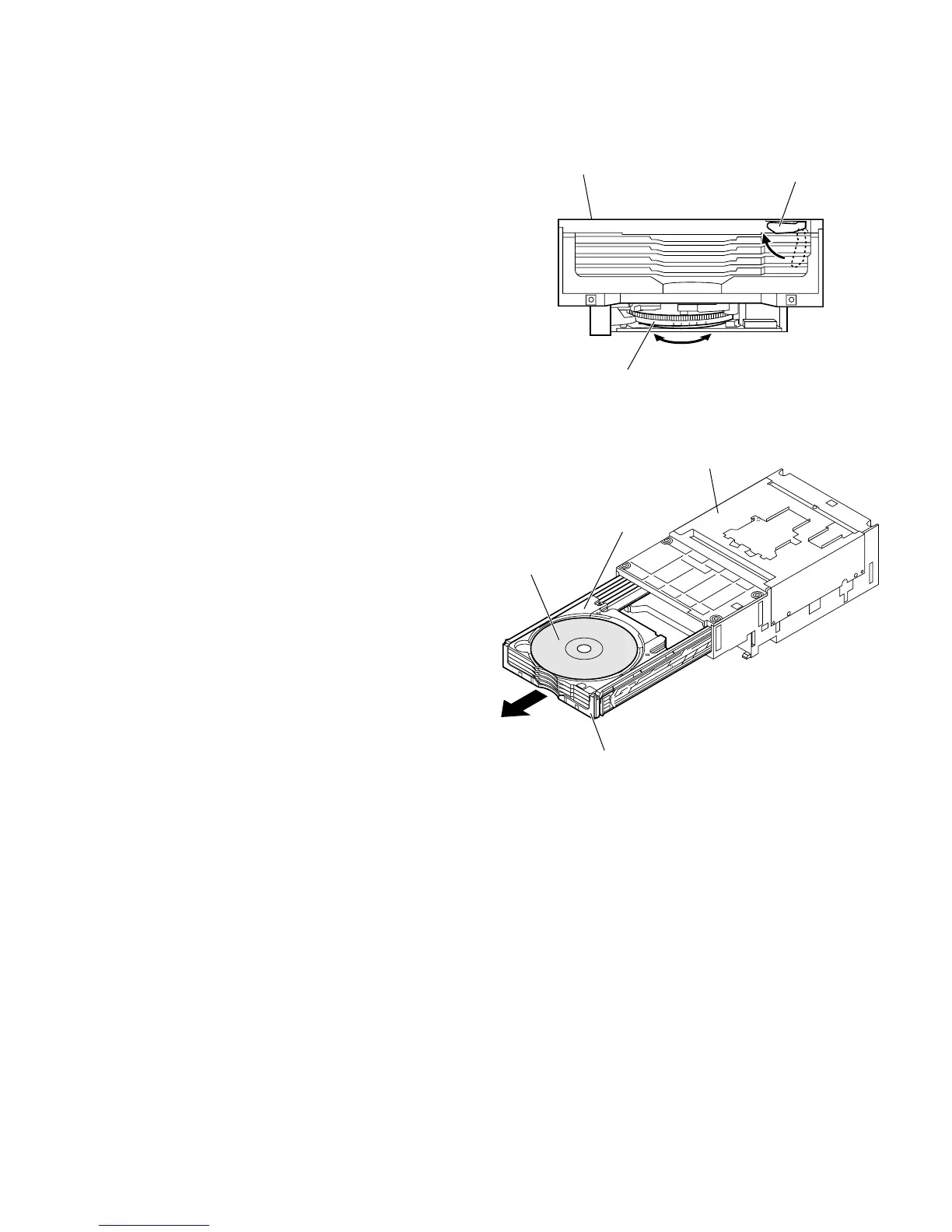

Figure 1
Figure 2
DVD Changer
Unit
Gear cam
Arm switch C
DVD Changer
Unit
DVD/CD Disc
Carriage
Drawer
