3 – 3
These speaker CP-DV5F/DV50F, CP-DV5SW/DV50SW are available
in assembles only and may not be disassembled.

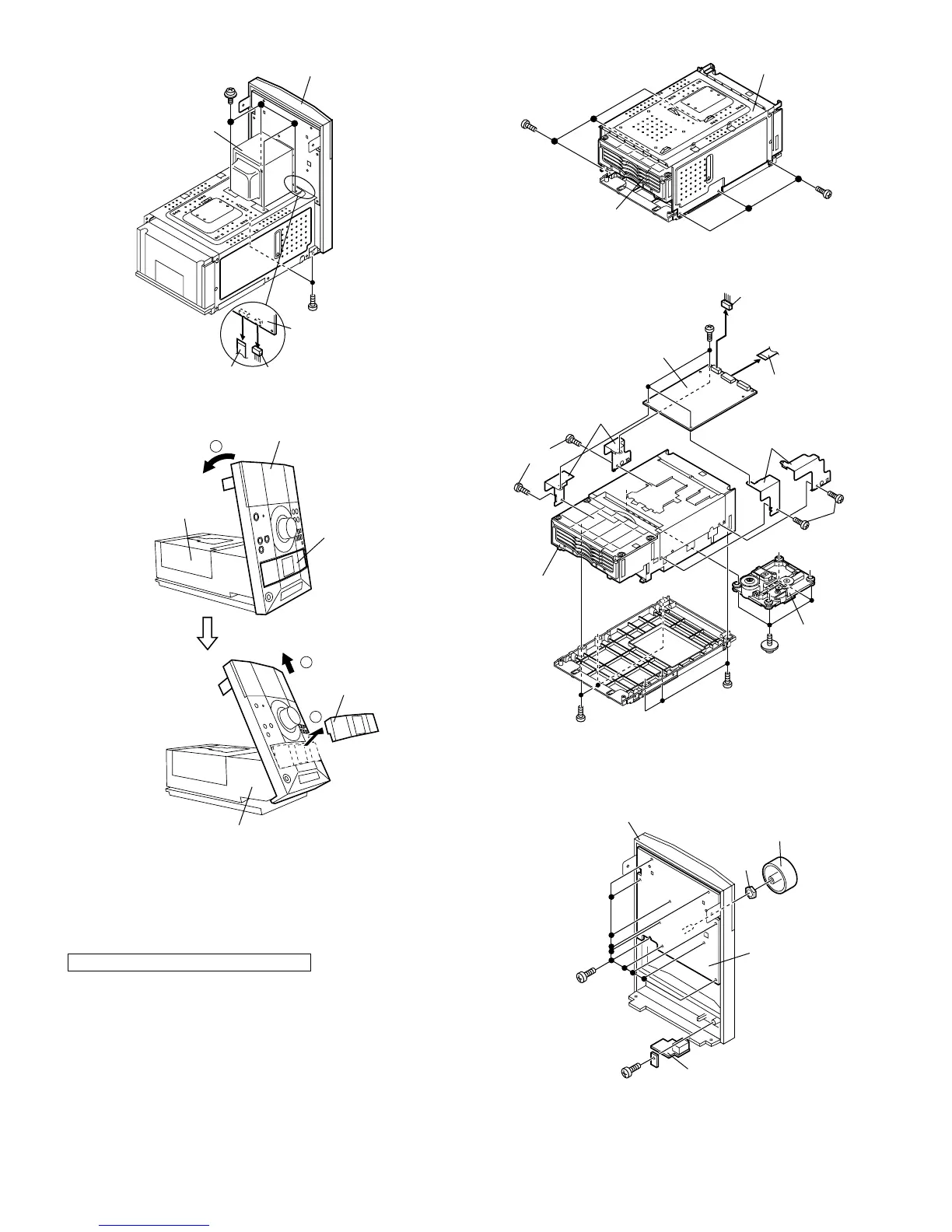

Figure 4
Figure 5
CP-DV5F/DV50F, CP-DV5SW/DV50SW
(F1) x4
ø4x10mm
Transformer
(G1) x2
ø3x10mm
Front Panel
(G2) x1 (G3) x1
Display PWB
1
(G4) x1
Front Panel
DVD Tray Cover
DVD Changer
Unit
DVD Changer
Unit
2
3
DVD Tray Cover
Figure 6
Figure 7
Figure 8
(H1) x3
ø3x10mm
(H1) x3
ø3x10mm
DVD Changer
Unit
Chassis
(K1) x3
ø3x10mm
(K1) x3
ø3x10mm
(L1) x4
ø3x10mm
(J3) x3
ø3x10mm
(J4) x2
ø3x10mm
(J4) x2
ø3x10mm
Bracket
(J1) x1
(J2) x1
DVD Changer
Unit
DVD PWB
DVD Mechanism
Bracket
(M2) x10
ø2.4x10mm
(N1) x1
ø2.4x10mm
(M1) x1
Nut
Front Panel
Display PWB
Headphones
PWB
