Sharp XL-HP515 User Manual

XL-HP515
1 – 2

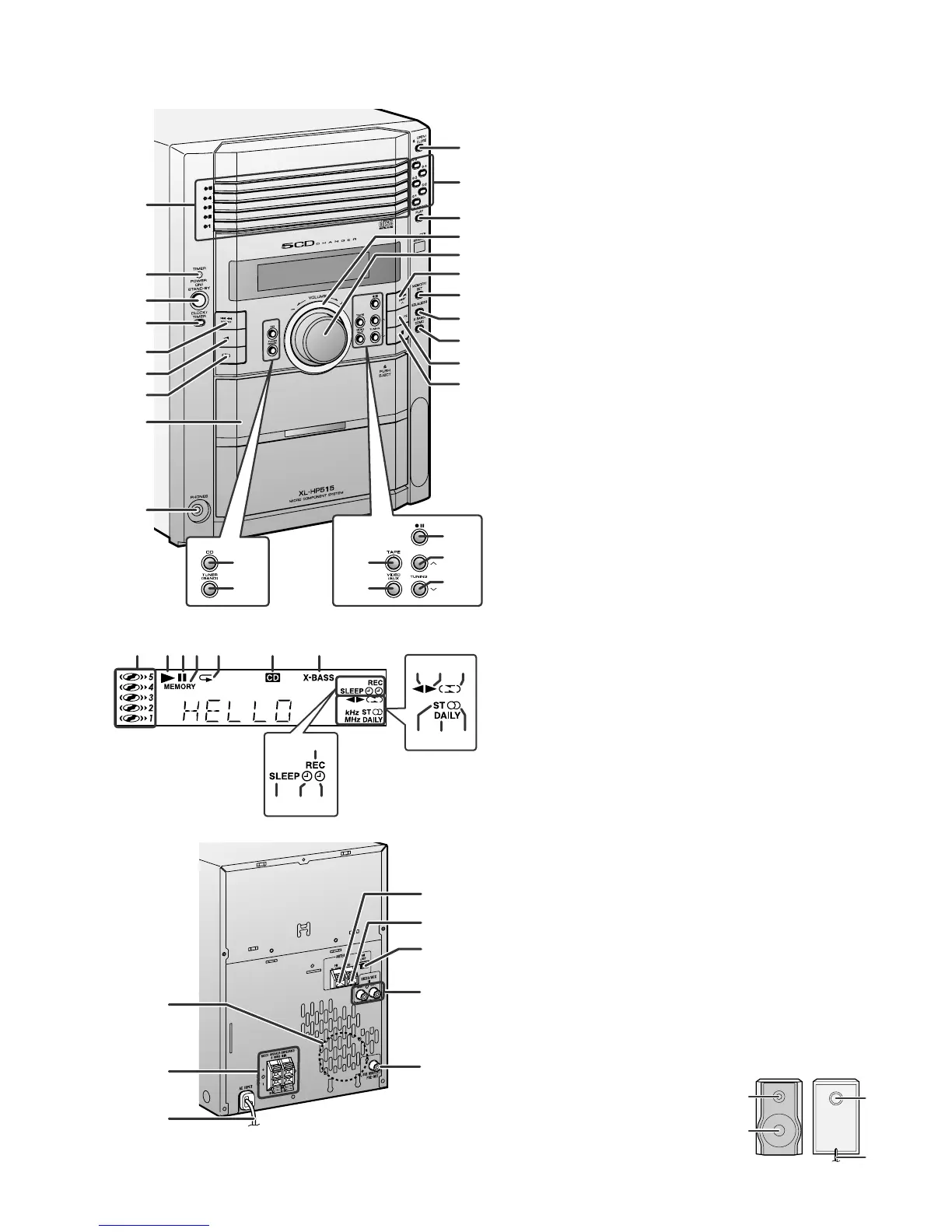

[3] NAMES OF PARTS
Front panel
1. Disc Trays
2. Tim er Indicator
3. Power On/Stand-by B utton
4. Clock/Timer Button
5. CD Track Down or Fast Reverse, Tape Fast Wind,
Tuner Preset Down, Tim e Down Button
6. Tape Reverse Play Button
7. Tape Reverse Mode Select Button
8. Cassette Compartmen t
9. Headphone Jack
10.DiscTrayOpen/CloseButton
11. Disc Number Select Buttons
12. CD Direct Play Button
13. Illumination Light
14. Volume Control
15. CD Track Up or Fast Forward, Tape Fast Wind,
Tuner Preset Up, Time Up Button
16. Memory/Set Button
17. Equalizer Mode Select Button
18. Extra Bass/Dem o Mode Butt on
19. CD Play or Repeat, Tape Forward Pl ay Bu tto n
20. CD or Tape Stop Button
21. CD Button
22. Tuner (Band) Button
23. Tape Button
24. Video/Auxiliary Button
25. Tape Record Pause Button
26. Tu ning Up Button
27. Tuning Down Button
1
11
12
14
15
16
17
18
19
20
10
2
3
4
13
9
5
6
7
8
23
24
21
26
27
25
22
■
■
■
■
Display
1. Disc Number Indicators
2. CD Play Indicator
3. CD Pause Indicator
4. Memory Indicator
5. CD Repeat Play Indicator
6. CD Indicator
7. Extra Bass Indicator
8. Tape Reverse P lay Indicato r
9. Tape Forward Play Indicator
10. Tape Revers e Mode Indicator
11. FM Stereo Mode Indicator
12. Daily Timer Indicator
13. FM Stereo Receiving Indicator
14. Tape Record Indicator
15. Sleep Indicator
16. Timer Play Indicator
17. Timer Recording Indicato r
Rear panel
1. Cooling Fan
2. Speaker Terminals
3. AC Power Cord
4. FM 75 Ohms An tenna Terminal
5. FM Antenna Ground Terminal
6. AM Loop Antenna Jack
7. Video/Auxiliar y (Audio S ignal) Input Jacks
8. Subwoofer Pre-output Jack
Speaker system
1
4
5
7
6
8
1089
76321 4 5
15 16 17
1211 13
14
3
2
1. Tweeter
2. Woofer
3. Bass Reflex Duct
4. Speaker Wire
1
3
4
2
