Sharp XL-HP700 - Page 6

XL-HP700
– 6 –

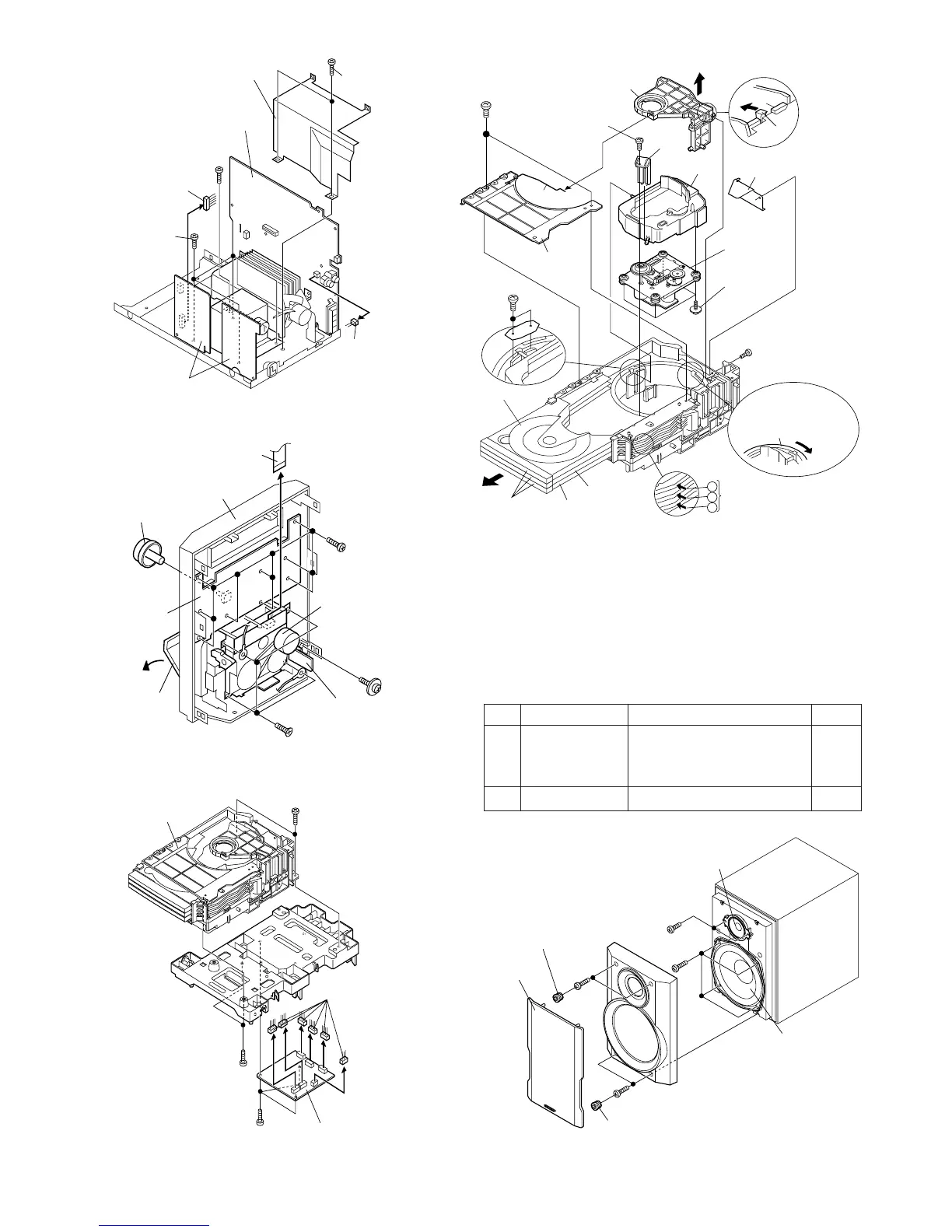

Figure 6-1
Figure 6-2
Figure 6-3
(G1) x1
ø3x6mm
(H1) x4
ø4x8mm
(G2) x1
Main PWB
Power PWB
(G2) x1
(F1) x2
ø3x6mm
Cover,Heat Sink
(J2) x9
ø2.6x10mm
(K1) x4
ø3x10mm
(J3) x1
(L1) x1
ø3x10mm
(J1) x1
Front Panel
Display PWB
Tape
Mechanism
Open
Cassette
Holder
Headphones
PWB
(M1) x3
ø3x10mm
(N1) x2
ø3x10mm
(N1) x2
ø3x10mm
(M2) x6
CD Servo PWB
CD Changer
Mechanism Unit
1 Woofer 1. Net Frame ............... (A1) x1 6-5
2. Catching Holder ...... (A2) x4
3. Screw ...................... (A3) x4
4. Screw ...................... (A4) x4
2 Tweeter 1. Screw ...................... (B1) x2 6-5
STEP
REMOVAL
PROCEDURE
FIGURE
Figure 6-5
Net Frame
(A1) x1
(A2) x2
(A3) x2
ø3x12mm
(A3) x2
ø3x12mm
(A4) x4
ø4x12mm
Woofer
Tweeter
(B1) x2
ø3x10mm
(A2) x2
Figure 6-4
(N2) x2
ø2 x7mm
(N6) x1
ø2.6 x12mm
(N6) x2
ø2 x6mm
(N11) x4
ø2.6 x10mm
(N4) x1
Stabilizer Holder
Push
Spring
Disc Tray 1
Disc Tray 2
Press in turns the arrow
parts, starting with the
uppermost one, to
withdraw the disc trays.
Disc Tray 3
Pawl
CD
Mechanism
Top Board
(N3) x1
(N7) x1
(N10) x1
1
(N8) x1
ø3 x3mm
(N5) x3
2
3
(N9) x1
Turn clockwise the
main cam to raise the
CD mechanism up to
the uppermost position.
