REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 10 of the disassembly method to remove
the tape mechanism.
How to remove the Record/Playback Head
(See Fig. 7-1)
1. When you remove the screws (A1) x 2 pcs and (A2) x 1 pc.,
the record/playback head can be removed.
How to remove the Pinch Roller
(See Fig. 7-2)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (B1) x 1 pc., in the
direction of the arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the Belt
(See Fig. 7-3)
1. Remove the main belt (C1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (C2) x 1 pc.
How to remove the Motor (See Fig. 7-4)
1. Remove the screws (D1) x 2 pcs., to remove the motor.

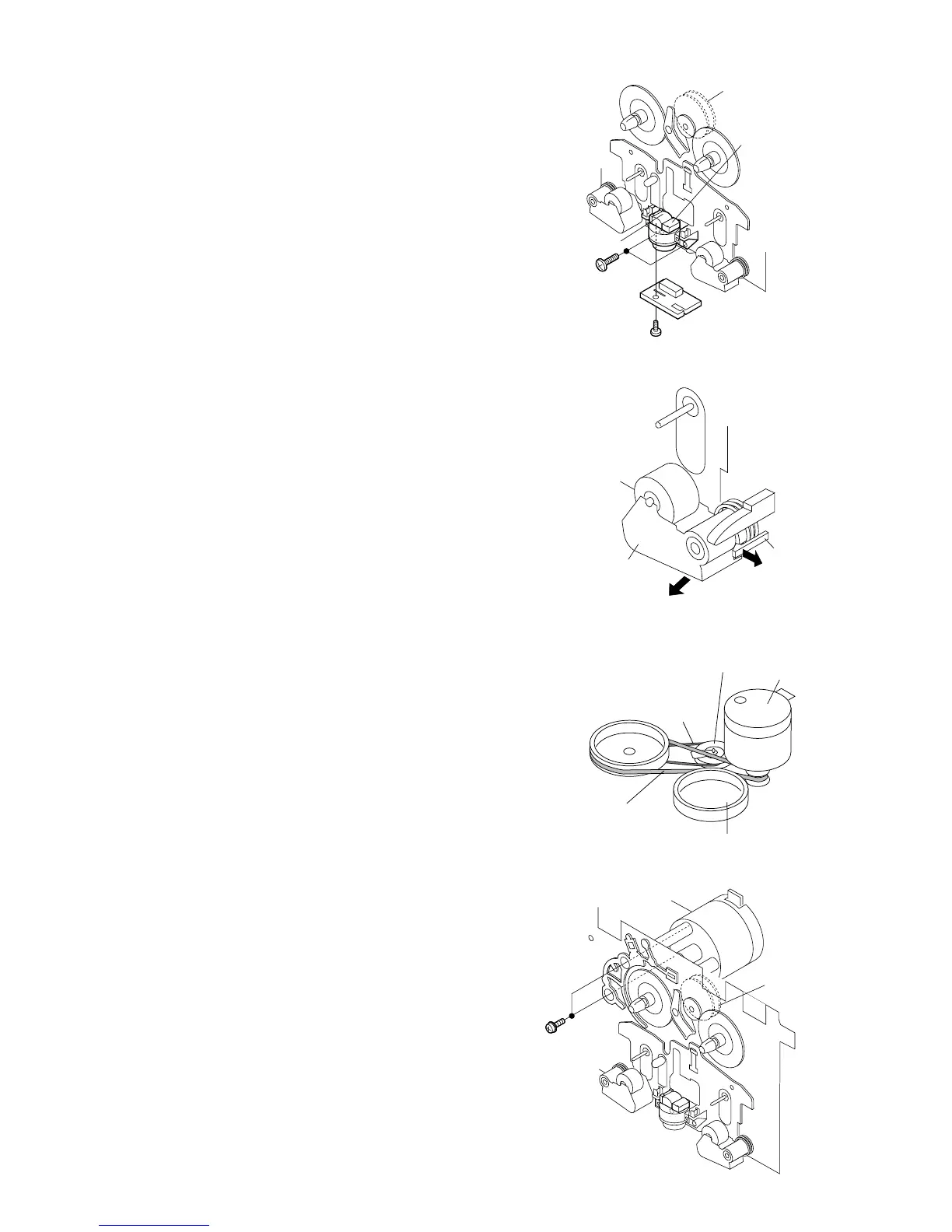

Figure 7-1
Figure 7-2
Figure 7-3
Figure 7-4
(A1)x2
Ø2x6mm
(A2)x1
Ø2x9mm
Record/Playback
Head
Erase Head
Clutch Ass'y
Pinch Roller
(B1)x1
<A>
<B>
Pinch
Roller
Pawl
Pull
Main Belt
(C1)x1
FF/REW
Belt
(C2)x1
Motor
FF/REW
Clutch
Flywheel
(D1)x2
Ø2.6x5mm
Motor
Clutch Ass'y
