Auto power on function:
When you press any of the following buttons, the unit turns on.
 VIDEO/AUX button (main unit and remote control): The unit turns
on and the "VIDEO" function is activated.
 / button on the main unit: The unit turns on and playback of
the last function starts (CD, TAPE, TUNER, VIDEO/AUX).
 Listening to the playback sounds from VCR,
DVD, etc.
Note:
To prevent noise interference, place the unit away from the televi-
sion.
 To record on a tape
 Headphones
 Before plugging in or unplugging the headphones, reduce the vol-
ume.
 Be sure your headphones have a 3.5 mm (1/8") diameter plug and
impedance between 16 and 50 ohms. The recommended imped-
ance is 32 ohms.
 Plugging in the headphones disconnects the speakers automati-
cally. Adjust the volume using the VOLUME control.
/
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
AC INPUT
ANTENNA
RIGHT
RIGHT LEFT
FM
75 OHMS
AM
LOOP
VIDEO/AUX
IN
SUBWOOFER
PRE-OUT
SPEAKERS
LEFT
/
VCR, DVD, etc.
To the line
output sockets
Red
RCA lead
(not supplied)
White
Red White
1

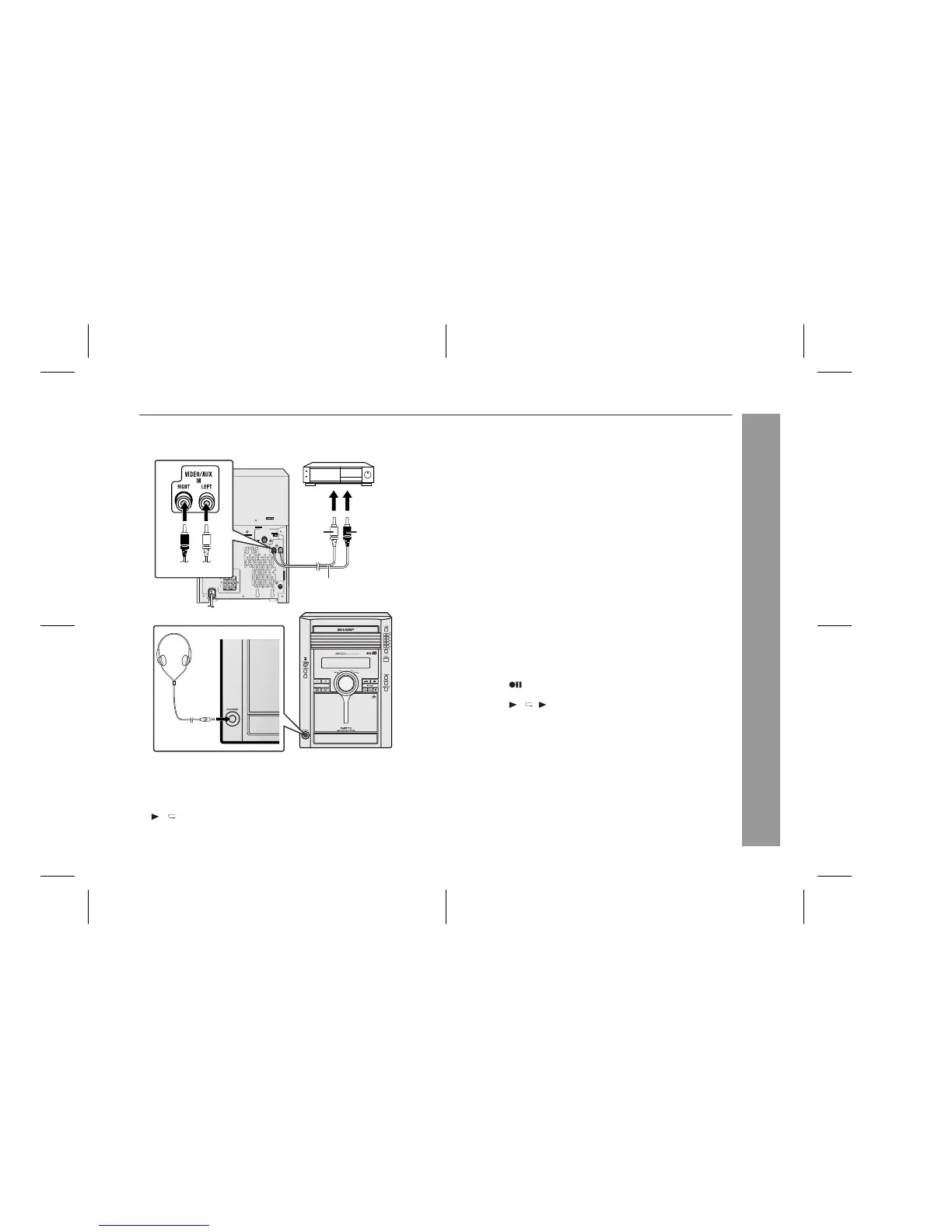

Use a connection lead to connect the VCR, DVD, etc. to the
VIDEO/AUX IN sockets.
When using video equipment, connect the audio output to this
unit and the video output to a television.
2
Press the ON/STAND-BY button to turn the power on.
3
Press the VIDEO/AUX button.
4
Play the connected equipment.
1
Insert a cassette in the cassette compartment.
2
Press the VIDEO/AUX button.
3
Press the button.
4
Press the / ( ) button.
5
Play the VCR, DVD, etc.
