XL-MP333H/XL-MP444H
3 – 1
AudioXL-MP333H/XL-MP444HService ManualXL-MP333H/XL-MP444HMarketE
CHAPTER 3. MECHANICAL DESCRIPTION
[1] REMOVING AND REINSTALLING THE MAIN PARTS
1.
How to remove CD Disc manually (See Fig. 1,2)
Perform steps 1 to 9 of the disassembly method to remove the CD
Changer unit.(see page 3-2,3-3)
1. Rotate the gear cam until the arm switch C becomes the position of
the Figure 1.
2. Pull the drawer to the front like the Figure 2.
And the CD disc on the carriage is taken out.

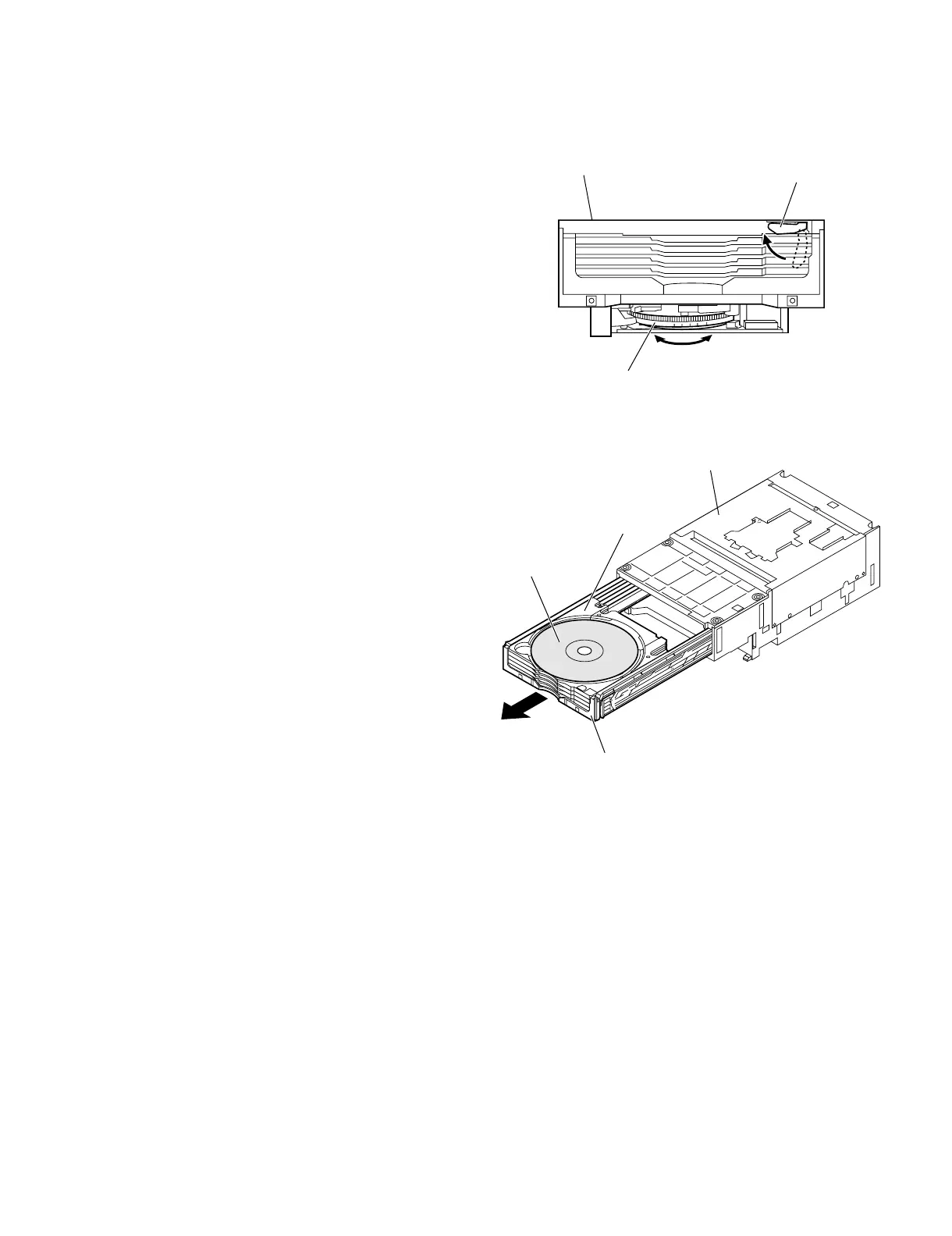

Figure 1
Figure 2
CD Changer
Unit
Gear cam
Arm switch C
Changer
Unit
CD Disc
Carriage
Drawer
