XL-MP333H/XL-MP444H
1 – 3

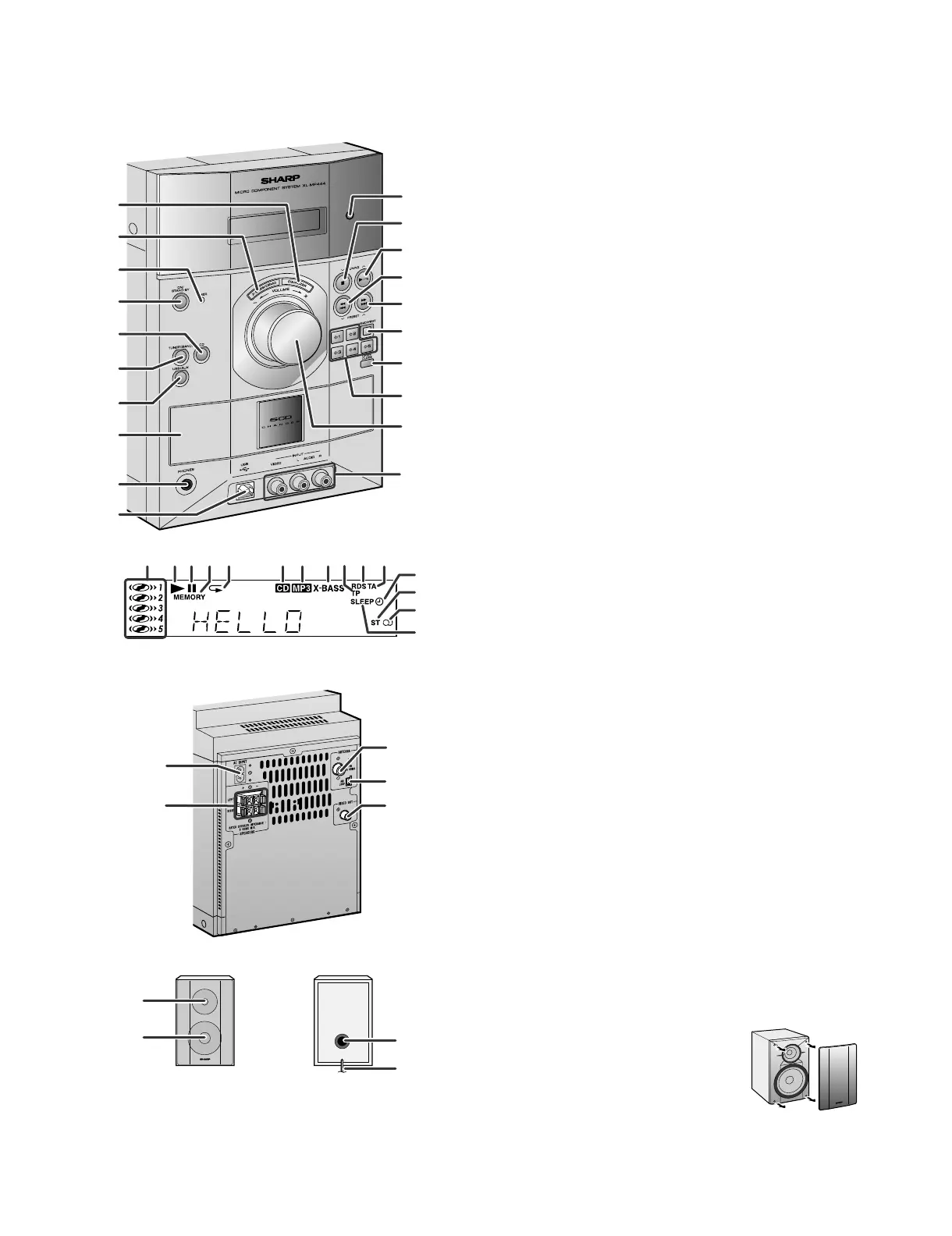

[3] NAMES OF PARTS
■ Front panel
1. Equaliser Mode Select Button
2. Extra Bass/Demo Mo de Button
3. Timer Indicator
4. On/Stand-by Button
5. CD Button
6. Tuner (Band) Button
7. USB/Au xiliar y Button
8. Disc Comp artmen t
9. Headphone Socket
10. USB Socket
11. Remote Senso r
12. Stop or Tuning Down Button
13. Play or Repeat, Tuning Up Button
14. Track Down or Fast Reverse,
Tuner Preset Down B utton
15. Track Up or Fast Forward, Tuner Preset Up Button
16. Memory/Set Button
17. Disc Compartment Open/Close Button
18. Disc Number Select Buttons
19. Volume Control
20. Video and Audio Input Sockets
■ Display
1. Disc Numb er Indicators
2. Play Indicator
3. Pause Indicator
4. Memory Indicator
5. Repeat Play Indicator
6. CD Indicator
7. MP3 Disc Indicator
8. Extra Bass Indicator
9. Traffic Programme Indicator
10. RDS Indicator
11. Traffic Announcement Indicator
12. Timer Play Indicator
13. FM Stereo Mode Indicator
14. FM Stereo Receiving Indicat or
15. Sleep Indicator
11
19
12
13
14
15
16
17
18
20
8 109321 4 5 76
11
14
15
13
12
4
8
9
10
1
2
3
5
6
7
■ Rear panel
1. AC Power Input S ocket
2. Spea ker Terminals
3. FM 75 Ohms Aerial Socket
4. AM Loop Aerial Socket
5. Video Ou tp ut Socket
■ Speaker system
1. Tweeter
2. Woofer
3. Bass Reflex Duct
4. Speaker W ire
1
4
3
5
2
3
4
2
1
Speaker grilles are removab le:
Make sure nothing comes into contact with the
speaker diaphragm when you remove the
speaker grilles.
Illustration XL-MP333H
