Sharp XL-MP333H Service Manual

XL-MP333H/XL-MP444H
1 – 4

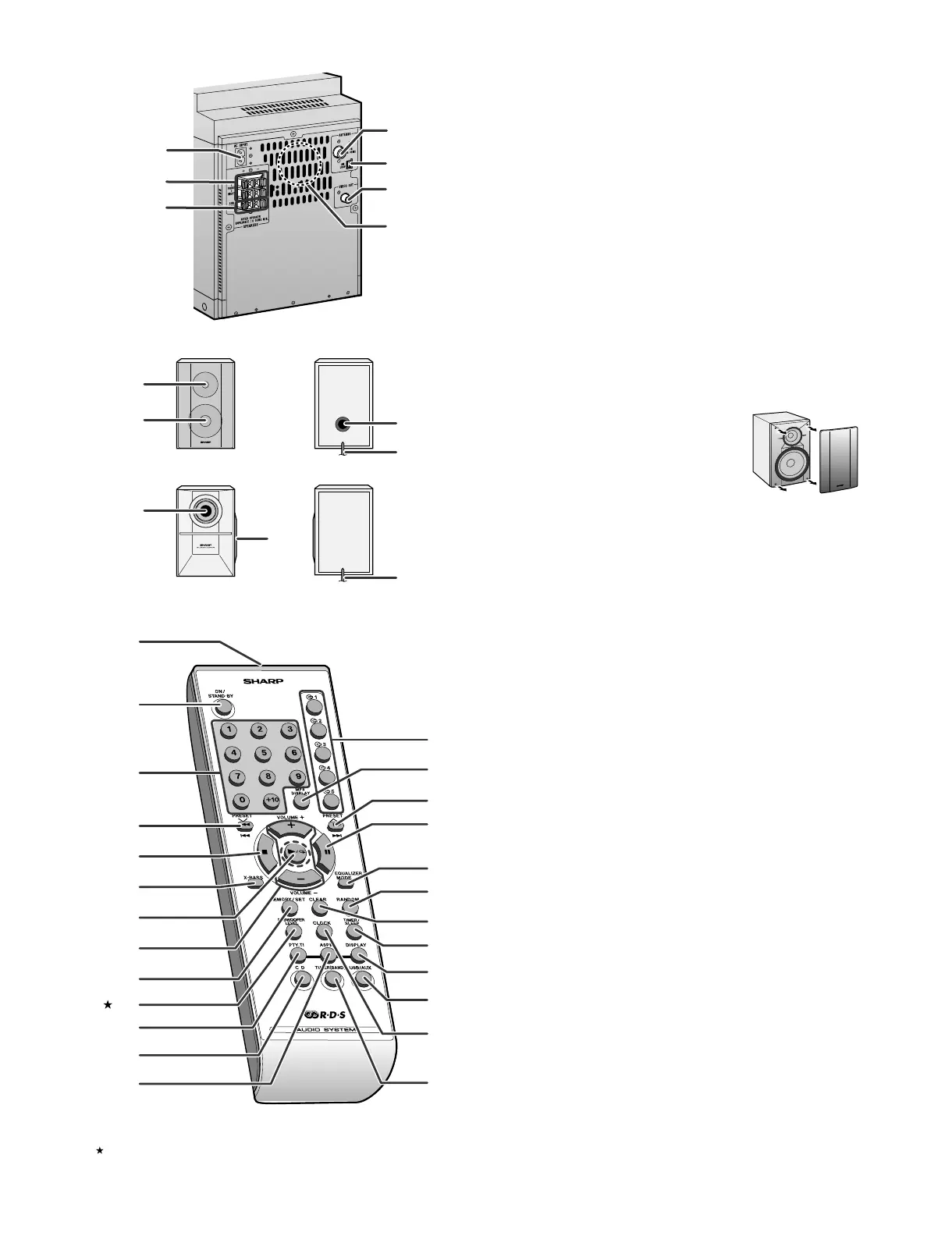

■ Rear panel
1. AC Power Input Socket
2. Front Speaker Terminals
3. Subwo o fer Term inals
4. FM 75 Ohms Aerial Socket
5. AM L oop Aerial Socket
6. Video Ou tput Socket
7. Cooling Fan
■ Front speaker
1. Tweeter
2. Woofer
3. Bass Reflex Duct
4. Speaker Wire
■ Subwoofer
1. Sub Duct Pipe
2. Subwoofer
3. Speaker Wire
3
2
1
1
5
4
6
7
2
3
3
4
2
1
Front speaker grilles are removable:
Make s ure nothing com es into contact with the
speaker diaphragm when y ou remove the
speaker grilles.
Illustration XL-MP444H
( : XL-MP444H only)
■ Remote control
1. Remote Control Transmitter
2. On/Stand-by Bu tton
3. Direct Track Search Buttons
4. Track Down or Fast Reverse,
Tuner Preset Down, Time Down Button
5. Stop Button
6. Extra Bass Button
7. Play or Repeat Button
8. Volume Up and Down Buttons
9. Memory/Se t Button
10. Subwoofer Level Shift Button (XL-MP444H only)
11. RDS Programme Type/
Traffic Information Search Button
12. CD Button
13. RDS ASPM (Auto Station Prog ramme M emory) Button
14. Disc Number Select Buttons
15. MP3 Disc Display Button
16. Track Up o r Fast Forward, Tuner Preset Up,
Time Up Button
17. Pause Button
18. Equaliser Mode Select B u tton
19. Random Button
20. Clear Button
21. Timer/Sleep Button
22. RDS Display Mode Select Button
23. USB/Auxiliary Button
24. Clock Button
25. Tuner (Band) Button
1
21
22
23
24
25
20
19
18
17
16
14
15
4
5
6
7
8
9
10
11
12
13
2
3
