XL-MP9H
6 – 1
Home StereoXL-MP9HService ManualXL-MP9H S/MMarketE
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS LAYOUT
[1] NOTES ON SCHEMATIC DIAGRAM
•Resistor:
To differentiate the units of resistors, such symbol as K and M are
used: the symbol K means 1000 ohm and the symbol M means
1000 kohm and the resistor without any symbol is ohm-type resis-
tor. Besides, the one with “Fusible” is a fuse type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this symbol P
means micro-micro-farad and the unit of the capacitor without such
a symbol is microfarad. As to electrolytic capacitor, the expression
“capacitance/withstand voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this model
are subject to change for improvement without prior notice.
• The indicated voltage in each section is the one measured by Digi-
tal Multimeter between such a section and the chassis with no sig-
nal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these parts
with specified ones for maintaining the safety and performance of
the set.

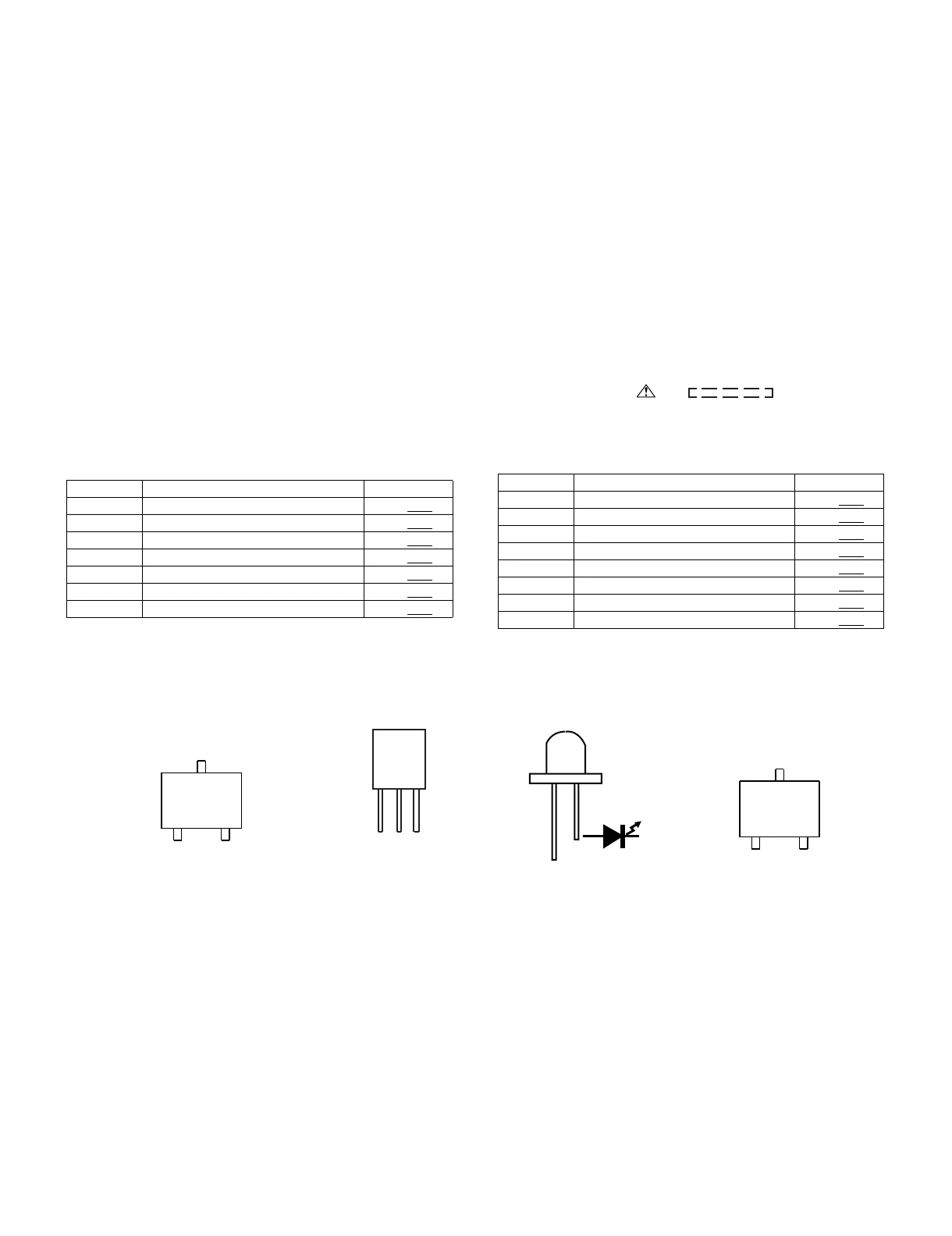

[2] TYPES OF TRANSISTOR AND LED
REF. NO DESCRIPTION POSITION
SW701 STOP ON-OFF
SW702 BASS/TREBLE ON-OFF
SW703 MEMORY/SET ON-OFF
SW704 CLEAR ON-OFF
SW705 VOLUME UP ON-OFF
SW706 PRESET DOWN ON-OFF
SW707 ON/STAND-BY ON-OFF
SW708 DISC EJECT ON-OFF
SW709 FUNCTION ON-OFF
SW710 PLAY ON-OFF
SW711 MP3/WMA DISPLAY ON-OFF
SW712 TIMER ON-OFF
SW713 SLEEP ON-OFF
SW714 PRESET UP ON-OFF
SW715 VOLUME DOWN ON-OFF
REF. NO DESCRIPTION POSITION
(1) (2) (3)
(S) (G) (D)
EC B
FRONT
VIEW
2HA1015 GR
2HC1815 GR
KTC3203 Y
KTA1271 Y
KTC3205 Y
FRONT
VIEW
2SC3052 F+
2SA1235 F+
B
E
C
SVC348SLPBB73VQ
2SC380 O
2SB1370 E+
KRC104 M
2SC5395 F+
KRA107 M
To Next Page
