Sharp XL-MP9H Service Manual

XL-MP9H
6 – 16

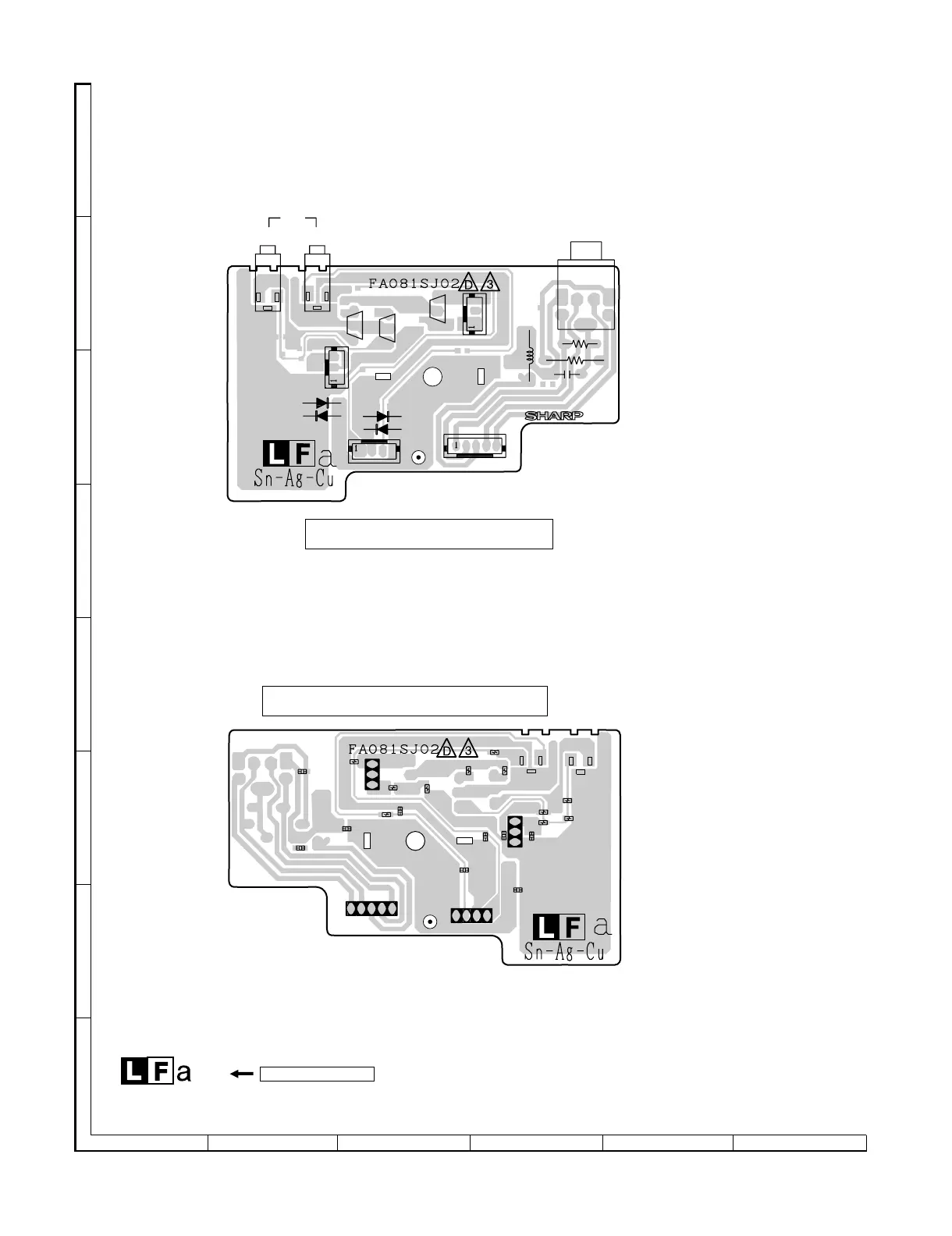

[10] WIRING SIDE OF PWB POWER/JACK
Figure 6-16 WIRING SIDE OF PWB (7/10)
A
B
C
D
E
F
G
H
1
23456
D601
D602
CNP601
CNW603
Q601
Q602
Q603
CNP201
CFW601
D202
D201
CNP105
L104
R102
C111
R101
J103
SO201
SO601
C112
C101
C110
C201
R202
R655
R653
R201
R651R652
R654
C603
R657
R645
R646
R656
C638
C202
C203
C637
Lead-free solder indication
Lead-free solder is used in there POWER, JACK PWB.
Refer to "Precautions for handling lead-free solder" for instructions
and precautions.
JACK PWB-A2 (TOP VIEW)
JACK PWB-A2 (BOTTOM VIEW)
PHONES
LINE
OUT IN
