XL-MP9H
1 – 3

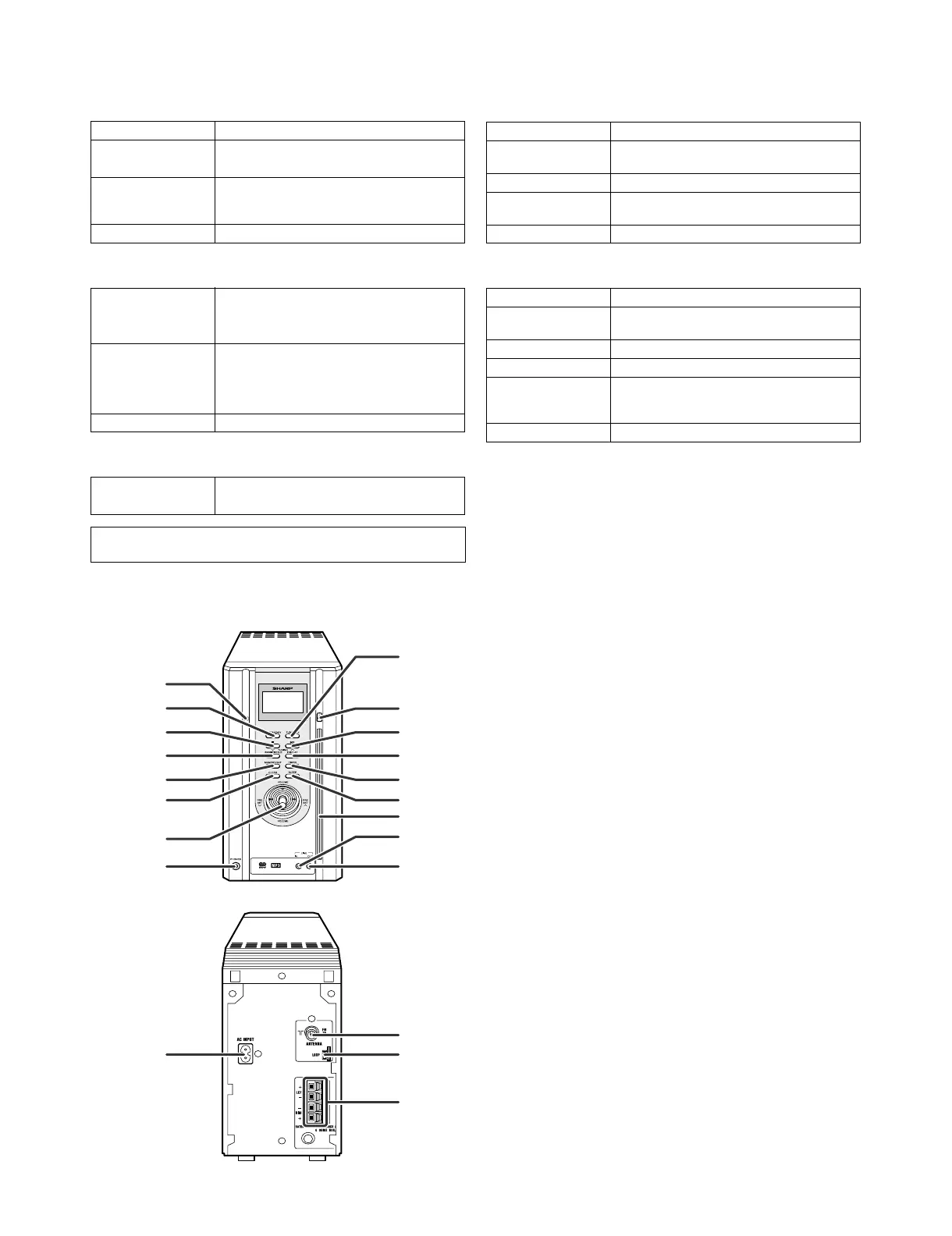

[3] SPECIFICATIONS
[4] NAMES OF PARTS
Specifications for this model are subject to change without prior
notice.
General
Amplifier
Tuner
CD player
Speaker
Power source AC 230 V, 50 Hz
Power
consumption
Power on: 25 W
Power stand-by: 0.9 W
Dimensions Width: 100 mm (3-15/16")
Height: 205 mm (8-1/16")
Depth: 240 mm (9-7/16")
Weight 2.1 kg (4.6 lbs.)
Output power PMPO: 30 W (total)
MPO: 15 W (7.5 W + 7.5 W) (DIN 45 324)
RMS: 10 W (5 W + 5 W) (DIN 45 324)
Output terminals Speakers: 4 ohms
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
Line output: 2 k ohms
Input terminals Line input: 47 k ohms
Frequency range FM: 87.5 - 108.0 MHz
AM: 522 - 1,620 kHz
Type Compact disc player
Signal readout Non-contact, 3-beam semiconductor laser
pickup
D/A converter 1-bit D/A converter
Frequency
response
20 - 20,000 Hz
Dynamic range 90 dB (1 kHz)
Type 8 cm (3-1/8") full-range speaker
Maximum input
power
10 W
Rated input power 5W
Impedance 4 ohms
Dimensions Width: 100 mm (3-15/16")
Height: 205 mm (8-1/16")
Depth: 193 mm (7-5/8")
Weight 1.2 kg (2.6 lbs.)/each
■
■
■
■
■
1. Remote Sensor
2. On/Stand-by Button
3. Disc Stop/Tuning Down Button
4. Bass/Treble Selector Button
5. Memory/Set Button
6. Clear Button
7. Volume Up and Down/Track Up and Down/Preset Up and
Down Lever
8. Headphone Socket
9. Function Selector Button
10. Disc Eject Button
11. Disc Play or Pause/Tuning Up Button
12. MP3/WMA Display Button
13. Timer Button
14. Sleep Button
15. Disc Slot
16. Line Input Socket
17. Line Output Socket
18. AC Power Input Socket
19. FM 75 Ohm Aerial Socket
20. AM Loop Aerial Socket
21. Speaker Terminals
1
2
3
4
5
6
7
8
9
11
13
10
12
14
15
16
18
17
19
21
20
