XL-MP9H
7 – 3
Check the TE waveform at pin 16 on IC 801.

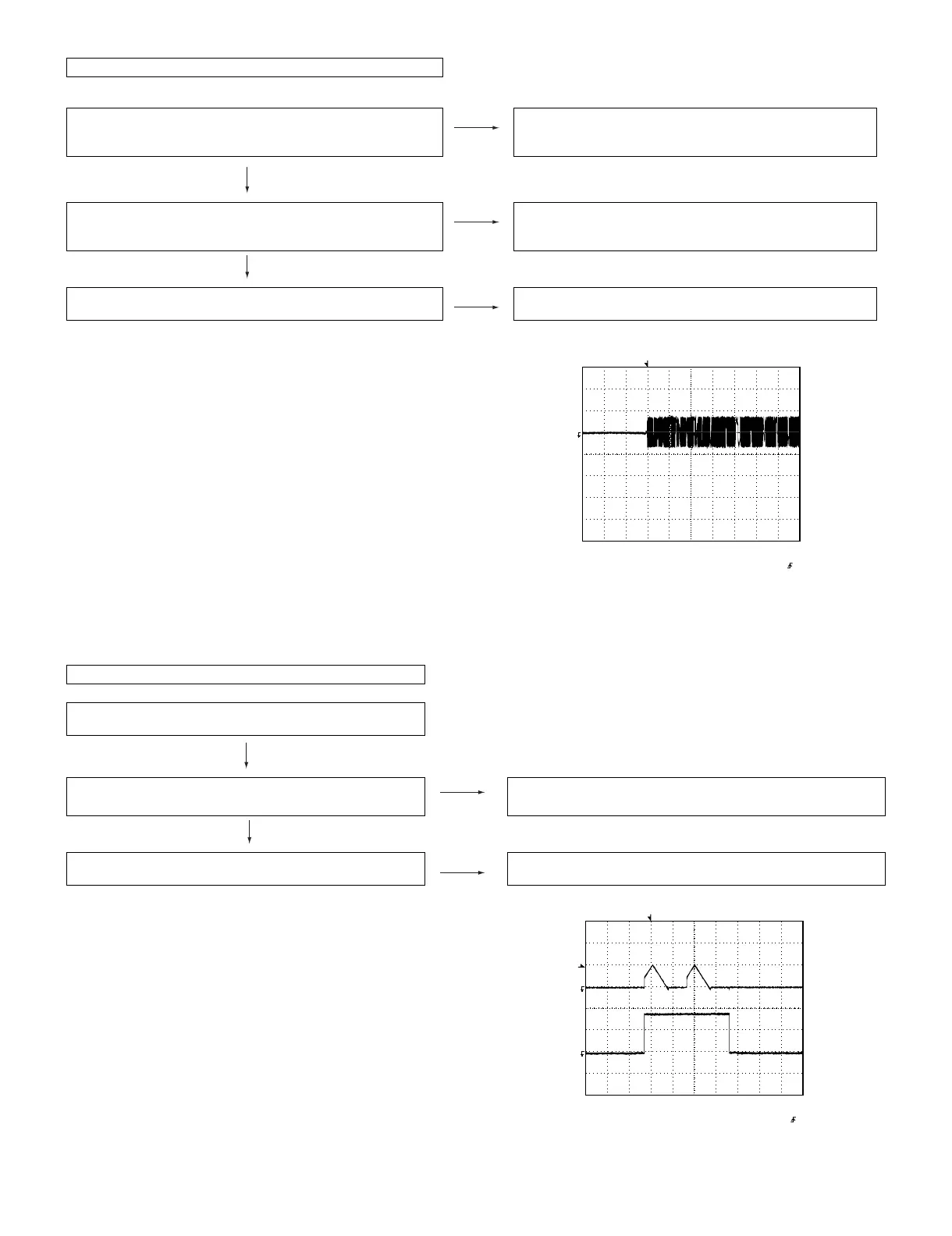

(2) Tracking system check.
If the waveform shown in Figure 4 appears and soon after NO
DISC appears?
Yes
The tracking servo is not activated.
Check the peripheral circuits at pins 15, 16 and 23 on IC801,
and FC801.
No
"Initialization" is possible, but play is not possible?
Yes
A normal jump operation cannot be completed or the beginning
of the track cannot be found.
Check the around pin 23 on IC801.
No
"Initialization" is not possible. Data cannot be read. Check the VCO-PLL (Pin26~30 on IC801)
system.
Figure 4
T
TE
Stopped
CH1=10 V
DC 10:1
CH2=1 V
DC 10:1
100 ms/div
(100 ms/div)
NORM:100 kS/s
2
=Record Length=
Smoothing : ON CH1 : 0.0 V
CH2 : 0.00 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
(3) Spin system check.
Press the DISC EJECT switch without inserting a disc, and
then try starting the play operation.
1. The turntable rotates a little?
(Waveform drawing Figure 5)
Yes
The spin driver circuit is OK.
No
2. The turntable doesn't rotate. Check around pin 25 on IC801, pins 10 and 11 on IC802, and
CNW402.
Figure 5
T
T
FDO
SPDO
Stopped
CH1=200 mV
DC 10:1
CH2=500 mV
DC 10:1
500 ms/div
1999/04/07 09:51:15
(500 ms/div)
NORM:20 kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.000 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger=
=Filter= =Offset=
To Next Page
