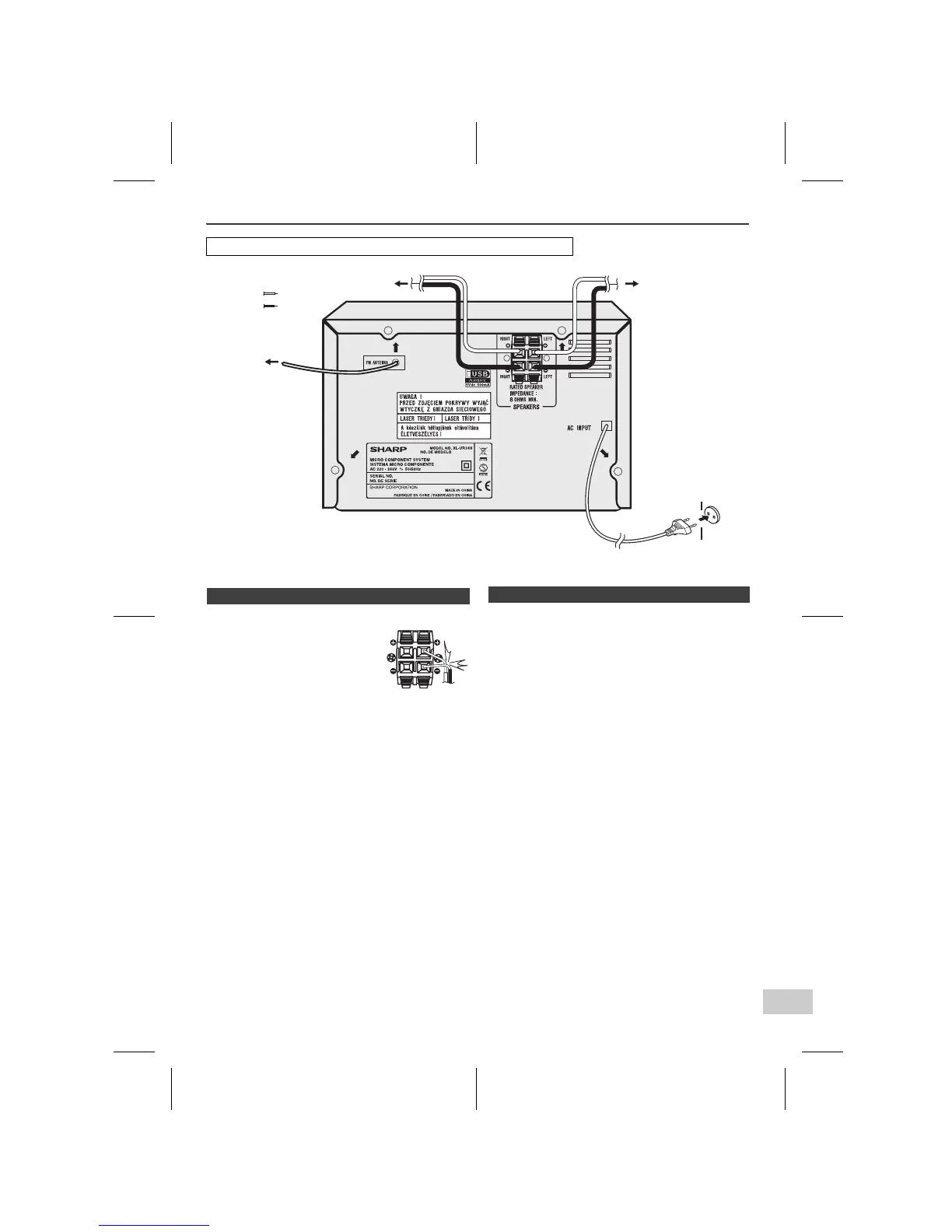

System Connection
After checking all the connections have been made
correctly, plug the AC power lead of this unit into the wall
socket. If you plug in the unit first, the unit will enter the
stand-by mode.
Note:
Unplug the AC power lead from the wall socket if the unit
will not be in use for a prolonged period of time.
Make sure to unplug the AC power lead before making any connections.
92LXXXXXXXXXXX
26 W
Right
speaker
FM aerial
Wall socket
(AC 220 - 240 V ~ 50/60 Hz)
Black
Red
Left
speaker
■ Speaker connection
● Connect the black wire to the minus
(–) terminal, and the red wire to the
plus (+) terminal.
● Use speakers with an impedance of
8 ohms or more, as lower
impedance speakers can damage
the unit.
● Do not mistake the right and the left
channels. The right speaker is the
one on the right side when you face
the unit.
Incorrect
● Do not let the bare speaker wires touch each other.
● Do not allow any objects to fall into or to be placed in the
bass reflex ducts.
● Do not stand or sit on the speakers. You may be injured.
RIGHT LEFT
RIGHT
SPEAKERS
LEFT
■ AC power connection

Sharp XL-UR14H Specifications

General

Brand	Sharp
Model	XL-UR14H
Category	Stereo System
Language	English
