05-25730-0EPage 4
Extension
Panel
12082

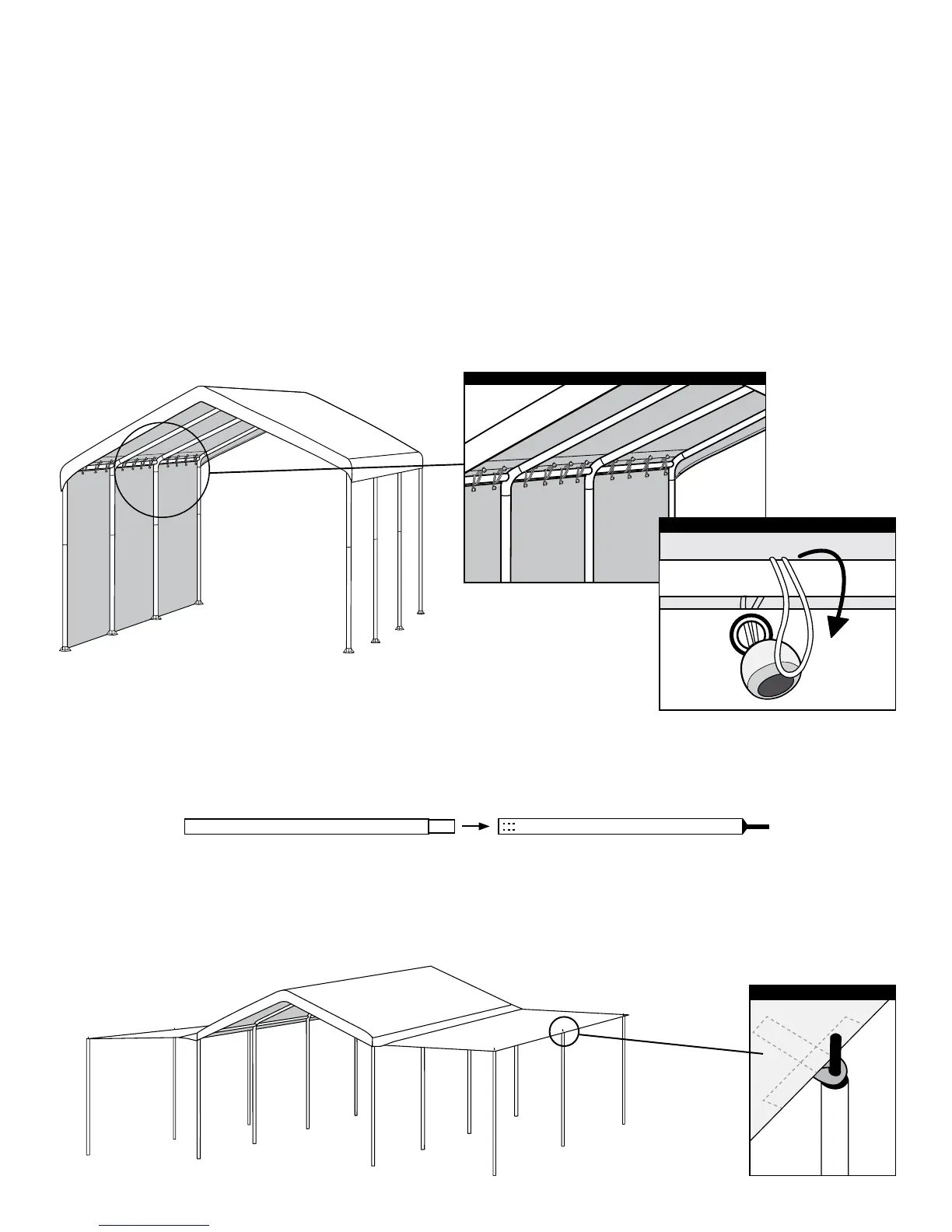

Interior View Extension Panel Setup
1. ATTACH SIDE WALLS TO FRAME
NOTES:
• Canopy extension panels attach to frame cross rails with bungee cords.
• Leave Canopy Cover bungees in place when attaching extension panels.
• Extension panels will not allow the canopy cover TwistTite mechanism to properly tighten the cover
when extended. An alternate TwistTite Clamp system is included with this kit and shown in Step 5.
A. If tightened at corner leg poles, disengage the TwistTite
cord and “S” hook from canopy cover and corner
legs. Wrap up TwistTite
cord and secure inside the shelter with one of the cover panel bungee cords.
B. Attach the extension panels with bungees to the cross rails at the top rst. Adjust the panels as needed to
ensure a tight and even t before extending panel and securing to the tent poles.
CAUTION: Bungee Cords are under extreme tension. Use Caution when installing. Safety glasses are
recommended to prevent injury.
2. ASSEMBLE EXTENSION PANEL TENT POLES
3. RAISE EXTENSION PANELS AND ATTACH TENT POLES
1045810459
Insert Bungee Cord Through Grommet
Top of Extension Pole
