ShelterLogic Shed-in-a-Box RoundTop User Manual

05_70435_70437_0BPage 4
801033
800921
800939
03032
01010

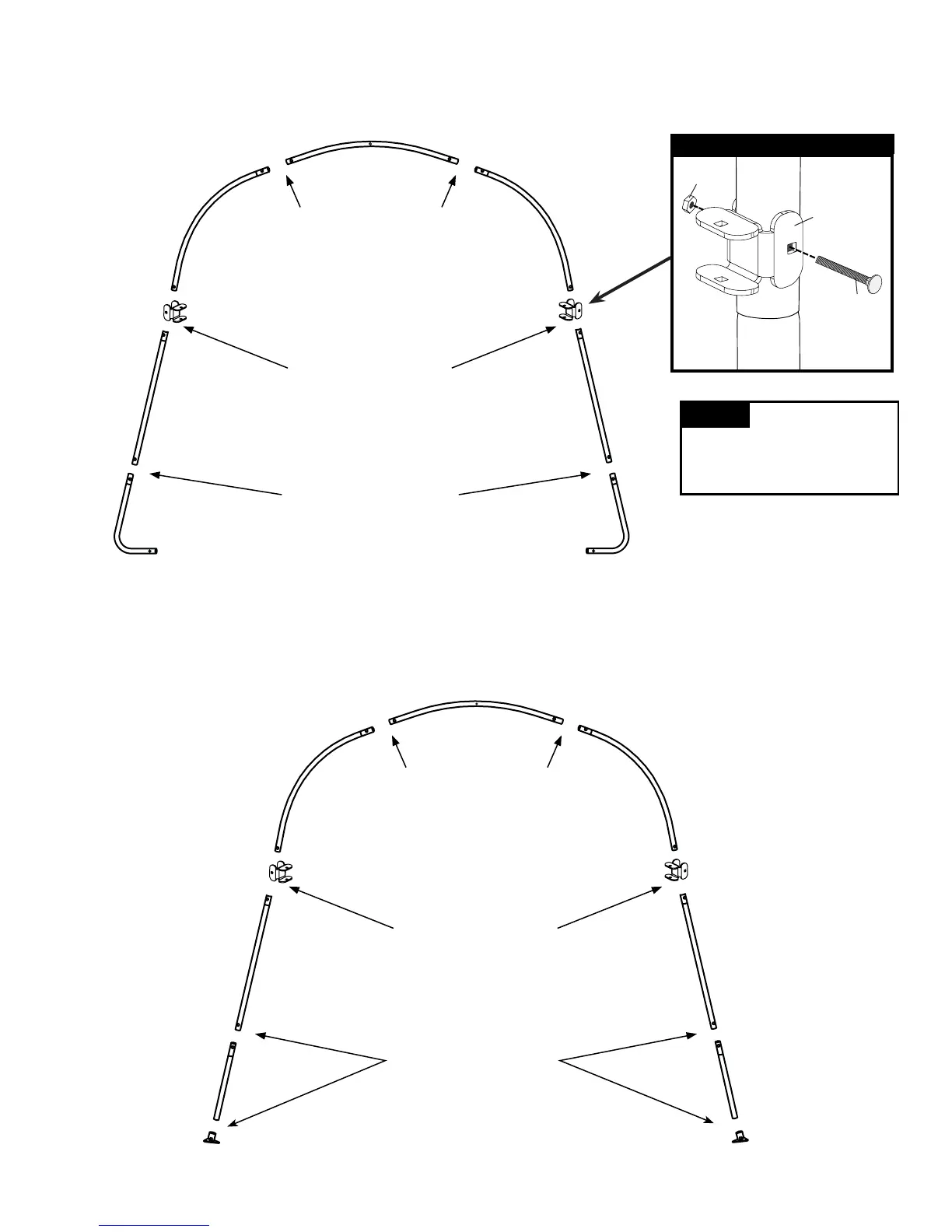

1. ASSEMBLE END RIBS
2. ASSEMBLE MIDDLE RIB
800922
800923
800923
12270
12270
800921
800921
801033
801034
801033
800939
800939
800939
800939
800921
800921
800922
ShelterLock II
®
Connection
Secure connections using Bolts as shown with #01010 Nuts.
801034
801033801033
#10115 Bolts (1
5
/
8
")
#10115 Bolts (1
5
/
8
")
#03032 Bolts (1
7
/
8
")
#03032 Bolts (1
7
/
8
")
#10115 Bolts (1
5
/
8
")
#10115 Bolts (1
5
/
8
")
NOTE:
The bolt heads at
the end ribs must be facing
outward to avoid damaging
your cover.
