05_70435_70437_0BPage 5
Cross Rails
A. Assemble 2 Cover Rails using parts as shown.
B. Assemble 3 Cross Rails using parts as shown.
C. Connect the Cross Rails to the End Rib at the ShelterLocks.
D. Place a Cover Rail at each leg and secure it with a Cover Clamp as shown. Slide the Cover Rails so they
are 8 inches up from the ground. Only HAND-TIGHTEN these bolts!
ShelterLock II
®
connections use #03032 (1
7
/
8
") Bolts. Cover Rail Clamp connections use #10115 (1
5
/
8
") Bolts.

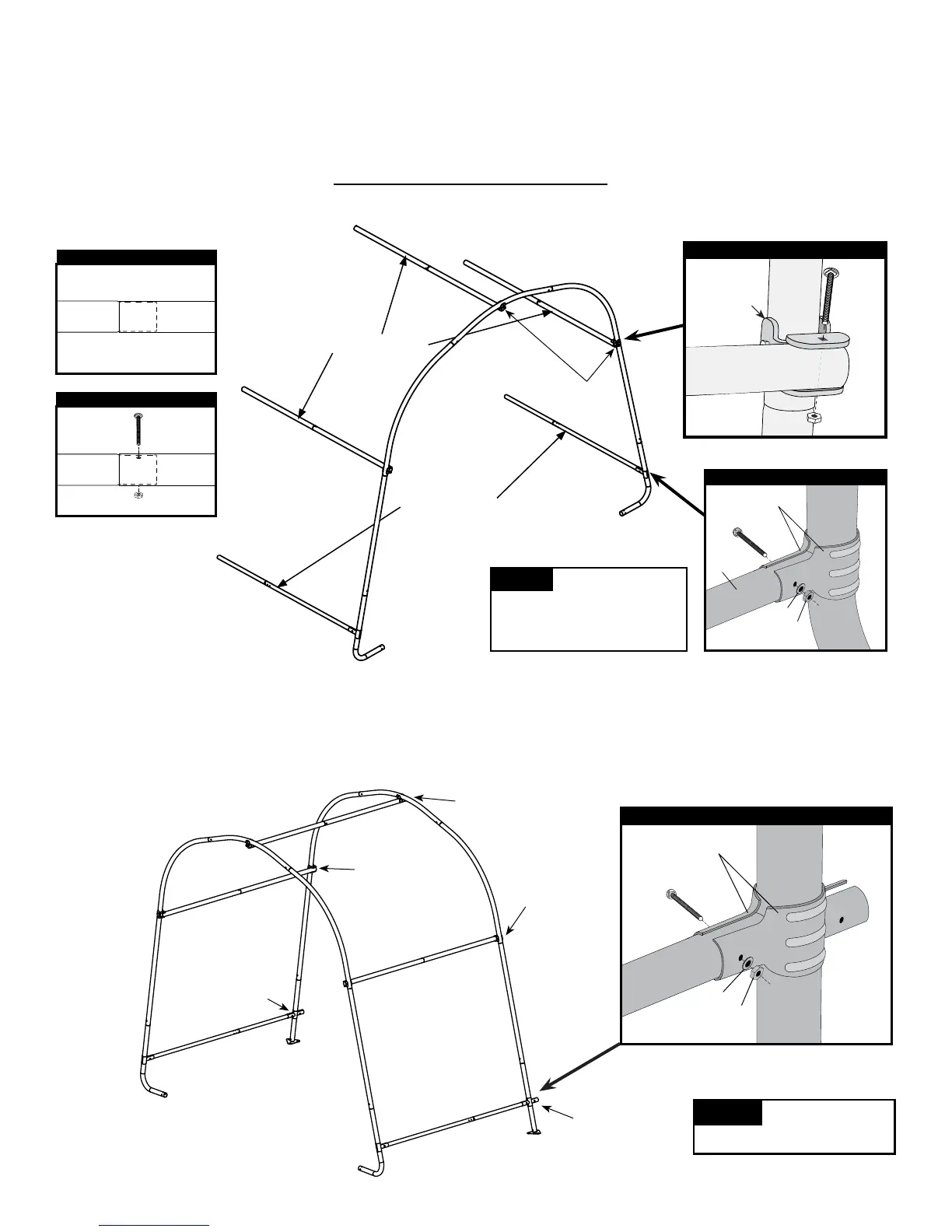

3. ATTACH CROSS RAILS AND COVER RAILS TO FRONT END RIB
4. CONNECT MIDDLE RIB TO FRONT END RIB
800939
800939
800939
800939
13201
13201
Assemble Cover Rails
ShelterLock II
®
connections use #03032 (1
7
/
8
") Bolts. Cover Rail Clamp connections use #10115 (1
5
/
8
") Bolts.
Cross Rails face toward the inside of the shed.
Cover Rails
NOTE:
The bolt heads at
the end ribs must be facing
outward to avoid damaging
your cover.
ShelterLock II
®
End Rib Connection
13345 800163
No Bolt at this connection
A
Assemble Cross Rails
800599 800599
10115
01010
B
C
800939
03032
01010
Cross Rail
D
10115
Cover
Rail
13202
End Rib
01011
01010
End Rib Cover Rail Clamps
10115
Cover Rail
13201
Middle
Rib
01010
01011
Middle Rib Cover Rail Clamps
NOTE:
All detail views
are from the inside.
