Shibaura CM314 - Differential Control; Transmission and PTO Controls

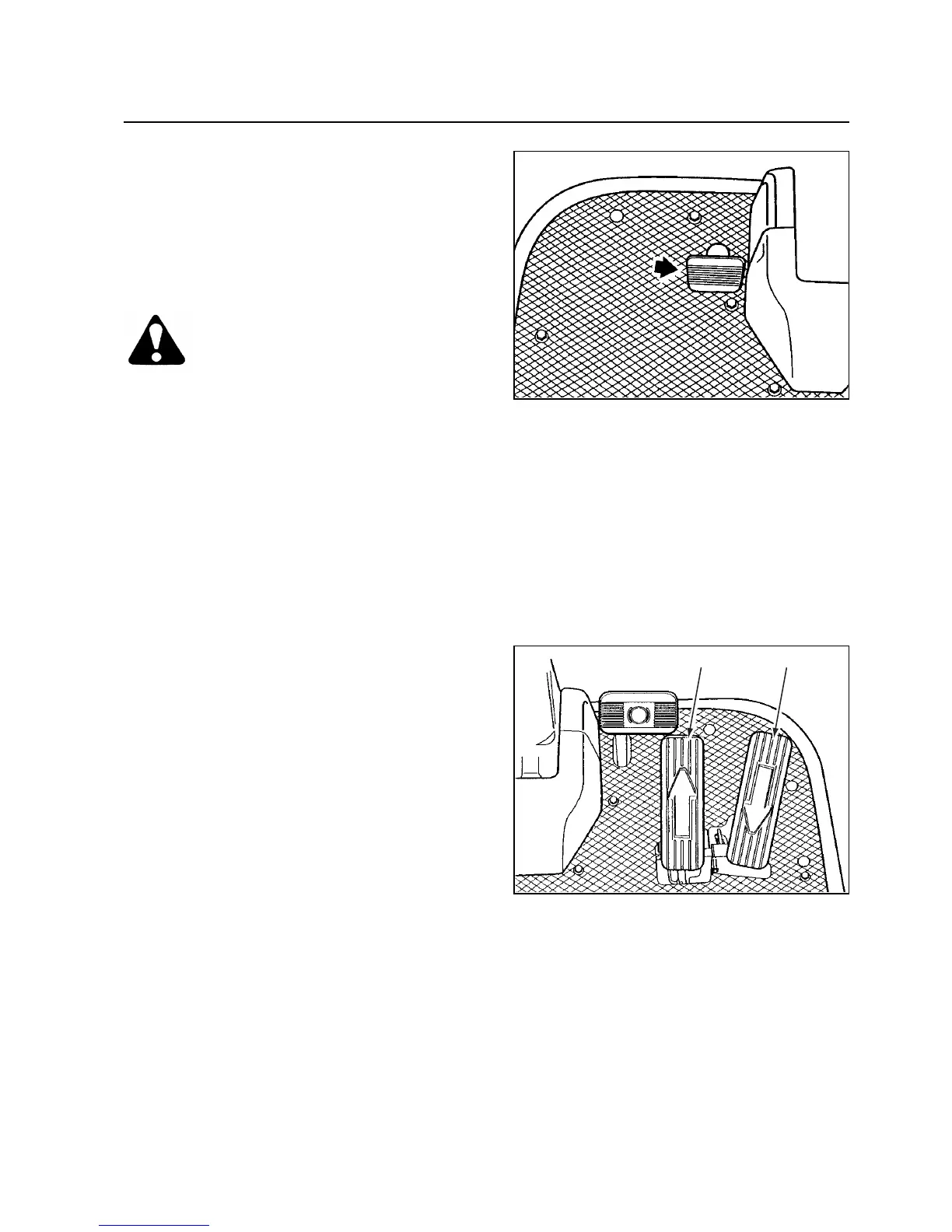

DIFFERENTIAL CONTROL
DIFFERENTIAL LOCK PEDAL
Depressing the pedal, locks the front axle shafts
together, providing additional traction in wet or
loose soil. Refer to page 2-17 for differential lock
operating information.
WARNING: THE CM MOWER IS VERY
DIFFICULT TO STEER WITH DIFFERENTIAL
LOCK APPLIED.
TRANSMISSION AND PTO CONTROLS
HST FOOT PEDALS
The ground speed of the unit is continuously
variable from zero to full rated speed in each
range.
The ground speed is controlled by HST foot
pedals. Depress the forward travel pedal A to
progressively increase forward speed. For
reverse travel, depress the reverse travel pedal
B.
NOTE: THE HST FOOT PEDALS MUST BE IN
NEUTRAL TO START THE ENGINE.
2-7
OPERATION
DIFFERENTIAL LOCK PEDAL
AB
HTS FOOT PEDALS
1. Forward Travel Pedal
2. Reverse Travel Pedal
