Oil pan

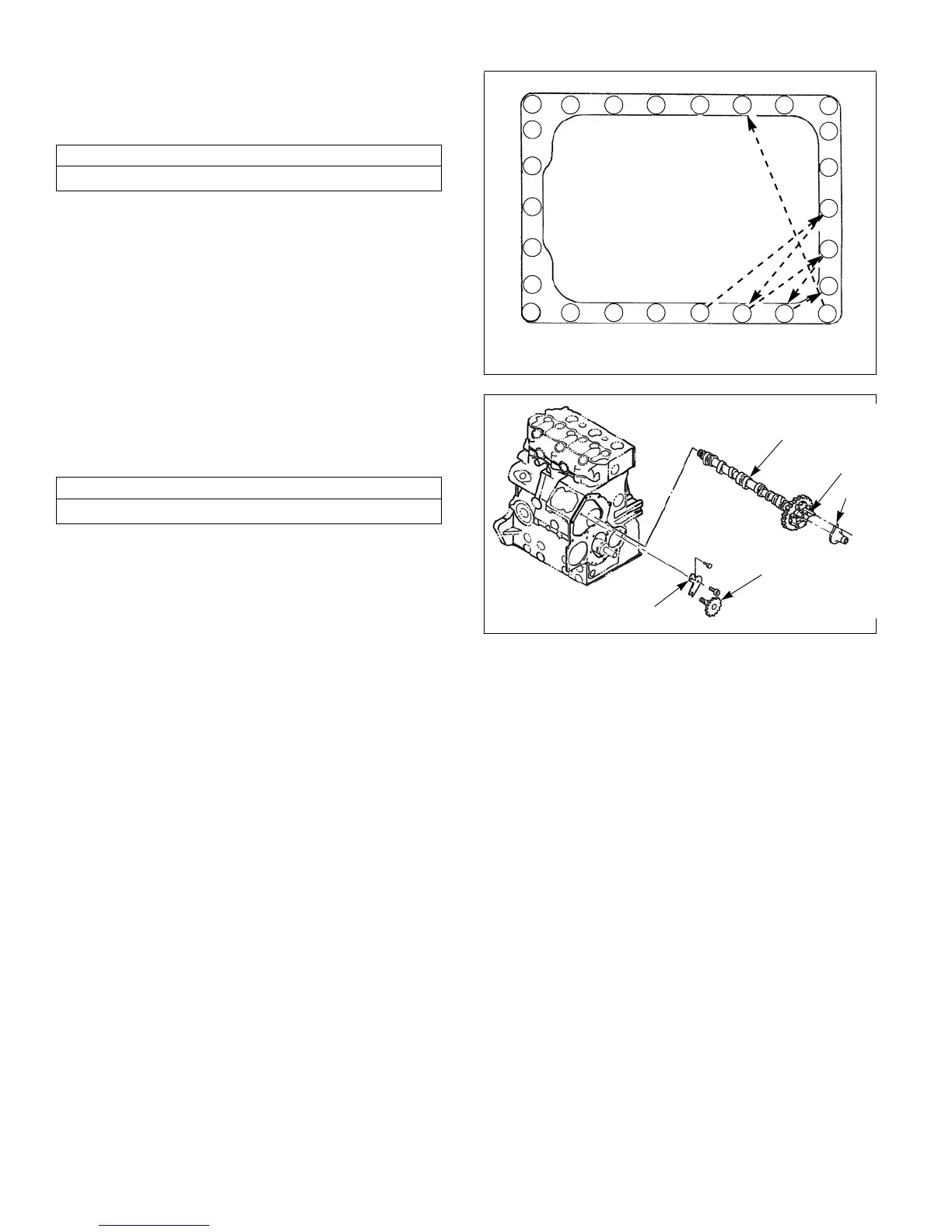

Start tightening the bolts of the oil pan from the center, then
tighten the opposing bolt on opposite side on the diagonal
and to specified torque. (See Fig. 4-9).
Oil dipstick · Dipstick guide
Install the oil level gauge and gauge guide using two O-
Rings.
Front plate
Install the front plate together with the gasket.
Camshaft assembly · Tachometer shaft plate
1. Install the tachometer shaft.
2. Install the cam shaft assembly (be careful with the
bearing).
3. Fix the tachometer shaft and cam shaft assembly
with the plate.
Note: When installing the timing gear case, align
the notch in the slider with the guide pin.
Bolt torque
7.4-9.6 lb
f
•ft (10–13 N·m) {1.0–1.3kgf·m}
Plate torque
79.7-115.1 lb
f
•in (9–13 N·m) {0.9-1.3 kgf·m}
Fig. 4-9
Fig. 4-10
141721 19
7
10
12
13
21
20
18
16
23
25
26
1 9 11152224
8
2
4 6
5
3
Guide pin
Slider
Camshaft
Idler gear
Plate
