Shibaura N843 - Oil Pressure Switch; Oil Pipe; Water Pump Assembly · Bypass Hose; Valve Cover

109823 2/09 4-9
Oil pressure switch
Oil pipe
Water pump assembly · Bypass hose
1. Install and tighten the gasket and water pump
assembly
➀.
2. Connect the thermostat case and water pump case
with bypass hose
➁.
3. Install the radiator hose
➂.
Valve cover
Tighten the valve cover evenly being careful not to damage
the O-ring.
Glow plug, Connector
Oil pressure switch tightening torque
88.5-106.2 lb
f
•in (10–12 N·m) {1.0–1.2 kgf·m}
Eye bolt torque
M8 88.5-115.1 lb
f
•in (10–13 N·m)
{1.0–1.3 kgf·m}
Head cover torque
88.5-106.2 lb
f
•in (10–12 N·m) {1.0–1.2 kgf·m}
Glow plug nut torque
8.9-13.3 lb
f
•in (1–1.5 N·m) {0.1–0.15 kgf·m}

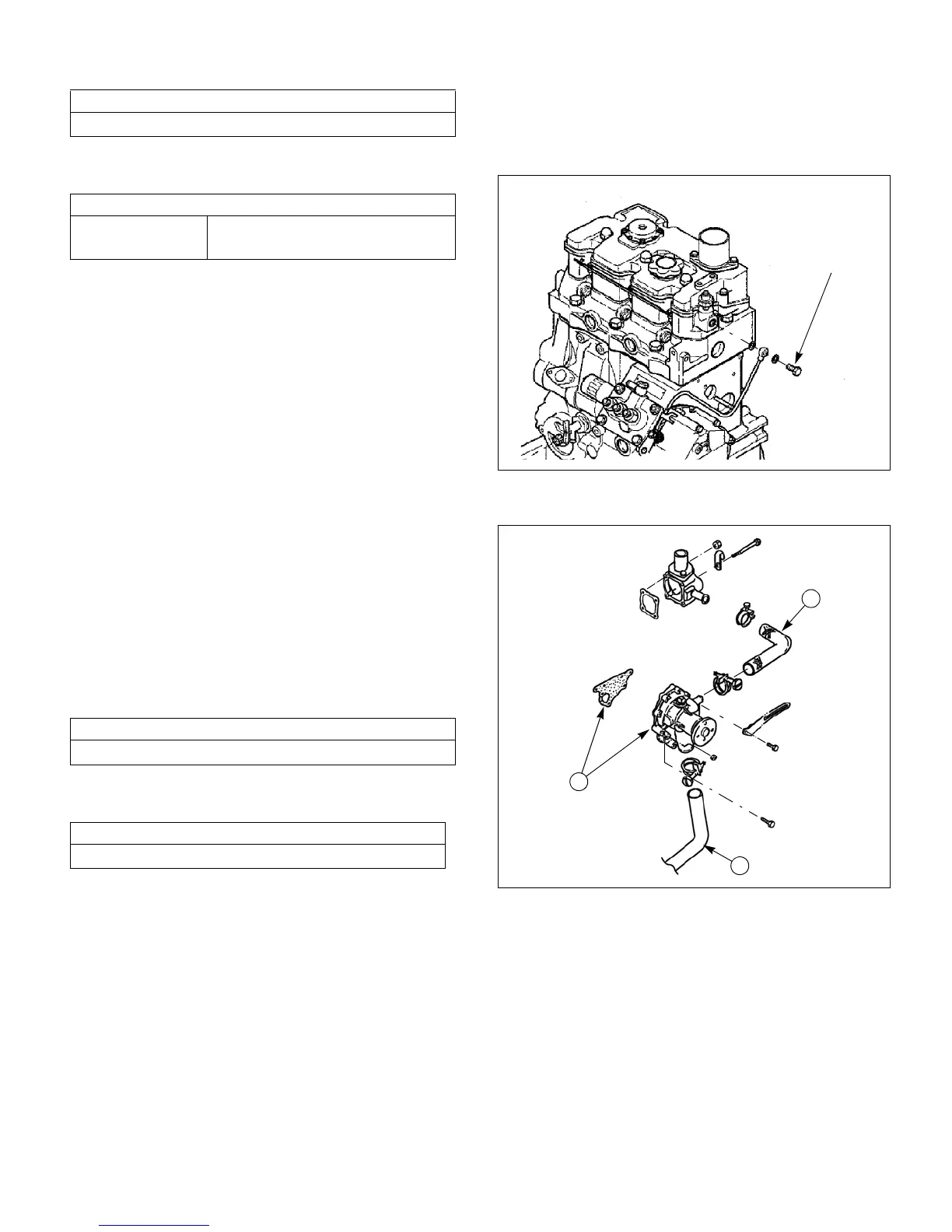

Fig. 4-21
Eye Bolt
Fig. 4-22
2
1
3
