6. BEFORE USE
When you purchase a complete set that consists of Drill Motor and Drill Stand, the packing is divided
into two packages. The drill motor H2021 (including carriage block) in the polyethylene bag is packed
in the carton box. The drill stand TS-255(800L/1000L) is packed in the carton box. The drill stand
TS-255(AB52) is packed in the carton box. Assemble the components as described in this manual
after unpacking.
6.1 Connecting the drill motor with the 30 mm spacer to the carriage block
WARNING
Make sure the drill motor is switched off and disconnected from the power supply.
Comply with the tightening torque stated on this manual. Inadequate torque may lead to
death or serious injury to the operators and others.
Remove 4 pieces of hex. socket bolts (M8x30) fixing the drill motor and the carriage block.
Use 4 pieces of hex. socket bolts (M8x60) and 4 pieces of spring washers (2-8) which are supplied
with the 30 mm spacer. The tightening torque is 35 Nm (25 lbf・ft) each.

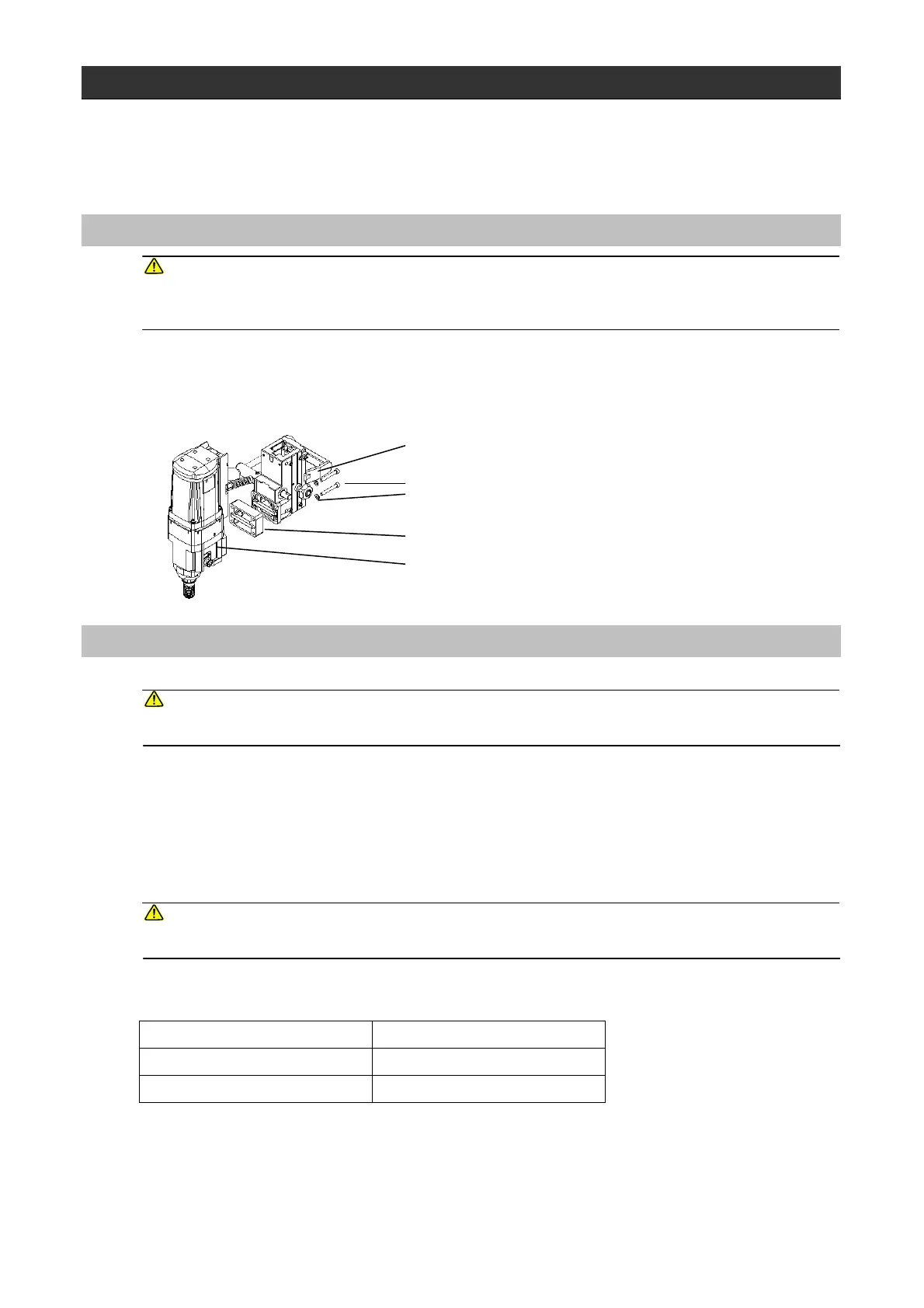

Refer to the figure below.
Carriage Block
Hex. Socket Bolt (M8x60)
Spring Washer (2-8)
30 mm Spacer
Drill Motor
6.2 PRCD, GFCI and RCD
220-240 V model
WARNING
Always use a Portable Residual Current Device (PRCD) also known as a Ground Fault Circuit
Interrupter (GFCI).
Test and reset the PRCD before each use.
1. Plug into an earthed/grounded power outlet.
2. Press the "I" or "RESET" button on the PRCD.
The indicator lights up.
3. Press the "0" or "TEST" button on the PRCD.
The indicator goes out.
100-120 V model
WARNING
Always use a Residual Current Device (RCD) also known as a Ground Fault Circuit Interrupter
(GFCI).
Refer to the manual of the RCD or GFCI.
Specifications of an RCD or GFCI
Power voltage 100-120 V
Breaking current 30 A or more
Current leakage 10 mA or less
