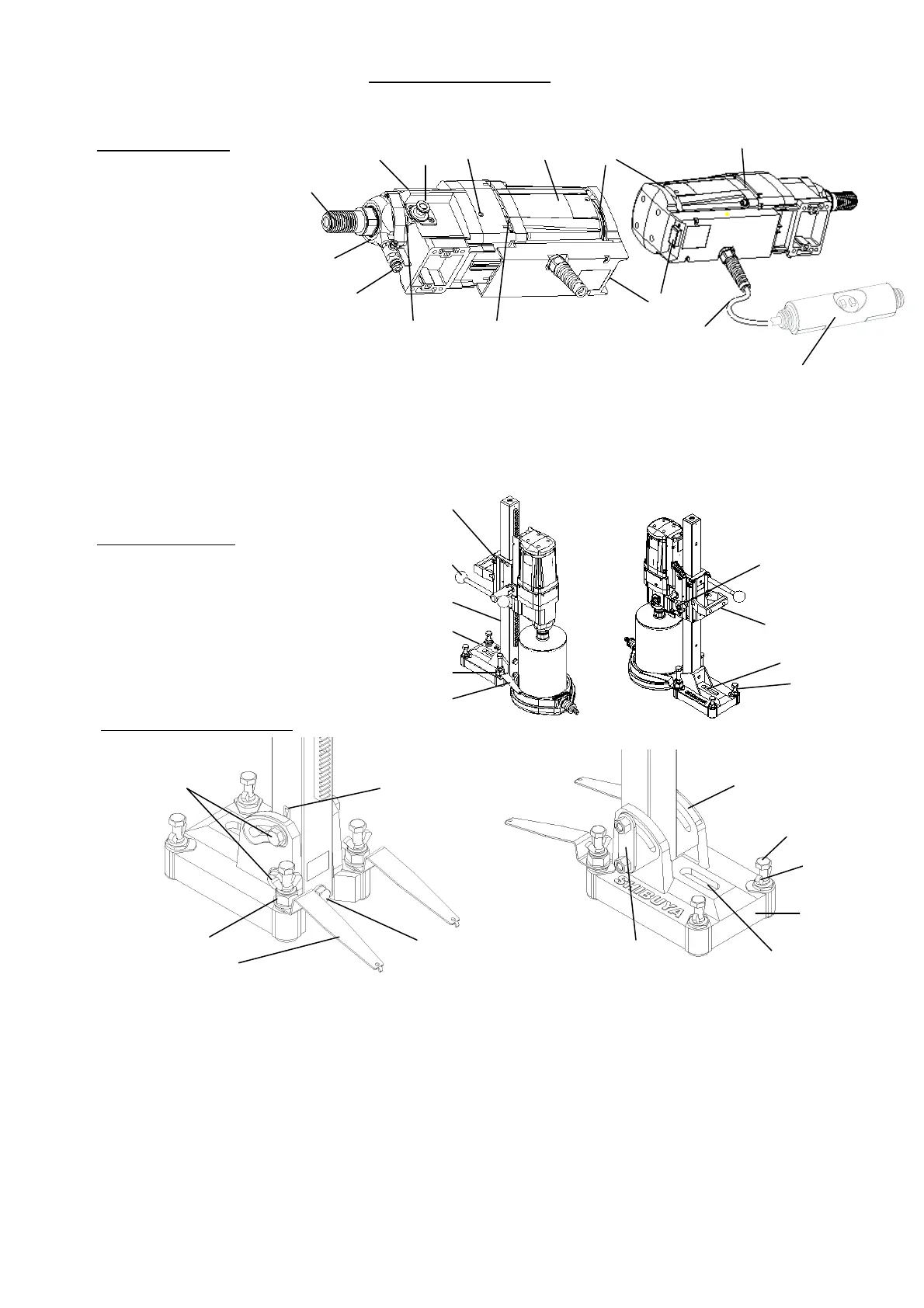

NAME OF EACH PART
H2021 Drill Motor
1. Gear Box
2. Motor
3. Spindle
4. Grease Inlet
5. GARDENA Connector /
Water Cock
6. Main Switch
(Circuit Protector)
7. Swivel Ring
8. Gear Change Knob
9. Air Inlet
10. Air Outlet
11. Power Cord
12. Water Leakage Hole
13. PRCD (220-240 V model only)
14. Carriage Block
15. Stopper-Knob (Carriage Brake)
16. Grip Handle
17. Quick Release Handle (Feed Handle)
TS-255 Drill Stand
18. Column
19. Anchor Slot
20. Leveling Bolt
21. Base
22. Beam
23. U-Nut
TS-255(AB52) Drill Stand
1. Hex Bolt M12x90 7. Angle Scale
2. U-Nut 8. Leveling Bolt
3. Beam 9. Flange Nut
4. Indication label 10. Base
5. Hex Bolt M12x70 11. Anchor Slot
6. Plate
Refer to the schematic drawings and parts lists attached at the end of this manual for names of more
specific parts.
