- 5 -
2. Disassembling and Assembling the Balance
2.1. TW/TX Series
2.1.1. Precautions

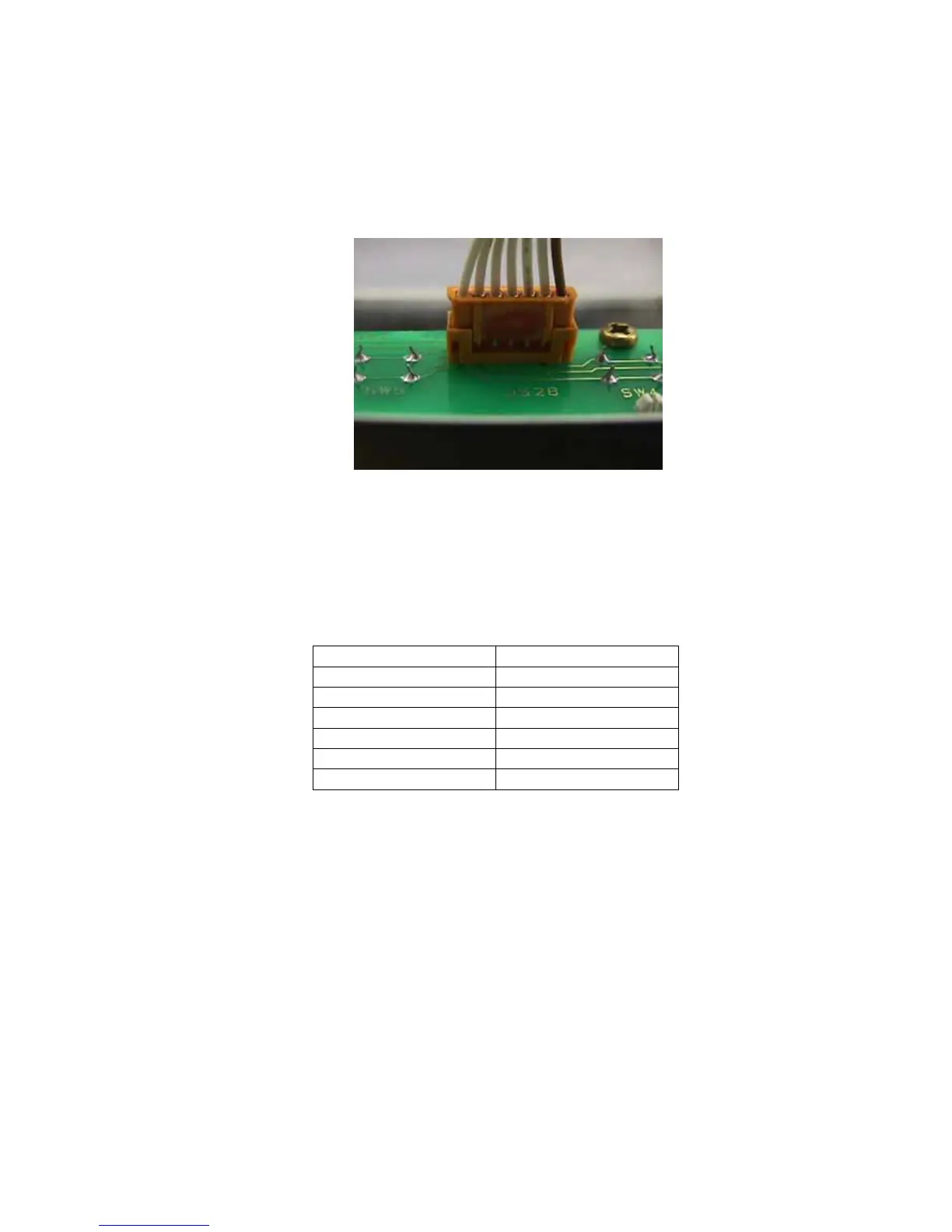

1) Pull the connector straight out when disconnecting. Never pull it out at a bent angle.
* Pulling out at a bent angle could bend the terminal pins, making it difficult to re-insert the
connector.
Fig. 1
2) For disassembly and assembly of the unit Assy TX(1), first insert the OPF positioning pin (J1) as far as the
line set in the lever fixing hole on the OPF surface.
* Lift slightly on the lever Assy (U7) to insert the pin. Be careful not to scratch the elastic support.
3) Use a controlled torque driver to tighten the screws to the torques shown in the table below.
Screw Torque [kgf-cm]
M2 1
M2.5 2.5
M3 pan head 9
M3 hexagonal socket head 15
M4 pan head 18
M4 hexagonal socket head 30
