E6000 Series
E6000 MANUALE8000 CONCEPT E8000 MANUAL E6000 CONCEPT
TROUBLE SHOOTING

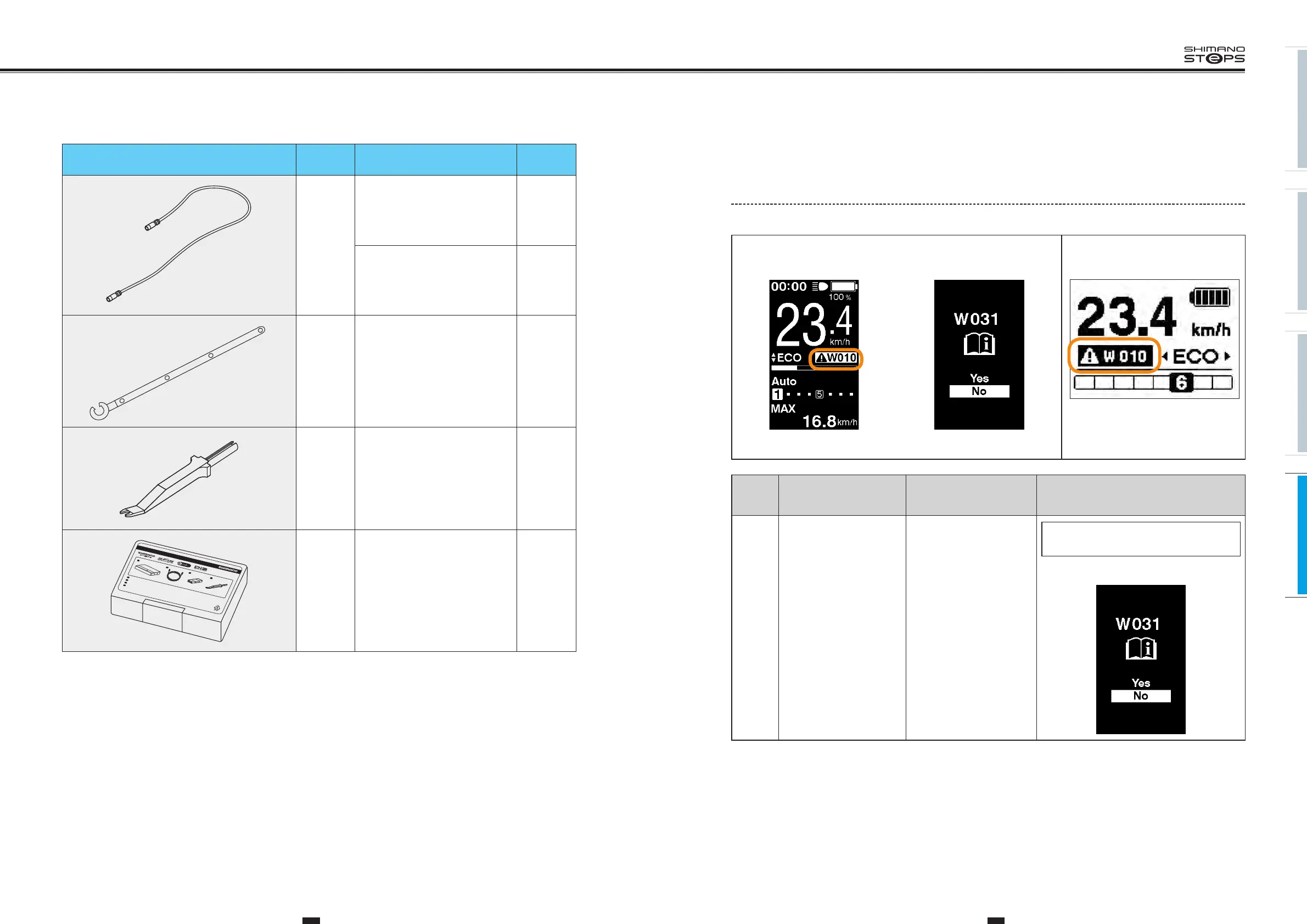

Warning Message On The Cycle Computer
This disappears if the error is fixed.
Cycle Computer <SC-E6010>
If the warning code "W031" has occurred.
Cycle Computer <SC-E6000>
Code
Situation where the error
occurred
Operational restrictions
when a warning is being
displayed
Remedy
W031
Displays when chain
tension has yet to be
adjusted or when the
installation angle of the
crank needs to be checked.
Does not display when
these have been checked
already via E-TUBE PROJECT
The assist functions do not
work. (Power gear shifting
does not work.)
<SC-E6010>
Select “Yes” if the chain tension and the
installation angle of the crank are correct.
Others
Model
Number
Description Code. No
EW-SD50
E-TUBE electric wire black
(1600mm) for connecting cycle
computer (SC) and drive unit (DU)
IEWSD50L160
E-TUBE electric wire black
(550mm) for connecting drive unit
(DU) and motor unit (MU) for DI2
shifting
IEWSD50L55
EW-SD50-I
Wire holder (cable-tie) for electric
wire EW-SD50 for internal routing.
1unit = 20pcs
IEWSD50ISM1
TL-EW02
Plug tool for connection and
disconnection of E-TUBE electric
wires
Y6VE16000
1
3
Systemkontrolle, PC-Link-Kabel (x2) 2m, USB-Kabel (x1) 50cm : SM-PCE1 (ISMPCE1)
Elektrische Kabel : EW-SD50 L=1400mm (IEWSD50L140)
Mehrfachsteckplatz (B) : SM-JC41 (ISMJC41)
Kabelwerkzeug : TL-EW02 (Y6VE16000)
1
2
3
4
2
4
E-TUBE ANSCHLUSS- UND EINSTELL-KIT
Case kit
E-TUBE PROJECT connecting &
setting device case kit
including:
- SM-PCE1 (PC linkage device with
USB cable)
- EW-SD50 (electric wire 1400mm)
- SM-JC41 (Junction B)
- TL-EW02 (Plug tool)
IETUBEKIT2E
