E6000 MANUALE8000 CONCEPT E8000 MANUAL E6000 CONCEPT

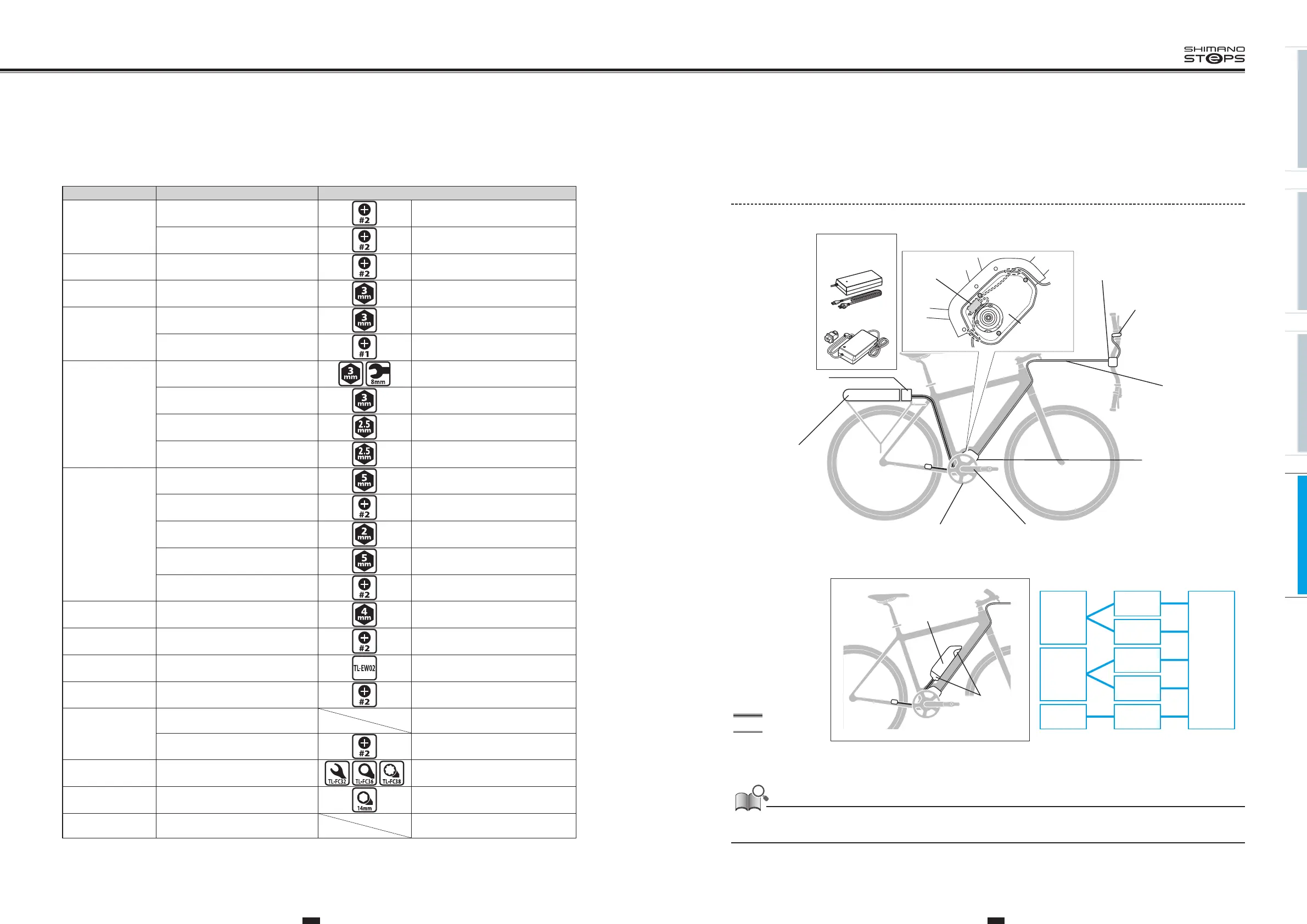

NAME OF PARTS
In the Case of Mechanical Gear Shifting (Rear)
<BT-E6000>
<BT-E6001>
Cycle computer
SC-E6010/E6000
Assist switch
SW-E6000
SW-E6010
Front chainring
SM-CRE60
Battery mount
BM-E6000
SM-BME60
Battery
(external type)
BT-E6001*
BT-E6000
Drive unit/Speed sensor
DU-E6001
DU-E6010
DU-E6002
DU-E6012
Crank arm
FC-E6000/FC-E6010
Adapter for Light
SM-DUE01
Electric wire
EW-SD50
Maximum cable length
≤1600 mm
Battery charger
SM-BCE60 +
SM-BCC1
EC-E6000
Drive unit
cover
SM-DUE60
<BT-E6010>
<BT-E8010>
BT-E6010
BT-E8010
SM-BME61
BM-E6010
BT-E6000
BT-E6001
SM-BME60
BM-E6000
BM-E8010
DU-E6001
DU-E6010
DU-E6002
DU-E6012
Compatibility of battery and battery mount
(Refer to Annex-1 (page 108) for detail.
Battery
(external type)
BT-E6010
BT-E8010*
Battery mount
BM-E6010
SM-BME61
BM-E8010
Wire harness
E-TUBE
*
If the firmware version of the drive unit is 3.2.6 or lower, the battery may not operate properly. Update the firmware version via E-TUBE PROJECT.
The drive specification may be of the belt type. In this case, the front chainring, rear sprocket and belt are supplied by the belt’s
manufacturer. Also, for details concerning assembly and adjustment, refer to the technical information provided by the belt manufacture.
LIST OF TOOLS TO BE USED
The following tools are required to assemble or remove the product.
Component Where to use Tool
Cycle computer
Handlebar fixing bolt
Screwdriver #2
Angle adjustment screw
Screwdriver #2
Assist switch
(SW-E6000)
Fixing bolt
Screwdriver #2
Assist switch
(SW-E6010)
Fixing bolt
3 mm hexagon wrench
Battery Mount
(SM-BME61)
Key unit
Mount lower case
3 mm hexagon wrench
Key unit cover
Mount upper case
Screwdriver #1
Battery Mount
(BM-E8010)
Mount lower case
3 mm hexagon wrench / 8 mm Spanner
Key unit
3 mm hexagon wrench
Key unit cover
2.5 mm hexagon wrench
Mount upper case
2.5 mm hexagon wrench
Battery Mount
(BM-E8020)
Mount lower case
5 mm hexagon wrench
Mount upper case
Screwdriver #2
Key cylinder
2 mm hexagon wrench
Key unit
5 mm hexagon wrench
Key unit cover
Screwdriver #2
Speed sensor Speed sensor fixing bolt
4 mm hexagon wrench
Magnet unit Mounting screw
Screwdriver #2
Electric wire Connector
TL-EW02
Light adapter Unit fixing screw
Screwdriver #2
Drive Unit
Frame installation bolt M8 bolt and nut-compatible*
Cover
fixing bolt (M3)
Screwdriver #2
Front chainring Lock ring
TL-FC32 / 36+TL-FC38
Crank arm Crank installation bolt
14 mm socket wrench
Chain Chain TL-DUE60
* For information on compatible tools, contact a manufacturer of completed bicycles.
