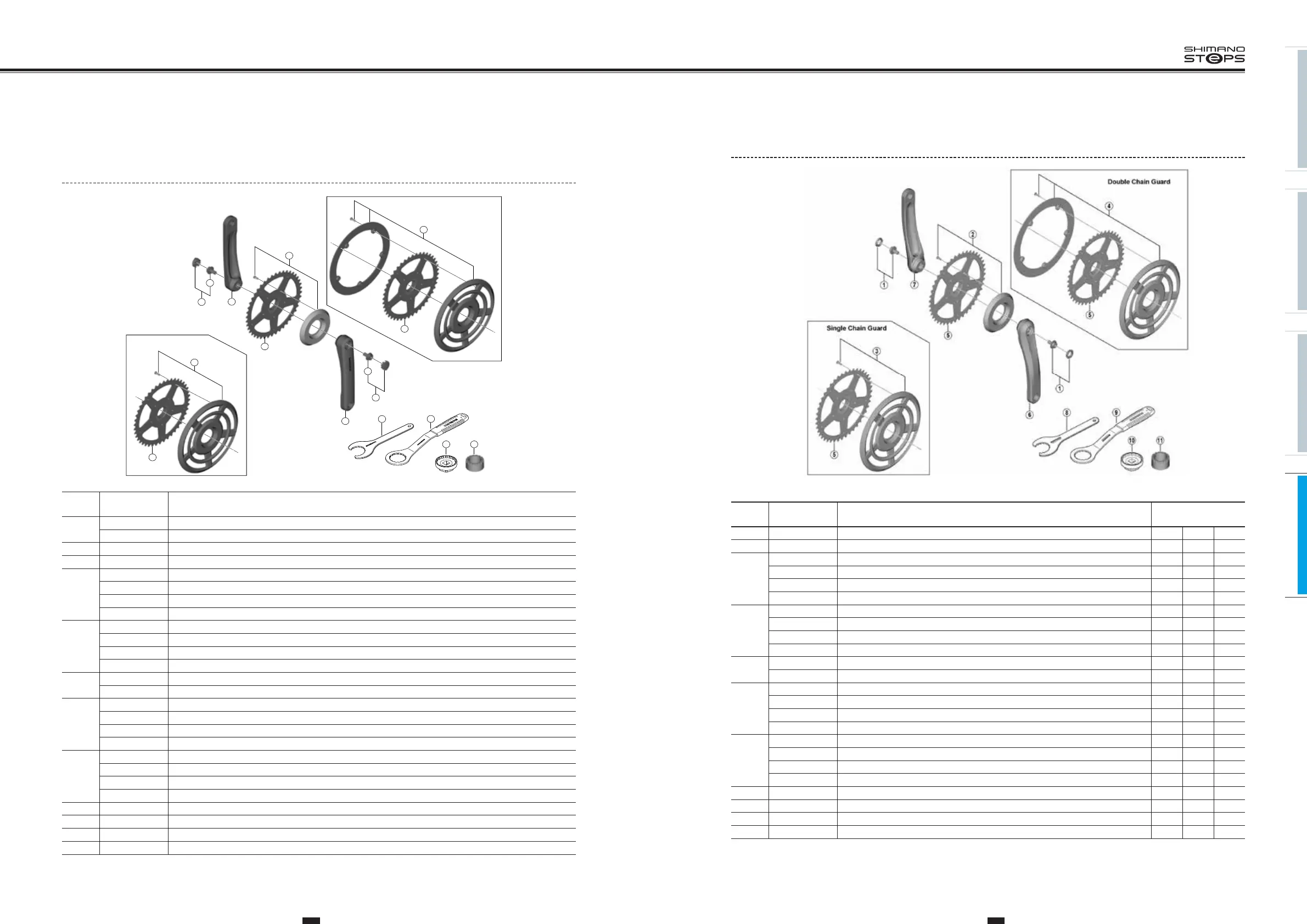

E6000 MANUALE8000 CONCEPT E8000 MANUAL E6000 CONCEPT
FC-E6000
Crank Arm
SM-CRE60
Gear
E6000 Series CrankSet
FC-E6000
Crank Arm
SM-CRE60
Gear
SHIMANO
CODE NO.
DESCRIPTION
1 Y1R298010 Crank Arm Fixing Bolt Unit
2 Y1SC02000 Crank Arm Fixing Bolt(M8 x 15)
3 Y1R298020 Chain Ring Cover & Fixing Bolt(5pcs.)
Y1R298030 38T Single Chain Ring Cover(1pcs.) & Fixing Bolt(1UNIT=5pcs.) for Black
* Y1R298070 38T Single Chain Ring Cover(1pcs.) & Fixing Bolt(1UNIT=5pcs.) for Gray
Y1R298040 44T Single Chain Ring Cover(1pcs.) & Fixing Bolt(1UNIT=5pcs.) for Black
* Y1R298080 44T Single Chain Ring Cover(1pcs.) & Fixing Bolt(1UNIT=5pcs.) for Gray
Y1R298050 38T Double Chain Ring Cover(1pcs.) & Fixing Bolt(1UNIT=5pcs.) for Black
* Y1R298090 38T Double Chain Ring Cover(1pcs.) & Fixing Bolt(1UNIT=5pcs.) for Gray
Y1R298060 44T Double Chain Ring Cover(1pcs.) & Fixing Bolt(1UNIT=5pcs.) for Black
* Y1R298100 44T Double Chain Ring Cover(1pcs.) & Fixing Bolt(1UNIT=5pcs.) for Gray
Y1Y400001 Chain Ring 38T
Y1Y400002 Chain Ring 44T
Y1R202000 Right Hand Crank Arm 170 mm
Y1R202100 Right Hand Crank Arm 175 mm
Y1R201000 Left Hand Crank Arm 170 mm
Y1R201100 Left Hand Crank Arm 175 mm
9 Y13009210 TL-FC32 Adapter Removal Tool
10 Y13098000 TL-FC36 Adapter Removal Tool
11 Y13009230 TL-FC33 Adapter Removal Tool
12 YEZY00010 TL-FC38 Adapter Removal Tool for DU-E6000/ DU-E6001
Apr.-2016-3762B
©
Shimano Inc. I
Specifications are subject to change without notice.
7
8
ITEM
NO.
4
5
6
J
A
P
A
N
T
L
-
F
C
3
2
T
L
-
F
C
3
6
T
A
I
W
A
N
9
10
11
12
2
1
7
8
6
6
2
1
4
5
3
6
Double Chain Guard
Single Chain Guard
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
*
1
Y1Y598010 Crank Arm Fixing Bolt Unit for Black
Y1R298010 Crank Arm Fixing Bolt Unit for Gray
2 Y1SC02000 Crank Arm Fixing Bolt (M8 x 15)
3 Y1R298020 Chain Ring Cover & Fixing Bolt (5 pcs.)
4
Y1R298030
38T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298070 38T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
Y1R298040
44T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298080 44T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
5
Y1R298050
38T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298090
38T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
Y1R298060
44T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298100
44T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
6
Y1Y400001 Chain Ring 38T
Y1Y400002 Chain Ring 44T
7
Y1Y502000 Right Hand Crank Arm 170 mm (Black)
Y1R202000 Right Hand Crank Arm 170 mm (Gray)
Y1Y502100 Right Hand Crank Arm 175 mm (Black)
Y1R202100 Right Hand Crank Arm 175 mm (Gray)
8
Y1Y501000 Left Hand Crank Arm 170 mm (Black)
Y1R201000 Left Hand Crank Arm 170 mm (Gray)
Y1Y501100 Left Hand Crank Arm 175 mm (Black)
Y1R201100 Left Hand Crank Arm 175 mm (Gray)
9 Y13009210 TL-FC32 Adapter Removal Tool
10 Y13098000 TL-FC36 Adapter Removal Tool
11 Y13009230 TL-FC33 Adapter Removal Tool
12 YEZY00010 TL-FC38 Adapter Removal Tool for DU-E6000/ DU-E6001
Jun.-2016-3762B
© Shimano Inc. I
*
*
*
*
FC-E6010/SM-CRE60
Crankset
E6000 Series Crankset
FC-E6010
SM-CRE60
F
C
-
E
6
0
0
0
SHIMANO
CODE NO.
DESCRIPTION
1 Y1FP98010 Crank Arm Fixing Bolt & Cap
B
2 Y1R298020 Chain Ring Cover & Fixing Bolt (5 pcs.)
Y1R298030 38T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298070 38T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
Y1R298040 44T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298080 44T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
Y1R298050 38T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298090 38T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
Y1R298060 44T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298100 44T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
Y1Y400001 Chain Ring 38T (SM-CRE60)
Y1Y400002 Chain Ring 44T (SM-CRE60)
Y1WT05010 Right Hand Crank Arm 170 mm (Black)
B
Y1WT05000 Right Hand Crank Arm 170 mm (Gray)
B
Y1WT03010 Right Hand Crank Arm 175 mm (Black)
B
Y1WT03000 Right Hand Crank Arm 175 mm (Gray)
B
Y1WT05110 Left Hand Crank Arm 170 mm (Black)
B
Y1WT05100 Left Hand Crank Arm 170 mm (Gray)
B
Y1WT03110 Left Hand Crank Arm 175 mm (Black)
B
Y1WT03100 Left Hand Crank Arm 175 mm (Gray)
B
8 Y13009210 TL-FC32 Adapter Removal Tool
9 Y13098000 TL-FC36 Adapter Removal Tool
10 Y13009230 TL-FC33 Adapter Removal Tool
11 YEZY00010 TL-FC38 Adapter Removal Tool
A: Same parts.
Jun.-2017-4292
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
©
Shimano Inc. I
Absence of mark indicates non-interchangeability.
Specifications are subject to change without notice.
6
7
ITEM
NO.
INTERCHANGE-
ABILITY
F
C
-
E
6
0
0
0
3
4
5
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
INTERCHANGE-
ABILITY
1 Y1FP98010 Crank Arm Fixing Bolt & Cap B
2 Y1R298020 Chain Ring Cover & Fixing Bolt (5 pcs.)
3
Y1R298030
38T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298070 38T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
Y1R298040 44T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298080 44T Single Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
4
Y1R298050 38T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298090 38T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
Y1R298060 44T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Black
Y1R298100 44T Double Chain Ring Cover (1 pc) & Fixing Bolt (1 Unit = 5 pcs.) for Gray
5
Y1Y400001 Chain Ring 38T (SM-CRE60)
Y1Y400002 Chain Ring 44T (SM-CRE60)
6
Y1WT05010 Right Hand Crank Arm 170 mm (Black) B
Y1WT05000 Right Hand Crank Arm 170 mm (Gray) B
Y1WT03010 Right Hand Crank Arm 175 mm (Black) B
Y1WT03000 Right Hand Crank Arm 175 mm (Gray) B
7
Y1WT05110 Left Hand Crank Arm 170 mm (Black) B
Y1WT05100 Left Hand Crank Arm 170 mm (Gray) B
Y1WT03110 Left Hand Crank Arm 175 mm (Black) B
Y1WT03100 Left Hand Crank Arm 175 mm (Gray) B
8 Y13009210 TL-FC32 Adapter Removal Tool
9 Y13098000 TL-FC36 Adapter Removal Tool
10 Y13009230 TL-FC33 Adapter Removal Tool
11 YEZY00010 TL-FC38 Adapter Removal Tool
A: Same parts.
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
Jun.-2017-4292
© Shimano Inc. I
FC-E6000
To Next Page
