E6000 Series
E6000 MANUALE8000 CONCEPT E8000 MANUAL E6000 CONCEPT

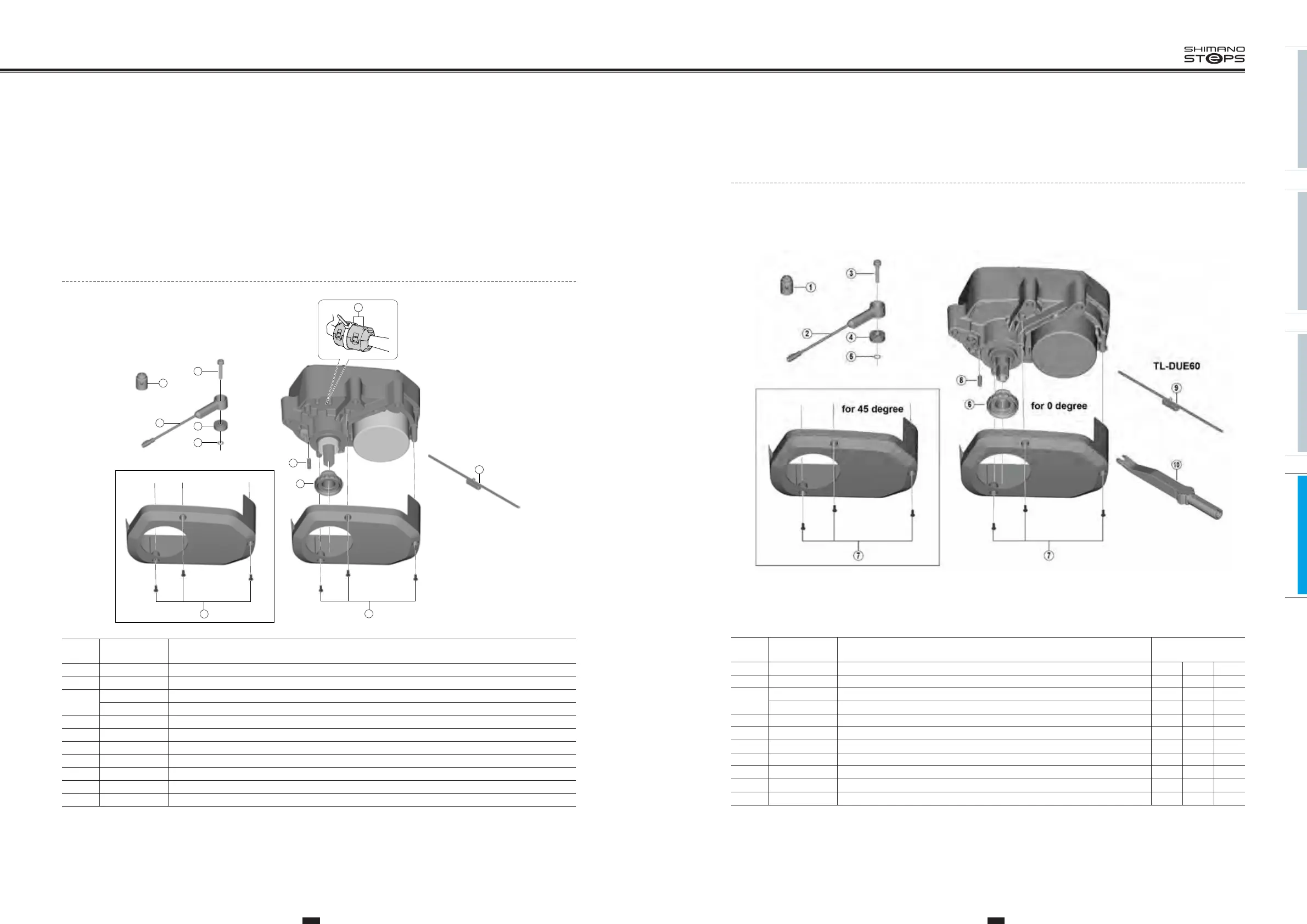

EXPLODED VIEW
See our website at http://si.shimano.com for the latest information.
DU-E6000
Drive Unit with Cover
DU-E6001/DU-E6010
Drive Unit
SM-DUE60
0 degree/45 degree Drive Unit Cover
E6000 Series Drive Unit
DU-E6000 Drive Unit with Cover DU-E6001 Drive Unit
DU-E6010 Drive Unit DU-E6050 Drive Unit
SM-DUE60 0 de
g
ree/45 de
g
ree Drive Unit Cover
1 Y70L98010 Magnet Unit
2 Y70L98020 Speed Sensor
Y70L000G0 Speed Sensor Fixing Bolt L16 (4 mm Hexagon Head)
Y70L000U0 Speed Sensor Fixing Bolt L22 (4 mm Hexagon Head)
4 Y70L000F0 Spacer
5 Y70L000M0 Toothed Washer
6 Y70L00010 Lock Ring
7 Y70L98030 Fixing Bolts (M3 x 8) set for SM-DUE60 0 degree and 45 degree
8 Y6VE15000 Dummy Plug
9 Y70L98040 Ferrite Core & Zip Tie
10 YEZY00002 Chain tension measurement tool TL-DUE60
A: Same parts. Jun.-2016-3761F
B: Parts are usable, but differ in materials, appearance, finish, size, etc. © Shimano Inc. I
Absence of mark indicates non-interchangeability.
Specifications are subject to change without notice.
3
ITEM
NO.
DESCRIPTION
SHIMANO
CODE NO.
1
2
3
4
5
9
10
TL-DUE60
for 0 degree
for 45 degree
7
8
6
7
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
1 Y70L98010 Magnet Unit
2 Y70L98020 Speed Sensor
3
Y70L000G0 Speed Sensor Fixing Bolt L16 (4 mm Hexagon Head)
Y70L000U0 Speed Sensor Fixing Bolt L22 (4 mm Hexagon Head)
4 Y70L000F0 Spacer
5 Y70L000M0 Toothed Washer
6 Y70L00010 Lock Ring
7 Y70L98030 Fixing Bolts (M3 x 8) set for SM-DUE60 0 degree and 45 degree
8 Y6VE15000 Dummy Plug
9 Y70L98040 Ferrite Core & Zip Tie
10 YEZY00002 Chain tension measurement tool TL-DUE60
A: Same parts.
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
Jun.-2016-3761F
© Shimano Inc. I
DU-E6002 /DU-E6012
Drive Unit
SM-DUE60
0 degree/45 degree Drive Unit Cover
E6000 Series Drive Unit
DU-E6002 DU-E6012
SM-DUE60 0 de
g
ree/45 de
g
ree Drive Unit Cover
SHIMANO
CODE NO.
DESCRIPTION
1
Y
70L98010
Magnet Unit
2
Y
70L98020
Speed Senso
r
Y
70L000G0
Speed Sensor Fixing Bolt L16 (4 mm Hexagon Head)
Y
70L000U0
Speed Sensor Fixing Bolt L22 (4 mm Hexagon Head)
4
Y
70L000F0
Space
r
5
Y
70L000M0
Toothed Washe
r
6
Y
70L00010
Lock Ring
7
Y
70L98030
Fixing Bolts (M3 x 8) set for SM-DUE60 0 degree and 45 degree
8
Y
6VE15000
Dummy Plug
9
Y
EZY00002
Chain tension measurement tool TL-DUE60
10
Y
6VE16000
TL-EW02 Plug Tool
A: Same parts. Jun.-2017-4290
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
© Shimano Inc. I
Absence of mark indicates non-interchangeability.
Specifications are subject to change without notice.
ITEM
NO.
INTERCHANGE-
ABILITY
3
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
INTERCHANGE-
ABILITY
1 Y70L98010 Magnet Unit
2 Y70L98020 Speed Sensor
3
Y70L000G0 Speed Sensor Fixing Bolt L16 (4 mm Hexagon Head)
Y70L000U0 Speed Sensor Fixing Bolt L22 (4 mm Hexagon Head)
4 Y70L000F0 Spacer
5 Y70L000M0 Toothed Washer
6 Y70L00010 Lock Ring
7 Y70L98030 Fixing Bolts (M3 x 8) set for SM-DUE60 0 degree and 45 degree
8 Y6VE15000 Dumm Y Plug
9 YEZY00002 Chain tension measurement tool TL-DUE60
10 Y6VE16000 TL-EW02 Plug Tool
A: Same parts.
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
Jun.-2017-4290
© Shimano Inc. I
