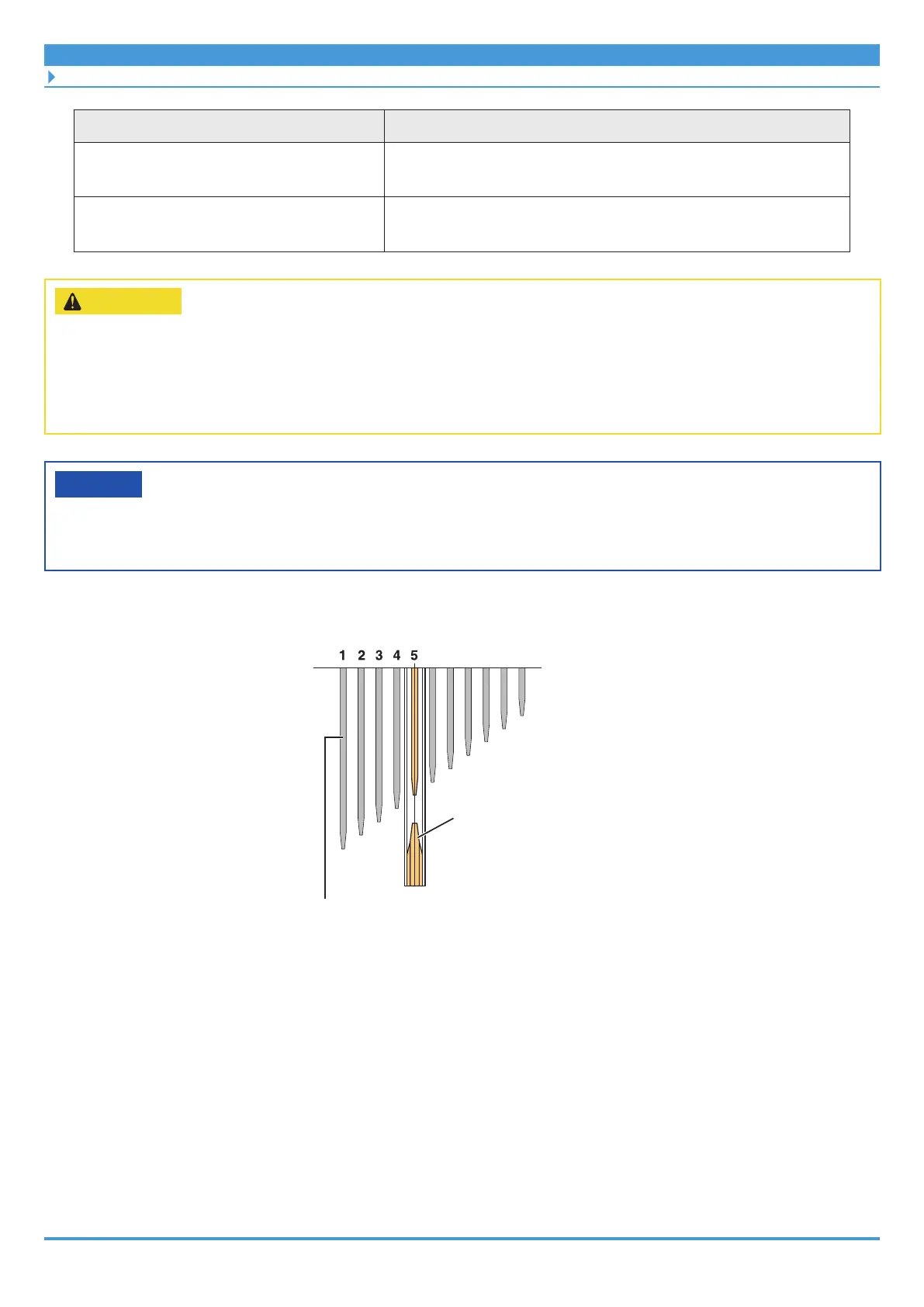

Gear shifting adjustment when using junction [A]
Notation Operation
<▲>
Indicates an operation for pressing the switch-X of the
shifting switch.
<▼>
Indicates an operation for pressing the switch-Y of the
shifting switch.
CAUTION
• Refer to the dealer's manual of the shifting unit first to confirm whether adjustment is
required before adjusting. Under normal conditions, performing unnecessary
adjustment may worsen gear shifting performance. Improper adjustment may cause
gear engagement skipping, resulting in an accidental fall.
NOTICE
• Mount the bicycle to a maintenance stand or otherwise secure it in place so that the
rear wheel can be spun freely.
1. <▲><▼> (shift to the fifth gear position from the largest sprocket)
Rear derailleur
guide pulley
Largest sprocket
