SHIMGE PW - Page 12

WZB Series
1
2
3
4
5
6
7
8
9
10
11
12
17
13
18
14
15
19
20
21
22
23
16
24
2627
28
29
30
31
32
33
25

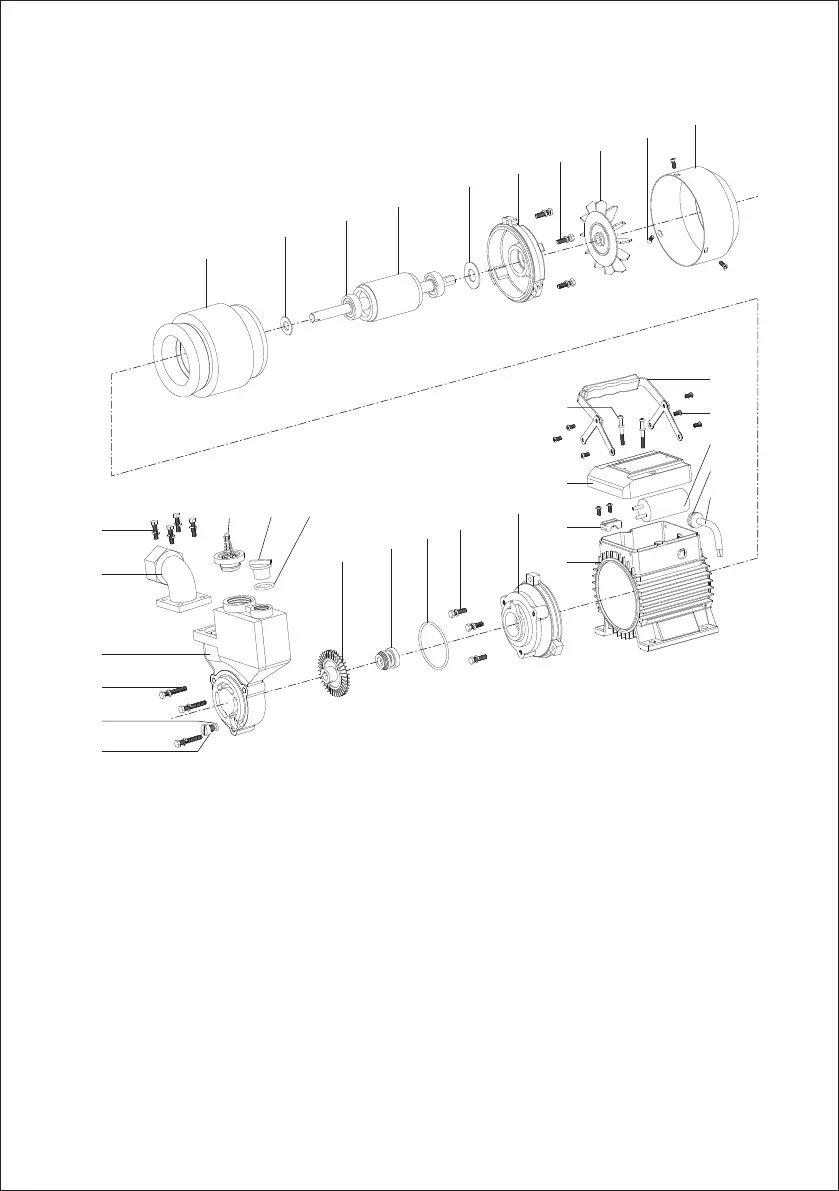

1 Fan housing
2 Countersunk Flat
Head Screws
3 Fan
4 Hexagon Head Bolts
5 Rear Cover
6 Wavy Spring
7 Rotor
8 Bearing
9 Flat Washer
10 Stator
11 Handle
12 Cross Recessed Small
Pan Head Screw
13 Capacitor
14 Cable Sheath
15 Cable
16 Countersunk Flat
Head Screws
17 Erminal Box Cover
18 Cable Pressing Plate
19 Stator Housing
20 Connector
21 Hexagon Head Bolts
22 O-ring
23 Mechanical Seal
24 Impeller
25 O-ring
26 Vent Cock
27 Check Valve
28 Hexagon Head Bolts
29 Water Inlet
30 Pump Body
31 Hexagon Head Bolts
32 O-ring
33 Slotted Cheese
Head Screws
