SHIMGE PW - Exploded View

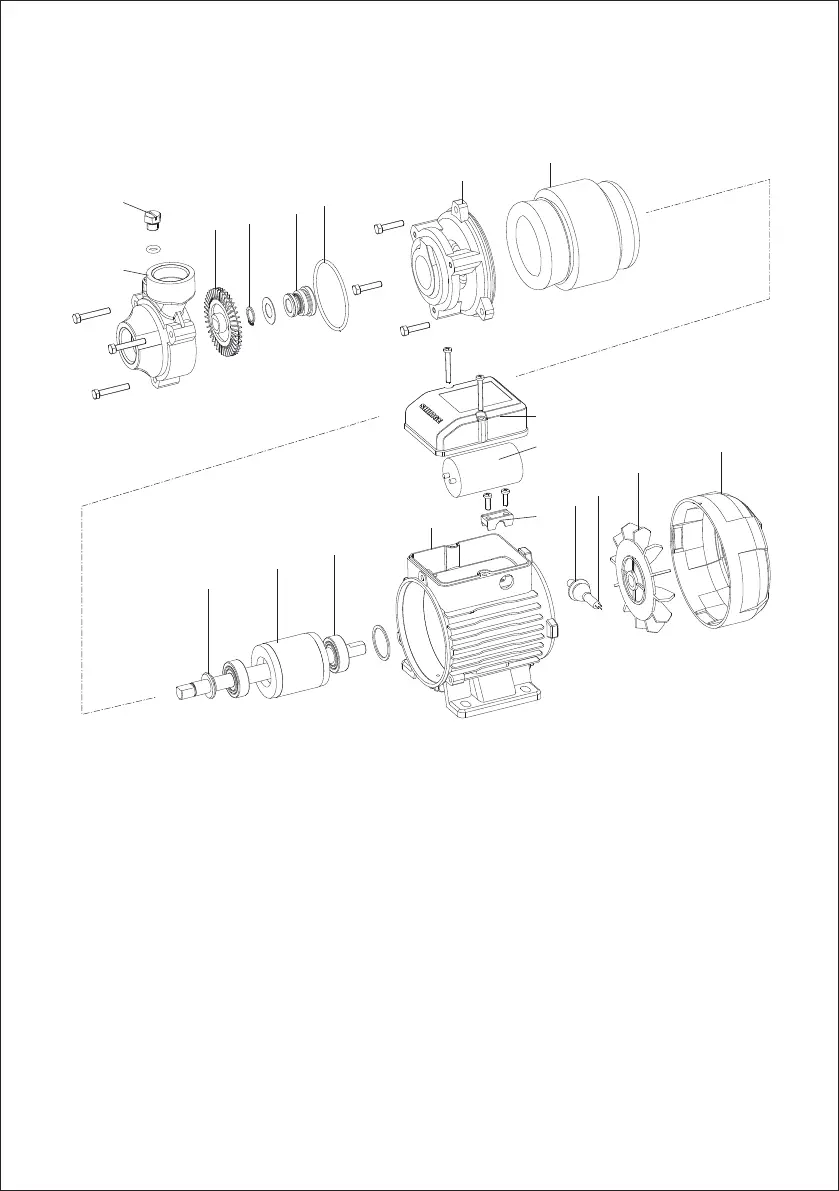

IV. Exploded View
QB Series
11 Cable
12 Cable Sheath
13 Terminal Box
14 Capacitor
15 Cable Pressing Plate
16 Stator Housing
17 Bearing
18 Rotor
19 Water Deflector
1
2
3
4
5
6
7
9
8
10
11
12
13
15
16
17
19
14
1 Stator
2 Connector
3 O-ring
4 Mechanical Seal
5 Circlip
6 Impeller
7 Vent Cock
8 Pump Body
9 Fan Housing
10 Fan
18
4
