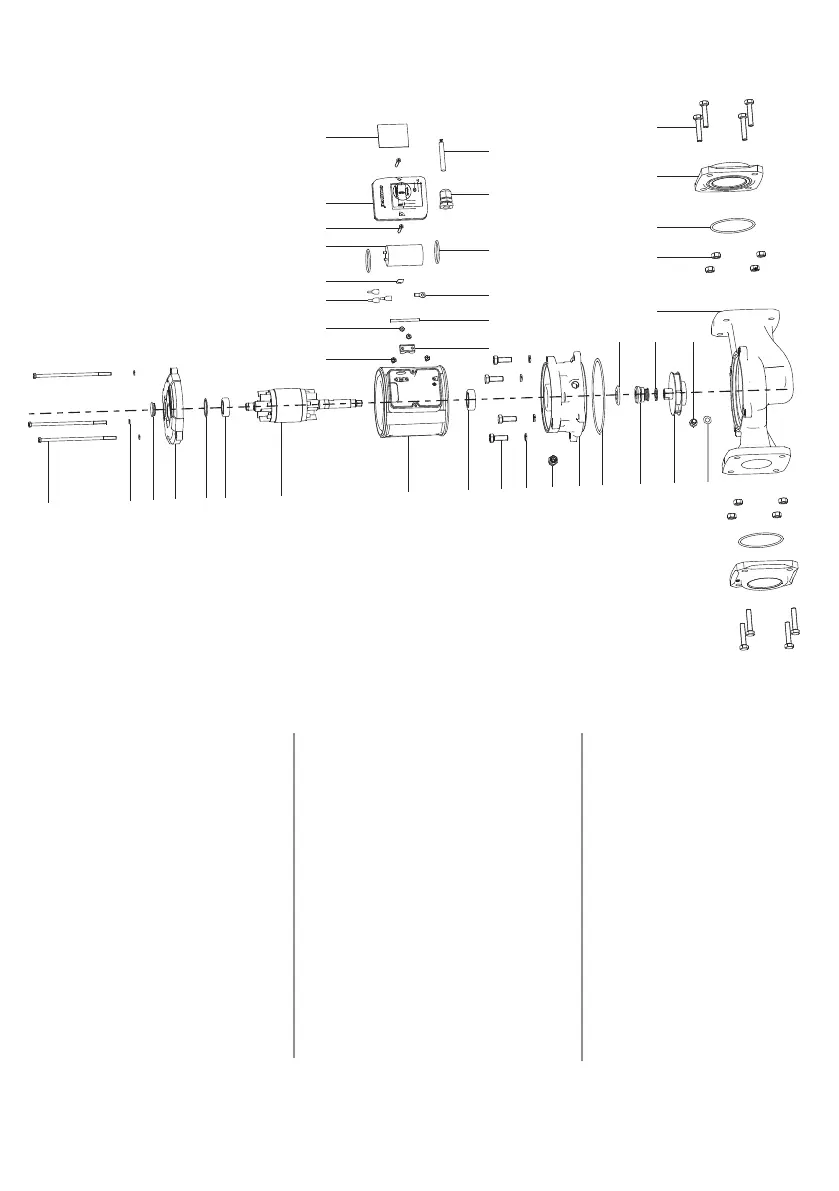

SHIMGE SHF - Structure Diagram - CPH

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30 32
34
29
31
33
35
36
37
38
39
CPH
Hexagon bolt
Spring washer
Rubber washer
End cover
Waved spring
Bearing
Rotor
Stator and motor case
Cross-recessed
flange-face screw
External-teeth lock washer
Closed-end terminal
Grounding symbol
Capacitor
1
2
3
4
5
6
7
8
9
10
11
12
13
Cross-recessed small pan
head screw
Terminal box
Nameplate
Cable
Cable locking head
O ring
Terminal
Heat shrink tubing
Press plate for the cable
Bearing
Hexagon bolt
Spring washer
Air faucet
14
15
16
17
18
19
20
21
22
23
24
25
26
Coupling
O ring
Water faucet
Mechanical seal
Shaft sleeve
Impeller
Slotted cheese-head
screw
O ring
Pump body
I-shaped hex nut
O ring
Inlet
Hexagon bolt
27
28
29
30
31
32
33
34
35
36
37
38
39
