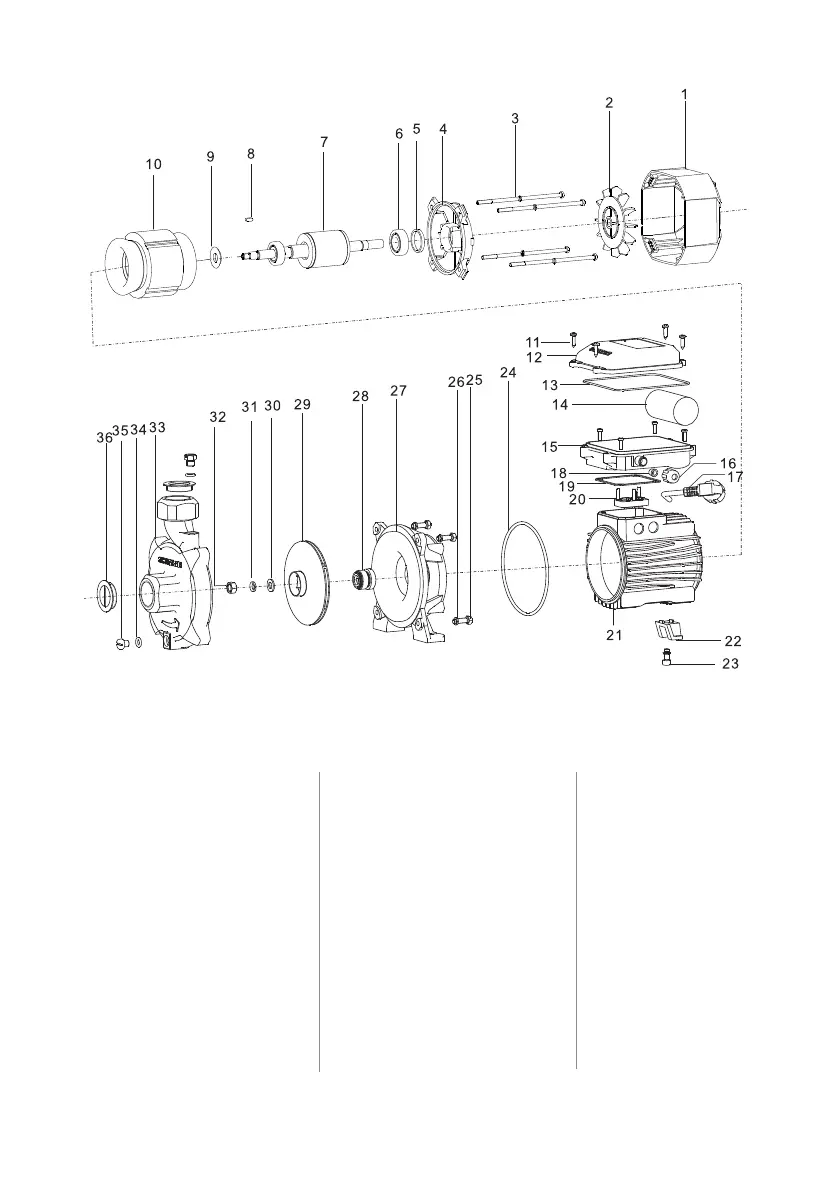

IV. Structure Diagram
Fan cover
Fan
Hexagon bolt
End cover
Waved spring
Bearing
Rotor
Key
Waterproof ring
Stator
Cross-recessed pan-headed
self-tapping screw
Terminal box cover
1
2
3
4
5
6
7
8
9
10
11
12
Rubber washer
Capacitor
Terminal box
Nut of the terminal box
Cable
Cable sheath
Rubber washer
Terminal board
Motor Housing
Foot
Hexagon socket
head screw
O ring
13
14
15
16
17
18
19
20
21
22
23
24
Hexagon bolt
Spring washer
Coupling
Mechanical seal
Impeller
Flat washer
Spring washer
I-shaped hex nut
Pump body
O ring
Slotted cheese-head
screw
Dust cover
25
26
27
28
29
30
31
32
33
34
35
36
