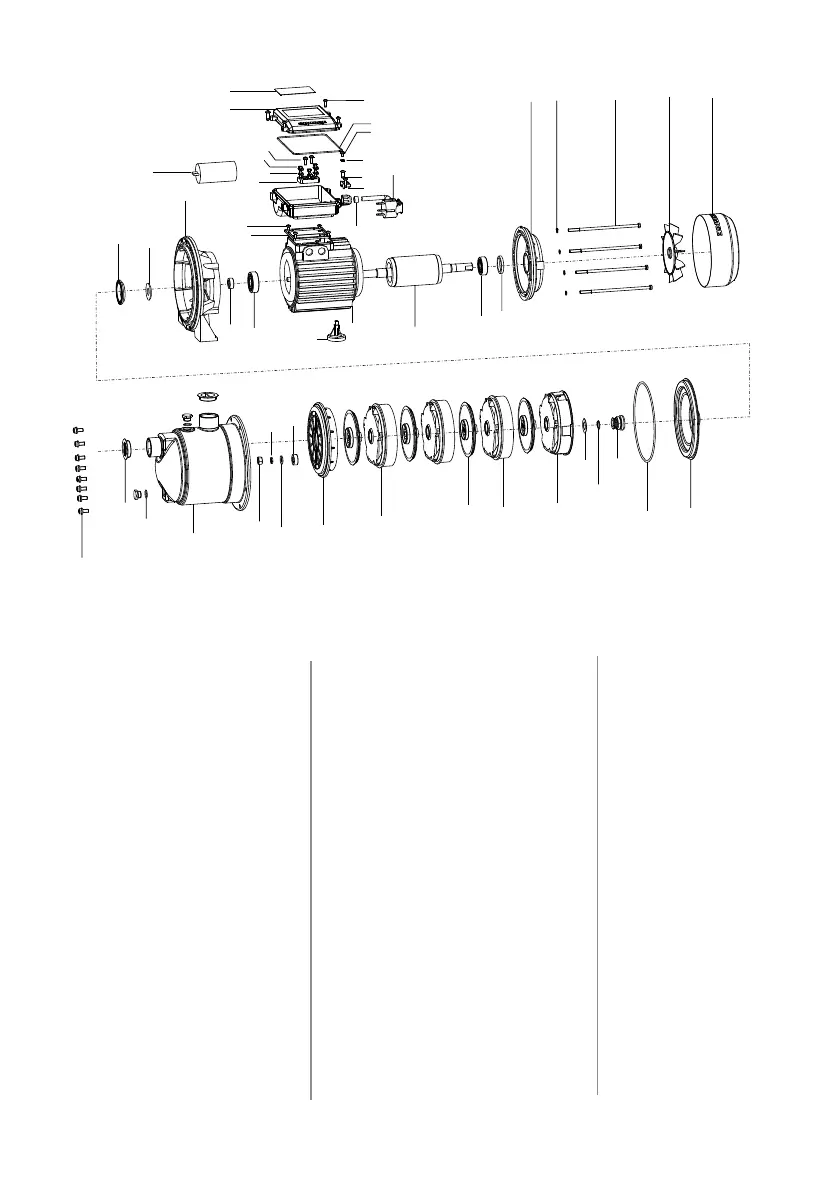

SHIMGE SHF - Structure Diagram - PX(m)

33
34
35
36
37
39
38
40
41
42
43
44
45
46
47
48
49
50
21
22
23
24
25
1
2
3
6
16
17
18
14
15
13
11
12
4
5
7
8
9
10
19
20
32
31
30
29
28
27
26
PX(m)
Rubber washer
Waterproof ring
Coupling
Rubber gasket
Cross-recessed small pan
head screw
Capacitor
Terminal board
Terminal
I-shaped hex nut
Cross-recessed small pan
head screw
Terminal box cover
Nameplate
Cross-recessed pan-headed
self-tapping screw
Rubber washer
Screw-washer assembly
External-teeth lock washer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Cross-recessed pan-headed
self-tapping screw
Press plate for the cable
Cable sheath
Cable
End cover
Spring washer
Hexagon-headed bolt
Fan
Fan cover
Waved spring
Bearing
Rotor
Stator & Motor case
Foot
Bearing
Flange-face hexagon
socket cap screw
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Dust cover
Air faucet
O ring
Pump body
I-shaped hex nut
Spring washer
Flat washer
Lining
Guide vane plate
Guide vane
Impeller
Fluid director
Rear guide vane
Flat washer
Circlip for the shaft
Mechanical seal
O ring
Pump cover
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
