18(64)
2.3 Drawing and Parts List

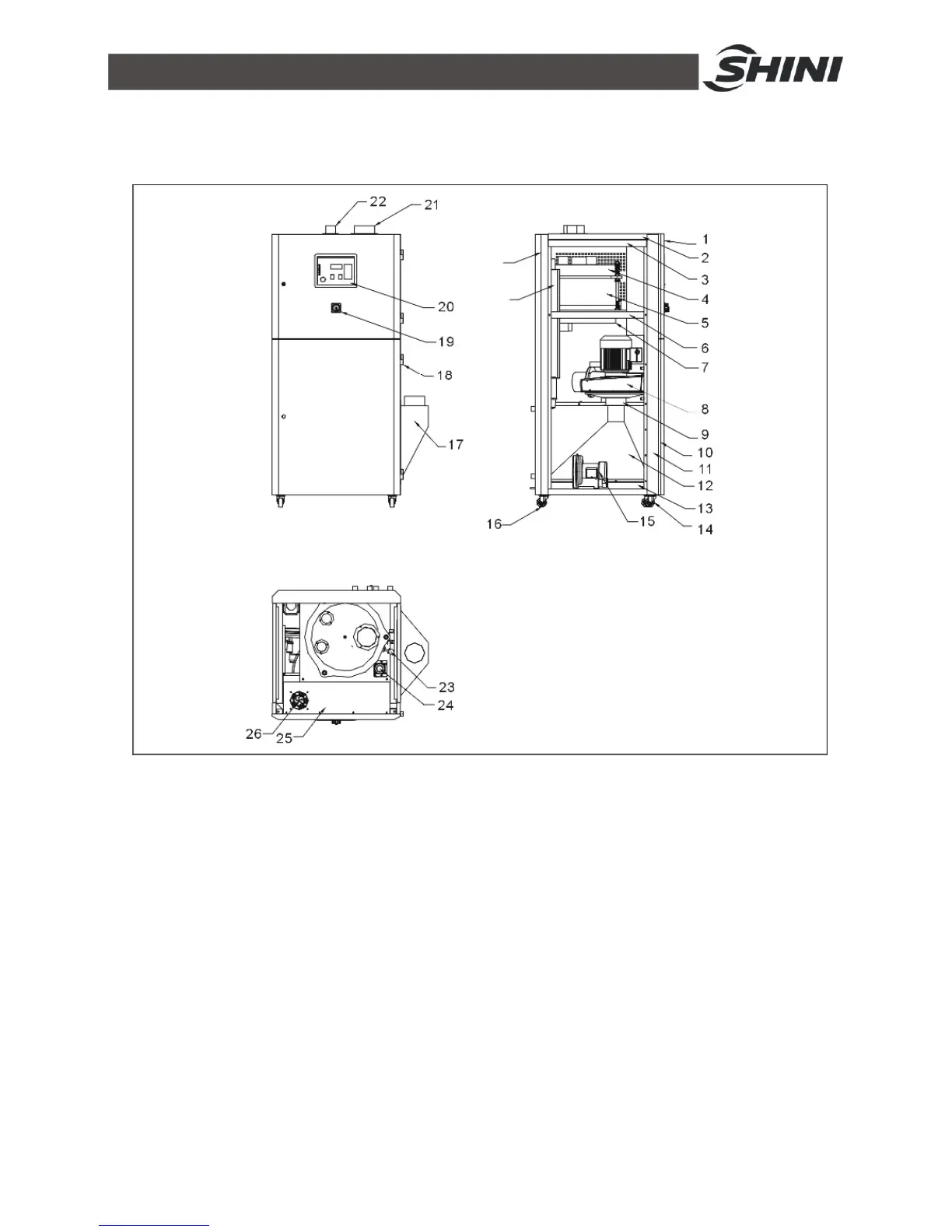

2.3.1 Structural Drawing
Parts name:
1. Upper door plate 2. Top board 3. Side fixed plate
4. Honey comb upper lid 5. Honeycomb 6. Left middle beam
7. Honey comb lower lid 8. Process blower 9. Circulation air inlet flange
10. Lower door plate 11. Front erect post 12. Air collection hood
13. Dew channel 14. Caster 15. Regeneration blower
16. Brake truckle 17. Backing air hood 18. Hinge
19. Main power supply switch 20. Control panel. 21. Drying air outlet
22. Regenerating air outlet 23. Belt adjustor 24. Decreasing motor
25. Control box 26. Air exhausting fan
Picture 2-2：Structural Drawing
