23(64)

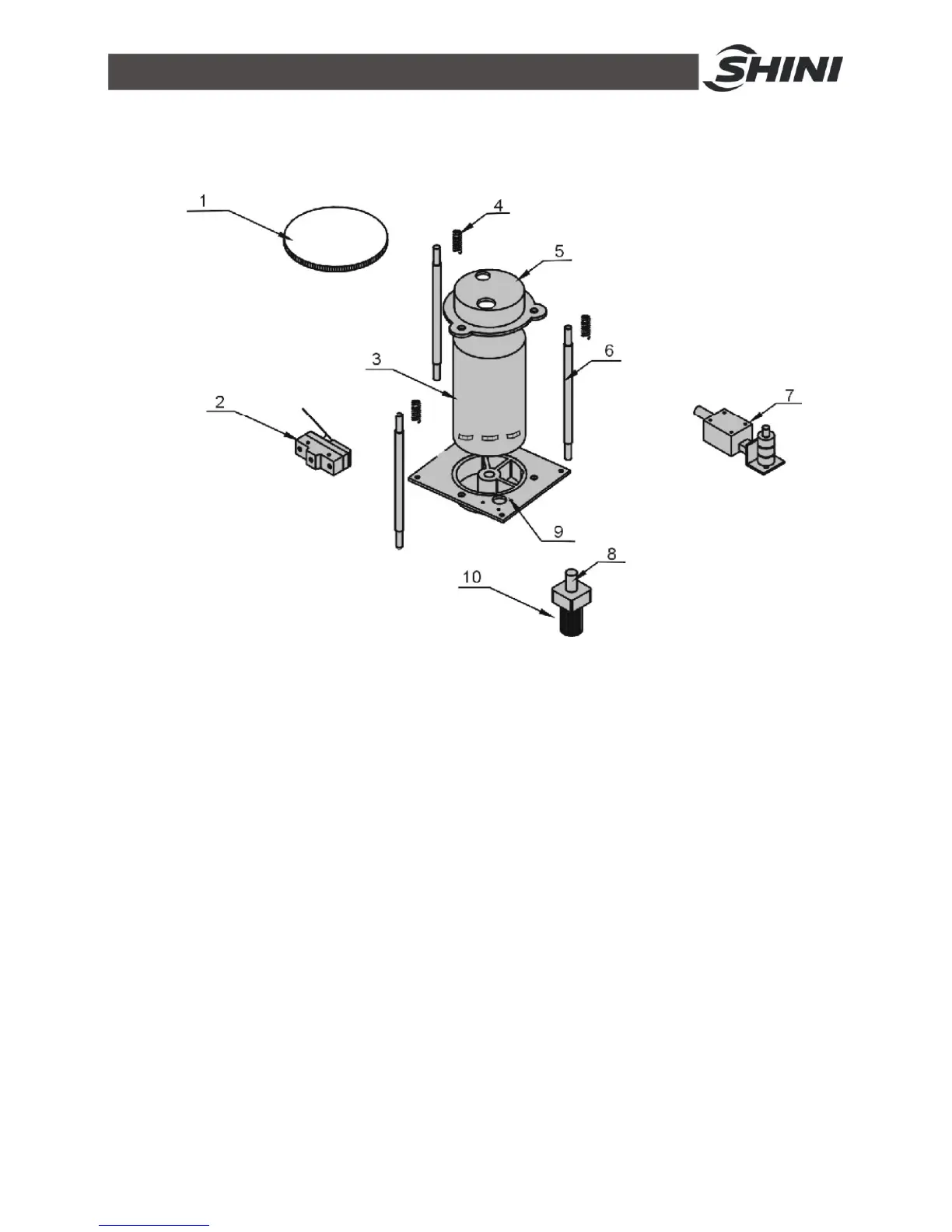

2.3.5 Honeycomb
Parts name:
1. Transmission belt 2. Microswitch 3. Honeycomb 4. Spring
5. Honeycomb cap 6. Bolt with two heads 7. Belt adjuster 8. Wheel
9. Honeycomb bottom cap 10. Gear motor
Picture 2-5：Honeycomb
