4. INTERCONNECTION
VM-5S
-9-
4-2

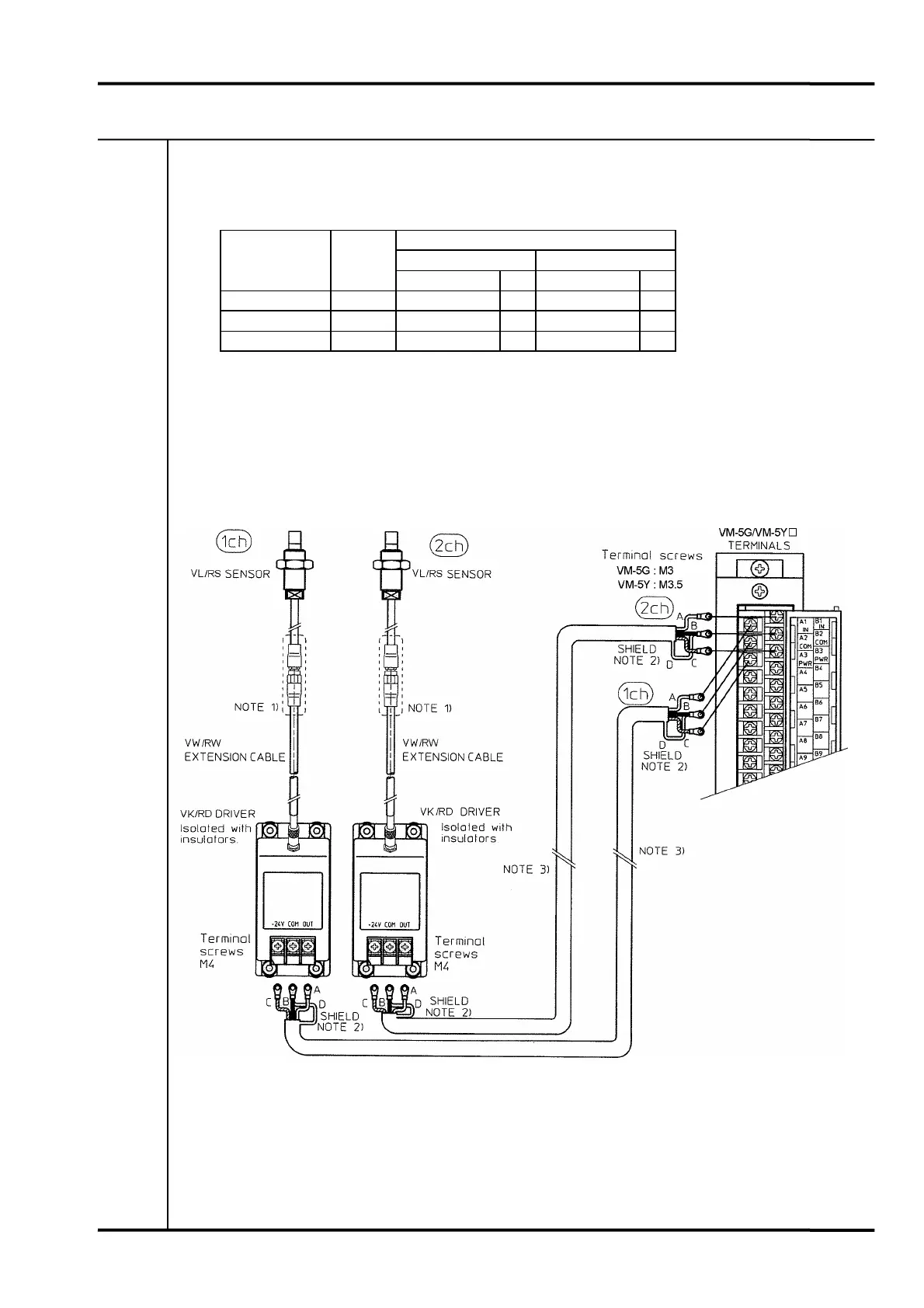

NON-INTRINSIC SAFETY EXPL
OSION-PROOF CONSTRUCTION
4-2-1
MODEL VK, MODEL RD AND VM-5G OR VM-5Y1,2,3
Connected terminals
CH1 CH2
Signal name
Wire no.
Terminal name
No.
Terminal name
No.
Output
A
IN A1
IN B1
Common, Shield
B, D
COM
A2
COM
B2
Power
C
PWR A3
PWR B3
15
17
Table of Contents
Default Chapter
6
Table of Contents
6
Interconnection
11
Intrinsic Safety Explosion-Proof Construction
12
Non-Intrinsic Safety Explosion-Proof Construction
16
Description of Functions
26
Display
26
Speed Relay Functions
26
Ok(Input Abnormal)Alarm
26
Firstout Display
27
Bypass Function
27
Power on Timer Mode
27
Ok Alarm / Speed Relay Mode
28
Ok Alarm / Speed Relay Reset Mode
28
Monitor Output / Pulse Output
28
Recorder Output
28
Self-Diagnostic Function
28
Power Sequence
29
Timed Ok Channel Defeat
29
Trigger Function
29
Peak Hold Function
29
6 Description of Parts
30
Description of Front Panel/Side View
30
Description of Parts
31
Description of Lcd Display
32
Parameter Setting
33
Withdrawal of Face Plate
33
Basic Key Operations
35
Dip Switch Setting
36
Parameter Setting
37
Parameter Setting
46
Trigger Level and Hysteresis
54
Gear Tooth Form Suitable for Detection
56
Trigger Mode Selection
58
Auto Trigger Mode Selection
59
Manual Trigger Mode Selection
60
Determination of Hysteresis
61
Hysteresis Setting
62
Monitor Output / Pulse Output Selection
63
Speed Relay Hysteresis
64
Functional Diagram
65
Block Diagram
65
Functional Block Diagram
66
Maintenance
68
Recommended Maintenance Equipment
68
Verification of Ok(Input Abnormal Alarm) Operation
69
Verification of Speed Relay Operation
71
Verification of Measured Value and Recorder Output
73
Adjustment of Measured Value and Recorder Output Zero Span
75
Replacement of Aluminum Electrolytic Capacitor
78
Replacement of Lcd Unit
79
Lcd Contrast Adjustment
80
Lcd Backlight Adjustment
81
Troubleshooting
82
Lcd Display Content Abnormal
82
Ok Display Flashes
83
Measured Value Abnormal
84
Speed Relay Does Not Operate
85
Erroneous Operation of Speed Relay
86
Ok (Input Abnormal) Alarm Does Not Operate
86
Recorder Output
86
Site Inspection
87
Verifications in Stopped Condition
87
Verification in Turning Condition
88
Verifications During Operation
89
Checks Prior to Operation
90
