4. INTERCONNECTION VM-5S
-11-

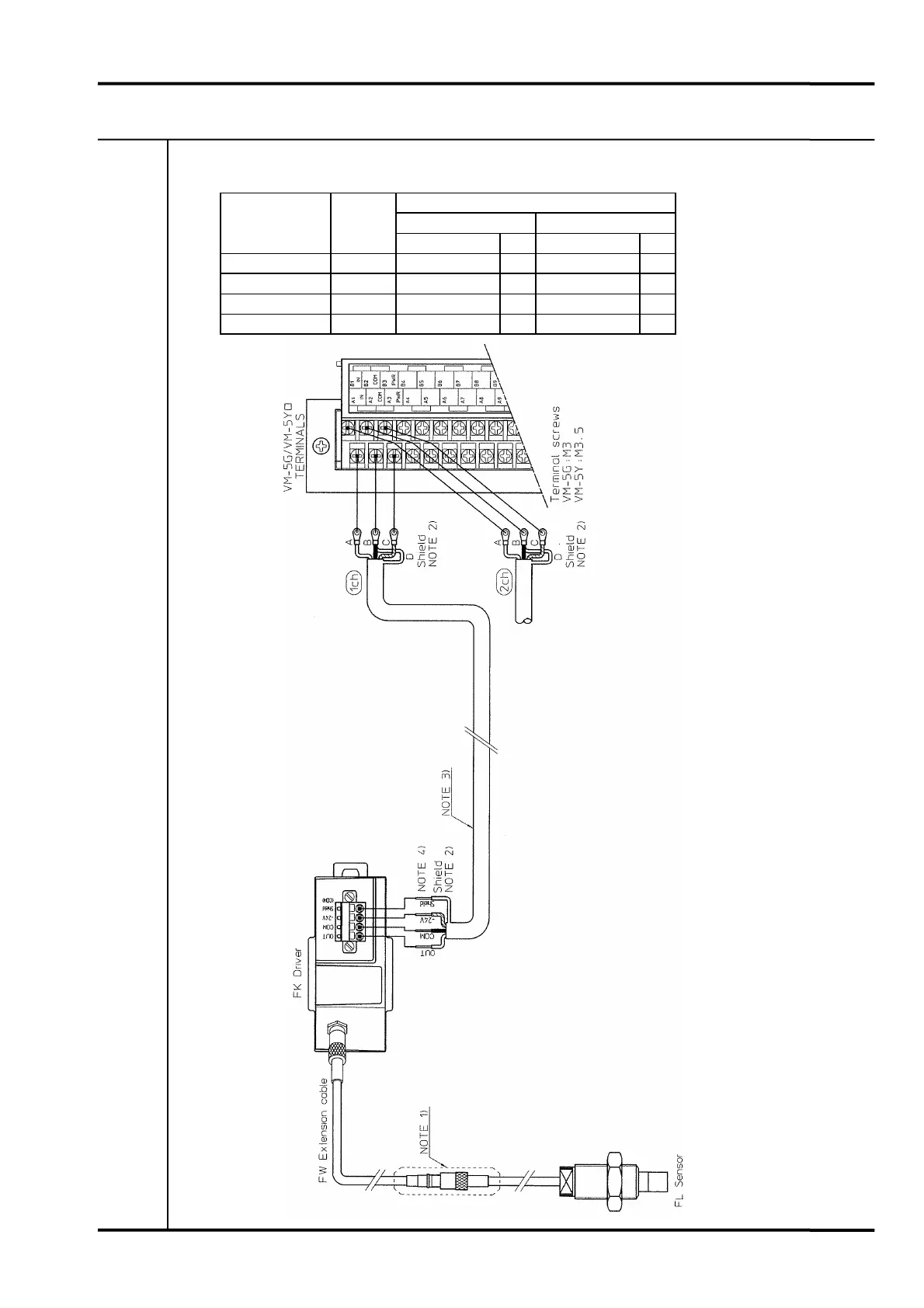

4-2-2 MODEL FK AND VM-5G OR VM-5Y1,2,3
Connected terminals
CH1 CH2
Signal name Wire no.
Terminal name No. Terminal name No.
OUT A IN A1 IN B1
COM B COM A2 COM B2
-24V C PWR A3 PWR B3
Shield (COM) D COM A2 COM B2
