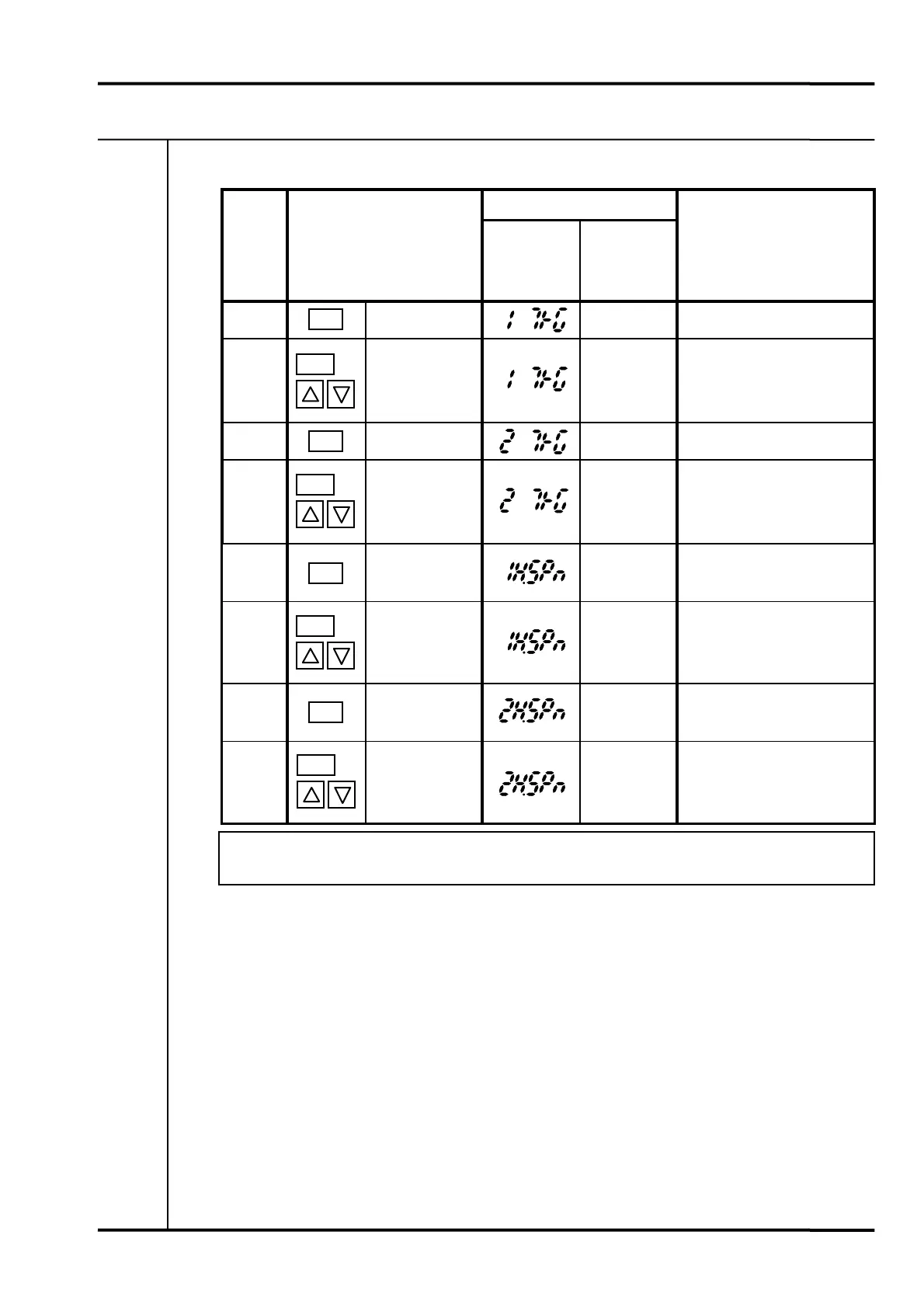

7. PARAMETER SETTING VM-5S
-45-
LCD display
Proce-
dure
Key operation
MEAS 1
(Parameter)
MEAS 2
(Parameter
Status)
Remarks
9
Press SET key.
Present status
Specify CH1 trigger level.
10
Press CHECK
and UP or
DOWN key.
0.0 to 24.0V
(Absolute value
displayed)
Fix digit with CHECK key
and specify value with UP or
DOWN key.
11
Press SET key.
Present status
Specify CH2 trigger level.
12
Press CHECK
and UP or
DOWN key.
0.0 to 24.0V
(Absolute value
displayed)
Fix digit with CHECK key
and specify value with UP or
DOWN key.
13
Press SET key.
Present
measured
value
Specify CH1 measured value
span adjustment.
14
Press CHECK
and UP or
DOWN key.
Present
measured
value
Fix digit with CHECK key
and specify value with UP or
DOWN key.
15
Press SET key.
Present
measured
value
Specify CH2 measured value
span adjustment.
16
Press CHECK
and UP or
DOWN key.
Present
measured
value
Fix digit with CHECK key
and specify value with UP or
DOWN key.
• The speed relay output is cut off while setting the trigger level.
SET
CHK
SET
SET
CHK
SET
CHK
CHK
