Shinko DCL-33A Communication Instruction Manual

2
USB communication
cable CMC-001-3
(sold separately)
Host computer
USB port

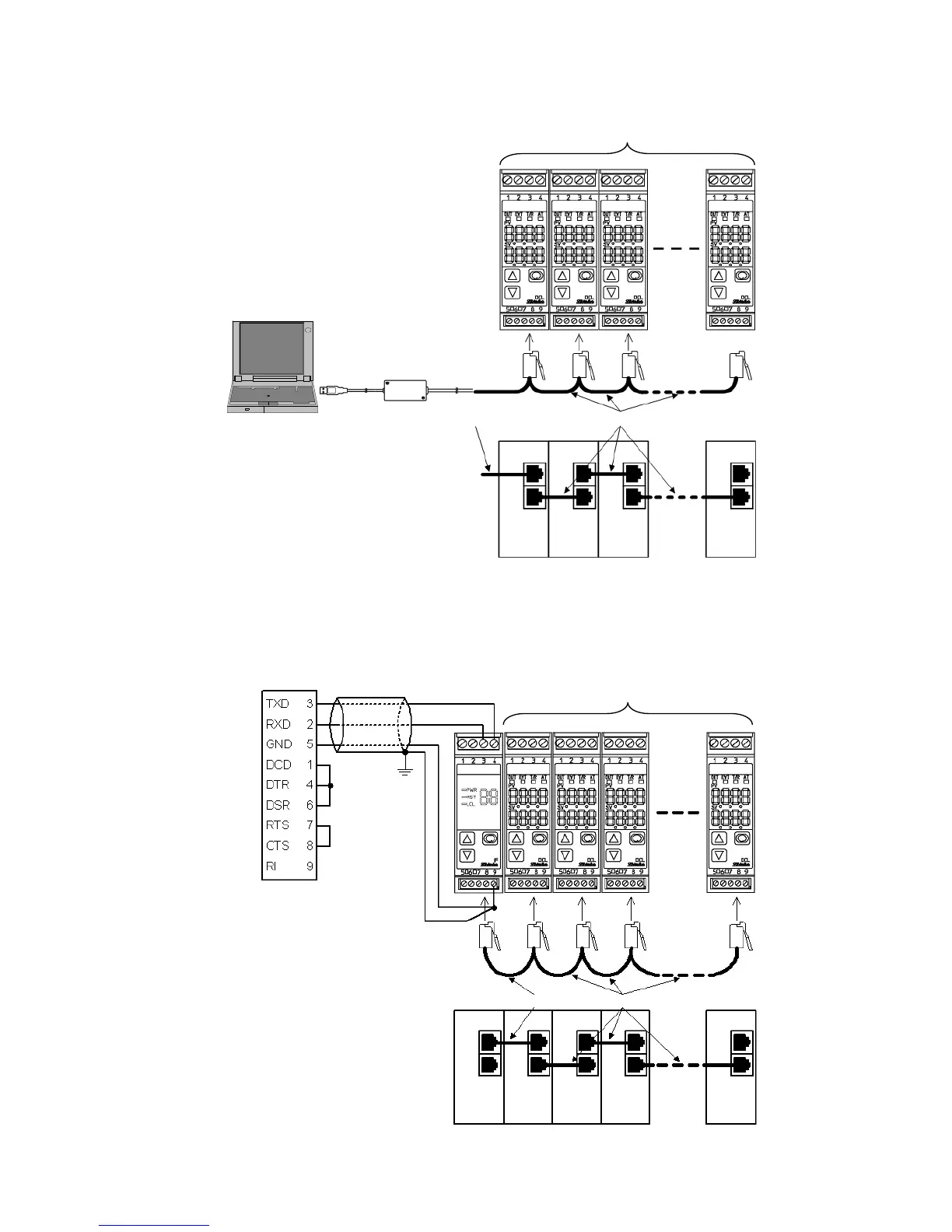

2. Wiring
2.1 When Using USB Communication Cable CMC-001-3 (Sold Separately)
(Fig. 2.1-1)
2.2 When Using Communication Converter IF-400 (Sold Separately)
• D-sub 9-pin connector
(Fig. 2.2-1)
DCL-33A bottom
CMC-001-3
CDD or CPP (sold separately)
DCL-33A (Max. 31 units)
Host computer
D-sub 9-pin computer
DCL-33A (Max. 31 units)
IF-400
(sold separately)
CDD or CPP (sold separately)
Bottom of IF-400, DCL-33A
Shield
wire
FG
