Shockwave S5 - CHANGING SUSPENSION MODULE HEIGHT

11
Blue
Spacer
10in
251mm
Rear Mount
No
Spacer
Front Mount
8in
201mm
Red
Spacer
Mid Mount
9in
235mm

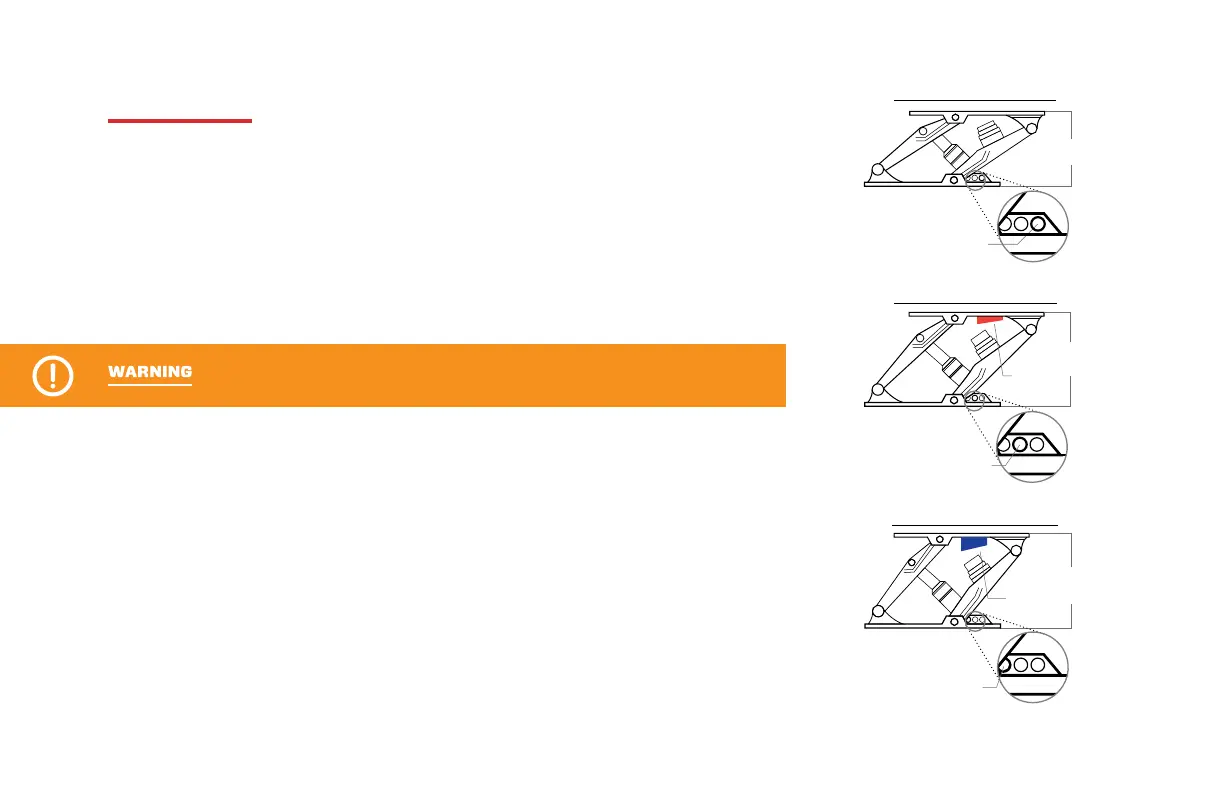

8-inch Height Configuration
9-inch Height Configuration
10-inch Height Configuration
• The height of your suspension module
can be changed by 1-inch (25mm) to
Mid Mount or 2-inch (50mm) to Rear
Mount.
• Remove the bolt from the Front Mount
and place it into either the Mid Mount
or Rear Mount position.
• For the Mid Mount setting,
install the red spacer to the top
module plate using the supplied
fastener.
• For the Rear Mount setting,
install the blue spacer to the top
module plate using the supplied
fastener.
The SHOCKWAVE S5 comes with the shock absorber in the front mount position
which is the lowest height configuration.
If a higher installation height is required you will need to install one of the two spacers
provided. These are required to properly change the height of your suspension
module. Use the procedure below to change the suspension
module height.
Do not change the suspension module height without using the appropriate spacer.
CHANGING SUSPENSION MODULE HEIGHT
