Shockwave S5 - STEPS TO SET UP THE SUSPENSION MODULE

9
1 Turn the 3-position lever at the base of the shock
absorber to the SOFT position. See page 10.

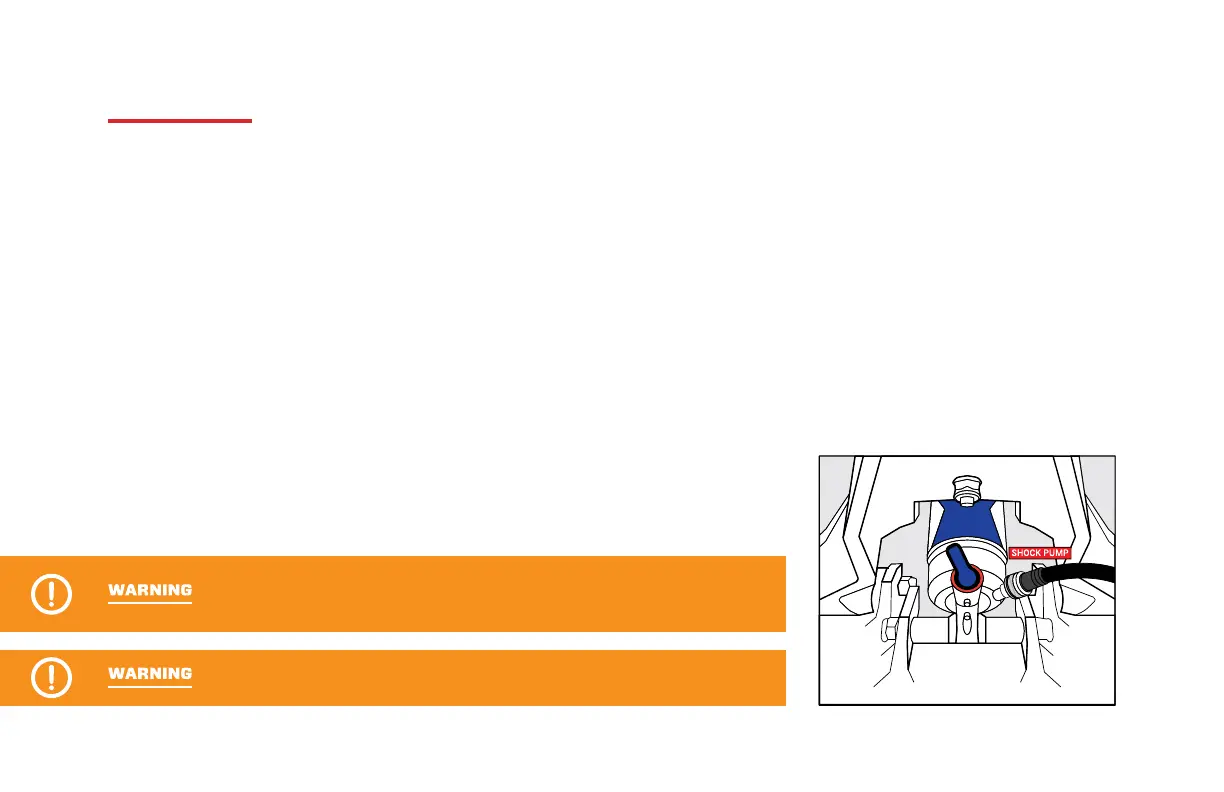

2 Install the pump and pressurize the shock absorber
to 100 PSI then remove the pump.
3 Cycle the shock absorber by bouncing on the seat
5 times. This will equalize the positive and negative
air chambers.
4 Use the pump to pressurize the shock absorber
(in PSI) to match the weight in pounds (lbs) of the
occupant. Remove the pump before step 5.
5 Cycle the shock absorber by bouncing on the seat
5 times.
6 Push the red O-ring against the shock body.
7 Gently sit on the seat.
8 Gently out of the seat.
9 Check the sag percentage marking on the shock absorber
shaft. Sag is correct if the red O-ring sits at
the 20% mark.
10 If the sag value is not at the desired level, inflate
or deflate the shock absorber in 10 PSI increments
and repeat steps 5-8 until the desired sag level
is achieved.
Do not sit on the seat with the SHOCKWAVE S5 Pump attached! Damage will
occur to the shock and pump. Note, SHOCKWAVE S5 Pump sold separately.
Do not exceed 350 PSI. The maximum shock absorber pressure.
