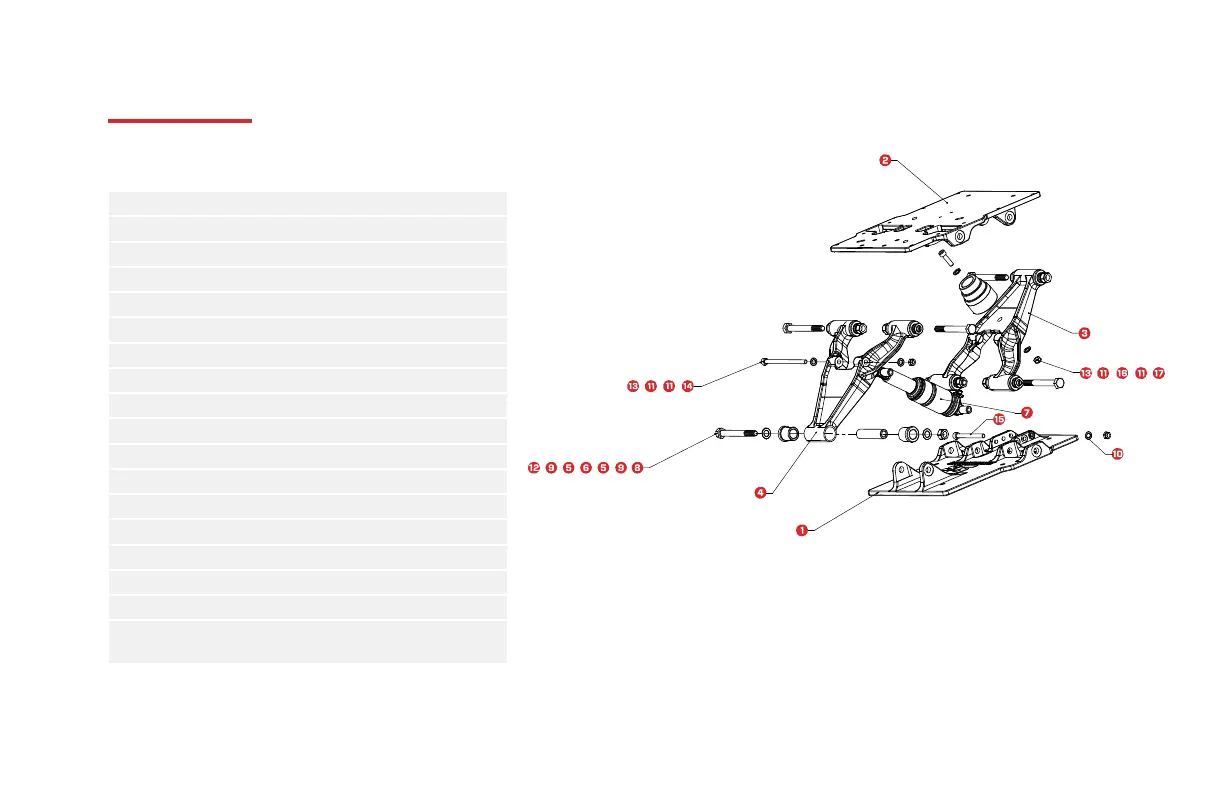

Shockwave S5 - SUSPENSION MODULE DRAWING (SW-05026)

15
ITEM QTY PART NO. DESCRIPTION
1 1 SW-04963 S5-PRO BOTTOM-PLATE
2 1 SW-04964 S5-PRO TOP PLATE
3 1 SW-04938 S5 CAST A-ARM FORWARD
4 1 SW-04937 S5 CAST A-ARM AFT
5 12 SW-04747 S5 PIVOT BUSHING
6 6 SW-04748 S5 BUSHING SPACER
7 1 SW-04867 SHOCK ABSORBER
8 6 FA-M12X110-HH-CS S5 BOLT HEX HEAD
9 12 FA-1/2-FW-AN960C816L WASHER, FLAT
10 2 FA-5/16-FW-AN960C816L WASHER, FLAT
11 4 FA-3/8-FW-AN960C816 WASHER, FLAT
12 6 FA-M12LN-S5 NUT, NYLOCK
13 3 FA-M8LN-S5 NUT, NYLOCK
14 1 FA-M8X130-AS-C5-NC-SS SCREW, SOCKET, HEADCAP
15 1 FA-M8X85-AS-C5-NC-SS SCREW, SOCKET, HEADCAP
16 1 SW-04754 BUMPSTOP
17 1 FA-M8X30-AS-CS-NC-SS
SCREW, SOCKET, HEADCAP
