Shopsmith MARK V Model 520 User Manual

SM - 6
Summary Manual Mark V Model 520
2
4
5
7
12
13
14
15
16
18
19
21
22
1
8
11
9
6
3
20
11
10
17
7. Headrest– Holds the tie bar.
8. Headrest Lock– Secures the Mark V in the horizon-
tal position.
9. Power Mount– Holds the extension table and the
major accessories (Shopsmith Bandsaw, Jointer, Belt
Sander, Scroll Saw, Strip Sander and Planer).
10. Base Mount– Holds the extension table and lathe
tailstock.
11. Accessory Mount Locks– Secure the extension table,
Major Accessories, and the lathe tailstock.
12. Main Spindle– Mounts the saw blades, sanding
discs, and other accessories.
13. Quill– Extends and retracts up to 4-1/4".
14. Quill Lock– Secures the quill.
15. Quill Feed Lever– Extends the quill and main
spindle out from the headstock.
16. Quill Feed Stop– (hidden from view) Stops the quill
at predetermined distances out from the headstock.
17. Power Switch– Turns the Mark V on and off. Has a
removable safety key to prevent unauthorized use
of the Mark V.
18. Headstock Lock– Secures the headstock on the way
tubes.
19. Speed Dial– controls the speed of the main and
auxiliary spindles. ONLY turn the speed dial when
the Mark V is running. Otherwise, you will damage
the speed changing mechanism. Then turn the speed
dial to "Slow" after every operation, then turn off
the Mark V.
20. Auxiliary Spindles– The upper spindle powers the
Bandsaw, Belt Sander, Strip Sander and Thickness
Planer. The lower spindle powers the Jointer and
Scroll Saw.
21. Logo Cover– (hidden from view) Allows access to
the wiring and speed changer mechanism.
22. Belt Cover– Allows access to the belts and sheaves.
Terms to Know
Right
Side
Left Side
The Shopsmith Mark V will perform all the func-
tions of a table saw, disc sander, drill press, hori-
zontal boring machine, and wood lathe.
Basically, the Mark V is a rigid bench that holds
the headstock and the worktable system. The
upper part of this bench can be positioned hori-
zontally or vertically. The headstock and the
worktable slide independently and are positioned
along the upper tubes.
You can mount accessories to the headstock and
operate them at different speeds. The worktable
can be positioned over, under or beside these
accessories to hold stock at various angles. In this
way, the bench, headstock, worktable, and acces-
sories combine to make a unique, capable and
versatile woodworking system.

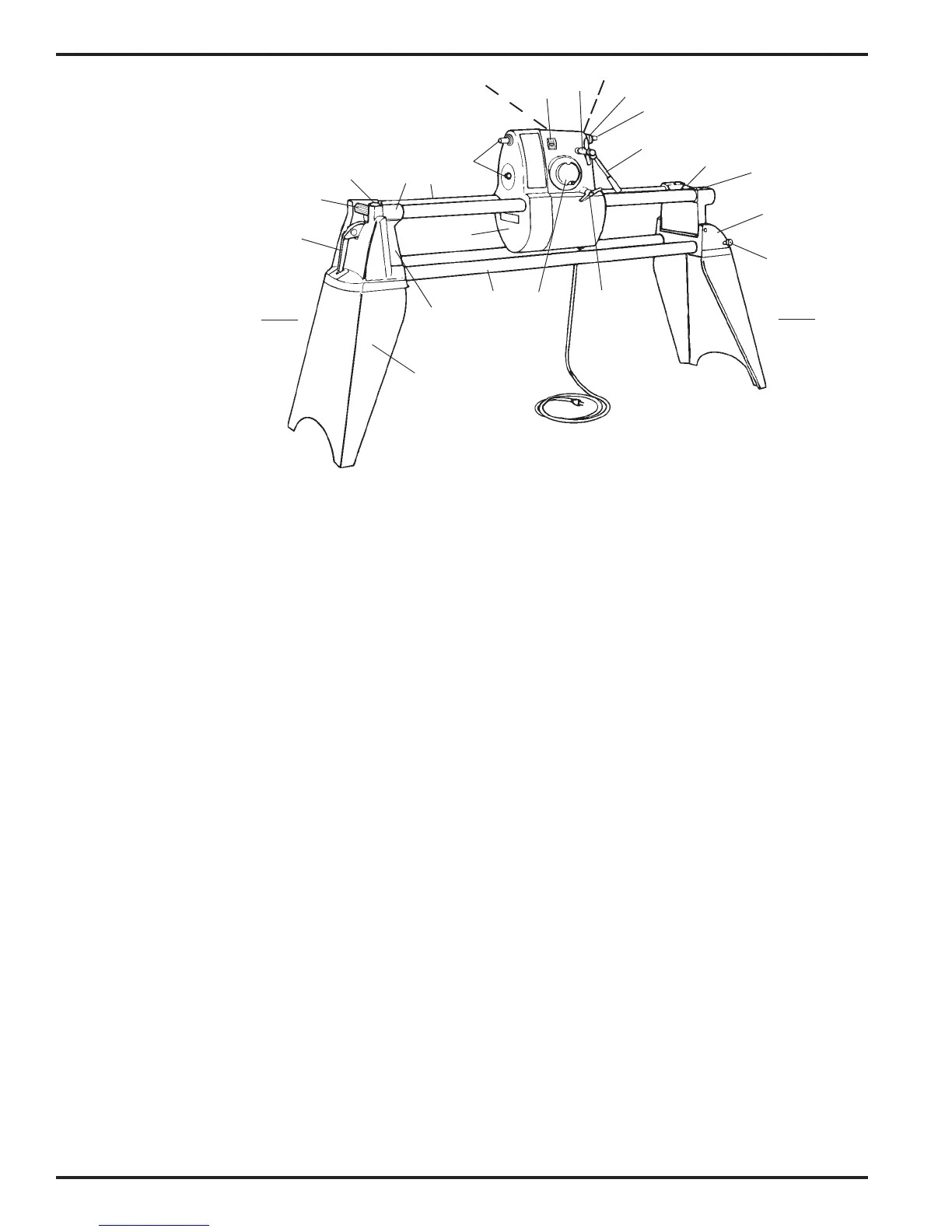

Before you proceed, familiarize yourself with the
Mark V’s basic parts:
1. Legs -- Support the way tubes and bench tubes.
2. Bench Tubes – Hold the Mark V rigid.
3. Way Tubes – Allow the headstock and carriage to
slide.
4. Base – Allows the way tubes to pivot to either a
horizontal or vertical position.
5. Base Lock– Secures the Mark V in the vertical
position.
6. Way Tube Tie Bar– Holds the free end of the way
tubes.
