2.2. Composition.
1 Fan protection net
2 Body
3 display
4 Refrigerant charge valve
5 Pressure manometer
6 Water outlet
7 Power cord
8 Water inlet
9 Heat exchanger
10 Fan
11 Compressor
12 Pressure sensor
13 Heat exchanger
14 Water sensor
15
Four way valve
7
16
Ambient sensor
8
17
Plate heat exchanger temperature sensor
9

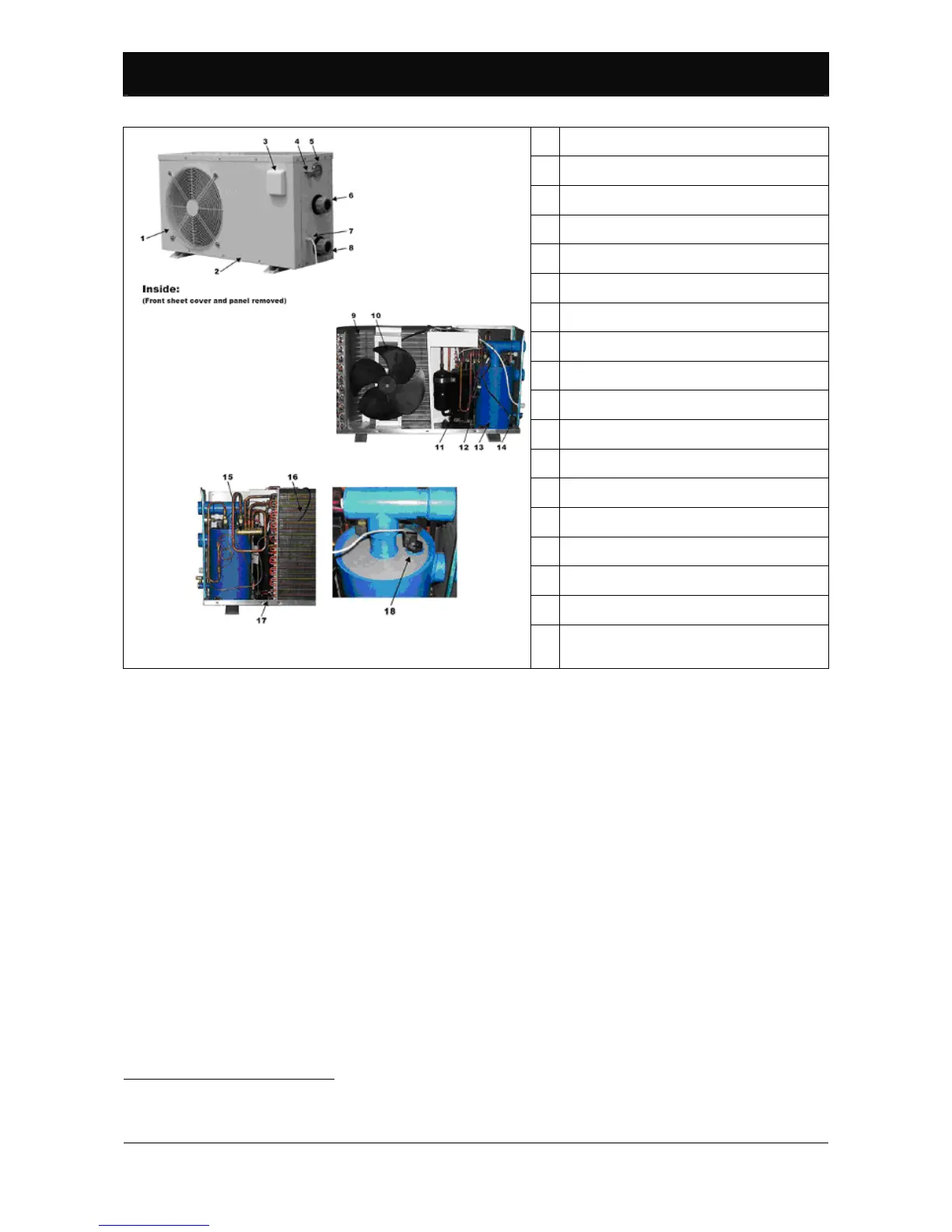

Figure 1: main heat pump parts.
18 Flow sensor
7
Not included in model BP-xxWS-B (xx=35, 50).
8
Not included in model BP-xxWS-B (xx=35, 50).
9
Not included in model BP-xxWS-B (xx=35, 50).
