Installation
Installing the Lamp
The Showtec Giant uses the HMI 575 (ordercode 80901O, 80901P) reflectorbulb as manufactured by all
popular manufacturers. Use only the appropriate lamp for your unit.
Note that, product versions that use other lamps, may be offered in the future. Check your product
specification label for information.
Always disconnect from electric mains power supply before changing lamps.
The lamp has to be replaced when it is damaged or deformed due to the heat.
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device
was not designed for.
Damages caused by non-observance are not subject to warranty.
Procedure :
1. Loosen the 3 screws on the metal housing.
2. Gently open the small metal housing. Loosen the 4 screws and remove the small metal plate, then take
out the lamp.
3. Unscrew the screw on the bottom and the screw on top of the lamp. Read lamp instructions. Do not touch
the lamp bulb glass. (See Figure 3.). Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe
off the glass with a clean, lint-free towel and rubbing alcohol.).
4. Insert the lamp into the lamp socket.
5. Put the small metal housing back and fasten the 3 screws snugly.
1 2 3

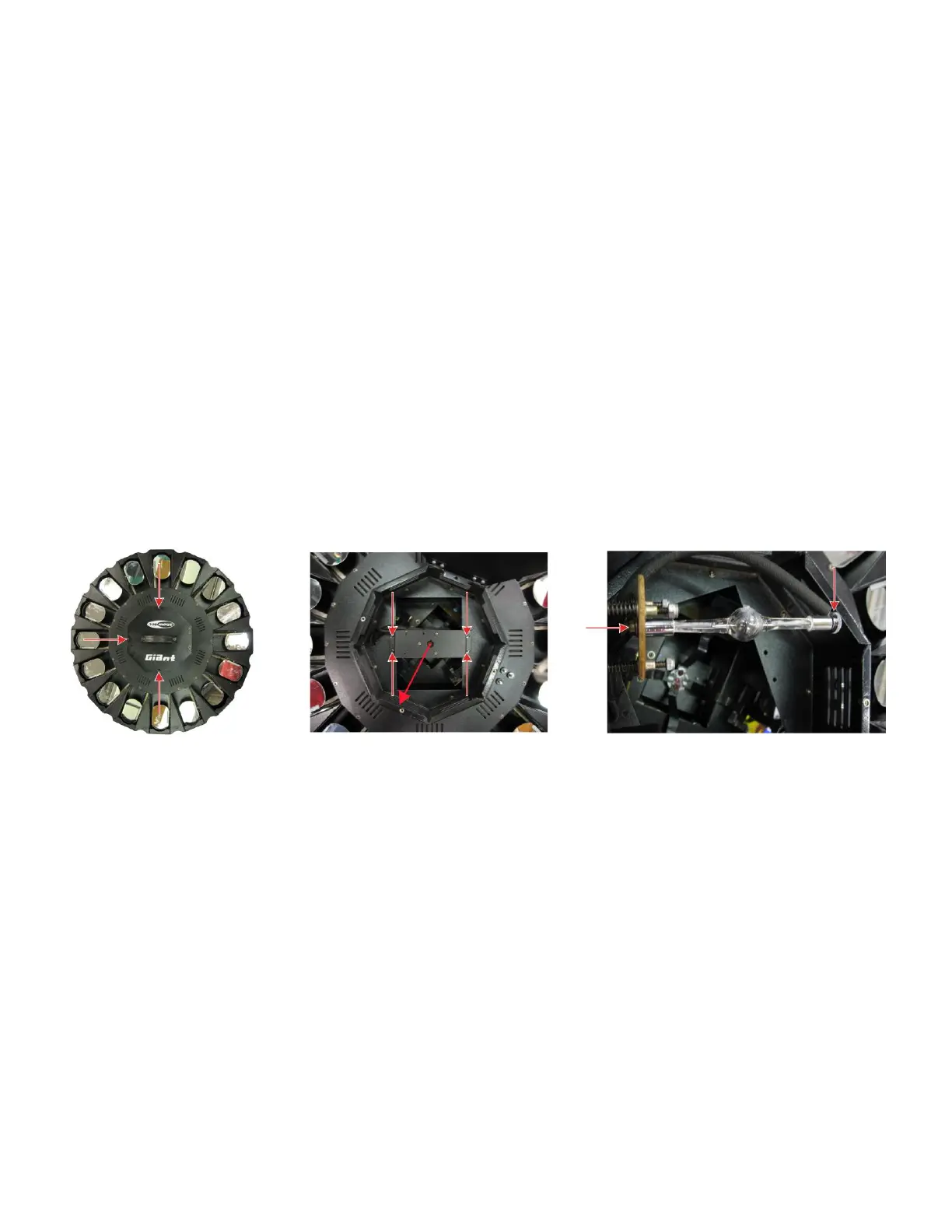

Fig. 3
